Accelevision LCDSW Product Highlights

  • 4-Way intelligent video switcher for controlling front, rear, and blind-spot cameras
  • 1 positive trigger per input
  • Dual outputs: (1) monitor and (1) DVR
  • Auto default to 360 vehicle driving mode
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

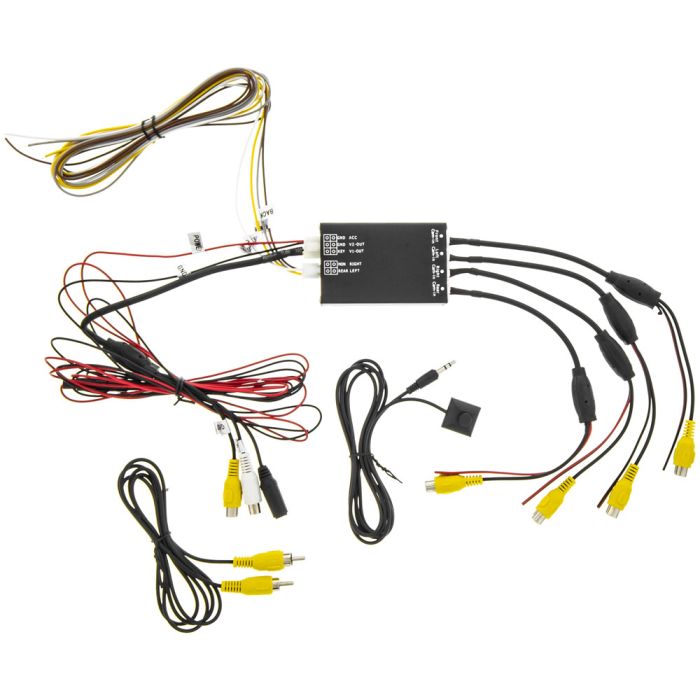

Unit includes: 4-way video switcher, Monitor output cable, (4) Camera input cables, (1) Main power, (1) Rrigger harness, (1) RCA Video cable, (1) single button controller, and Instruction manual

Accelevision LCDSW 4-Source Quad Camera Auto Switcher
    Features:
  • 4-Way intelligent video switcher for controlling front, rear, left, and right cameras
  • 1 positive triggers per input to easily hook to any signal (accepts constant or pulsed signals)
  • Auto default to 360 vehicle driving mode
  • Auto switching to 3 camera mode on reverse and turn signal input
  • Positive Input triggers accept input voltages in the range of 2 volts to 12 volts
  • Monitor output with 6 different camera layouts
  • DVR recorder output for 1/4 screen quadrant view all-time
    Camera layouts:
  • Single button controller for 6 different camera layouts
  • Two camera mode: Left and Right or Front and Rear
  • Quad Screen: 1/4 quadrant (4 cameras) even distribution
  • Quad Screen: 1/4 quadrant (4 cameras) front and rear camera large distribution left and right small distribution
  • Quad Screen: 1/4 quadrant (4 cameras) left and right camera large distribution front and rear small distribution
  • Tri Screen: 1/2 screen (3 cameras) left and right camera large distribution front and rear small distribution
    Inputs and Outputs
  • 4 - Video inputs
  • 4 - Positive trigger inputs (9Vdc - 12 Vdc)
  • 1 - 12 Vdc power input
  • 1 - 12 Vdc accessory power input
  • 1 - Ground input
  • 1 - Button controller input
  • 1 - Video output to LCD Monitor
  • 1 - Video output to DVR Recorder
    Wire connections
  • Red - Constant (+) Powers the video switcher
  • Blue - Accessory (+) turns the video switcher on
  • White - Right camera input trigger (+) will trigger right camera input
  • Grey - Back camera input trigger (+) will trigger back camera input
  • Yellow - Left camera input trigger (+) will trigger left camera input
  • Brown - unused
  • Black - Ground (-)

Technical Specifications

Manufacturer Accelevision
Part Number LCDSW
Audio Video inputs 4 Video Input
HDMI input No
USB input No
Warranty 1 Year
Audio Video Outputs 2 Video outputs
TV Tuner No Tuner
Wireless Remote Control Wired Remote
UPC Code 736836550883
