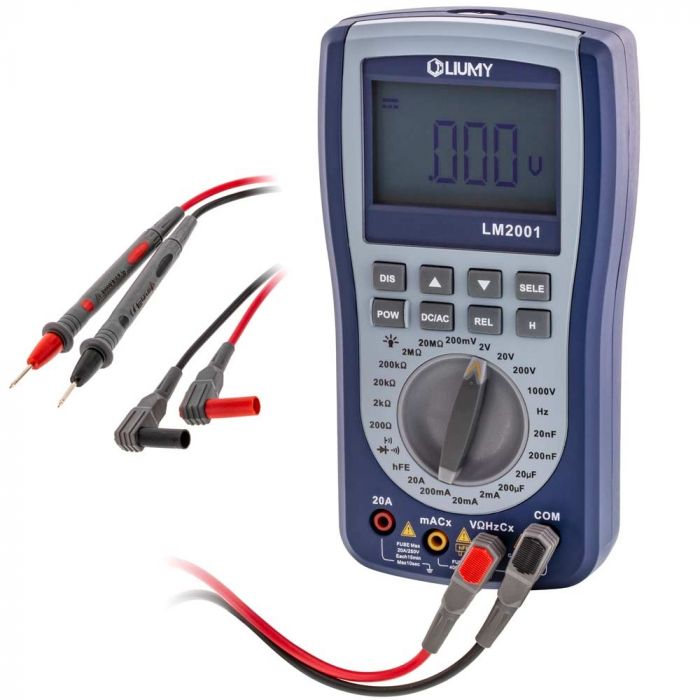

LIUMY LM2001 Professional Handheld LED Oscilloscope Multimeter
$117.99
Out of stock
SKU
LM20011LM2001
Expert Knowledge
Talk to a specialist
- Professional Handheld LED Scopemeter Oscilloscope
- Applicable to the workplace such as family, school, and factory
- DC/AC voltage /current, resistance, capacitance, frequency, diode / continuity test
- 25 Watts per bulb
- DC voltage 1000V, AC voltage 750V, DC/AC Current 20A, Resistance 20M&Omegat
- Display hold, storage / readout up to 10 waveforms and 100 sets of measurement values
Unit includes: Multi-meter, positive/negative test leads, hFE tester, and instruction manual
LIUMY LM2001 Professional Handheld LED Oscilloscope Multimeter
LIUMY LM2001 Professional Handheld LED Oscilloscope Multimeter
- Features:
- LIUMY Professional Handheld LED Scopemeter Oscilloscope
- Can choose to automatically shutdown or continuous operation
- Applicable to the workplace such as family, school, and factory
- DC voltage 1000V, AC voltage 750V, DC/AC Current 20A, Resistance 20M&Omegat
- Capacitance 200μF, Frequency 200kHz, Diode / Continuity Test, Meet all testing needs
- Dedicated Chip, the automatic waveform capture function
- Display hold, storage / readout up to 10 waveforms and 100 sets of measurement values
- Features include DC/AC voltage /current, resistance, capacitance, frequency, diode / continuity test
- Specifications:
- Display: 128x64 dot-matrix graphic LCD
- Analog Broadband: 0 ~ 10kHz
- DC voltage: 0mV ~ 1000V ± (0.75% rdg + 10dgt)
- AC voltage: 0 mv ~ 750V ± (1.0% rdg + 10dgt)
- DC Current: 0mA ~ 20.00A ± (1.2% rdg + 10dgt)
- AC current: 0mA ~ 20.00A ± (1.5% rdg + 10dgt)
- Resistance: 0W ~ 20.00MW ± (1.0% rdg + 5dgt)
- Max. Input Voltage: 80Vpp（x1 probe）400Vpp(x10 probe)
- Capacitance: 0nF ~ 200.0μF ± (2% rdg + 10dgt)
- Frequency: 0kHz ~ 200kHz ± (1.0% rdg + 5dgt)
- Diode test: open circuit voltage of about 1.5 V, maximum test current of about 1.5mA
- Continuity Test: determine resistance: about 30
- Remote control Detection: 38kHz carrier frequency
- Transistor Magnification: 30 ~ 1000 (annex)
- Fuse rating: Φ5 × 20,250mA / 250V
- Battery: 4 x 1.5V AA battery (included)
- Storage capacity: DMM 100 groups of data, waveform 5 group records
- Dimensions: 186mm * 100 mm * 45mm
- Weight: 370g (without other accessories)
| Manufacturer | DSO |
|---|---|
| Part Number | LM2001 |
| UPC Code | 6289979457105 |
| Return period | 30 days |
| Exchange period | 30 days |
