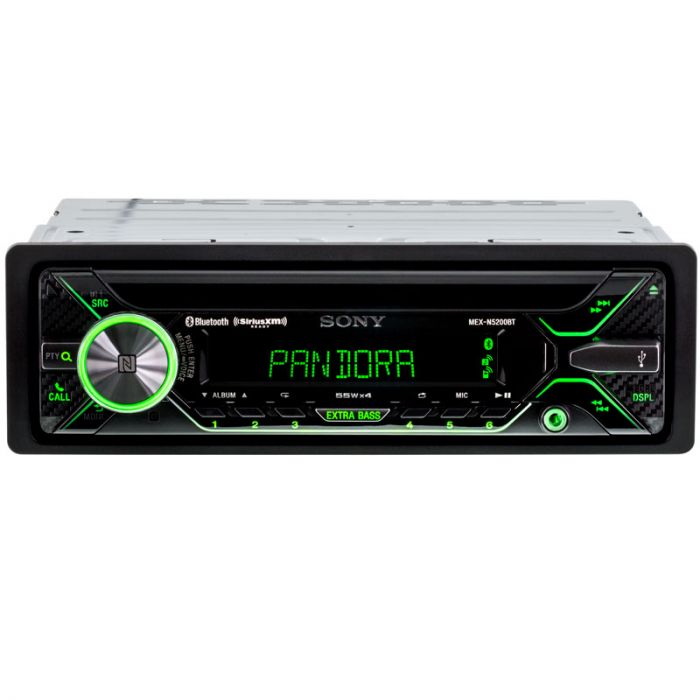

DISCONTINUED - Sony MEX-N5200BT Single DIN CD Car Stereo Receiver with Bluetooth and SiriusXM Ready
- Single DIN In-Dash CD receiver
- 55 Watts x 4 High power amp
- Built in Bluetooth and NFC Pairing
- Full detachable face-plate for extra security
- Front USB input for thumb-drives
- AM/FM tuner
- 10-band EQ
- SiriusXM radio ready
- Steering wheel control input
- 3 pairs of 2V preamp outputs (Front, Rear and Subwoofer)
- Features:
- Single DIN In-Dash CD receiver
- High power 4-channel amplifier with Output: 4 channels x 55 watts Peak and 4 channels x 17 watts RMS (CEA rated)
- Full detachable face-plate for extra security
- Multi-Segmented 13 Digital 2 Line LCD Display
- Variable button illumination with 2 zone illumination to match your factory button color
- Button Illumination has Sound and color synchronization for DJ like effects
- Dimmer and brightness control
- Built in Bluetooth and NFC Pairing
- Voice control from smartphone via Bluetooth connection
- Siri Eyes Free voice control for iphone
- Carbon Fiber faceplate for extra clean look
- Displays CD text and MP3 ID3 Tag including title, artist & album
- Steering wheel control input
- Front USB input for thumb-drives
Media playback features:
- Plays DVD, VCD, CD-RW, CD-R, DVD-R, DVD-RW, MP4, FLAC, MP3 and WMA
- Electronic shock protection with built in buffer
- MP3/WMA/iTunes AAC/FLAC Audio Playback on CD/USB
- MP3 ID3 tag information, display artist and song information
- FLAC Audio Playback for high definition audio downloads (Up to 48kHz/16bit)
- Pandora® Radio App Compatible with iOS, Android and Blackberry through Bluetooth
- Sony SongPal App Compatible Andorid or iOS
- Quick-BroZer search function provides quick and easy music access
Audio features:
- 10-band parametric equalizer with 10 preset and custom options (R and B / Dance / Rock / Pop / Hip-Hop / Electronica / Jazz / Soul / Country / Custom)
- Clear Audio + Reproduces sound by optimizing the digital signal
- Intelligent Megabass: Level1 / Off
- Manual EQ with 32 Hz / 63 Hz / 125 Hz / 250 Hz / 500 Hz / 1 kHz / 2 kHz / 4 kHz / 8 kHz / 16 kHz ±6dB
- High-Pass filter with variable slopes and crossover frequencies (Adjustable: 50 Hz / 60 Hz / 80 Hz / 100 Hz / 120 Hz) and (Adjustable slopes from -6dB / -12dB / -18dB / -24dB)
- Variable subwoofer level control (-10dB to +10dB) with selectable Low-Pass digital crossover filter (Adjustable from 60 Hz / 80 Hz / 100 Hz / 120 Hz) with variable slopes (Adjustable from -6dB / -12dB / -18dB)
- Subwoofer phase control 0° - 180°
- DSEE and ClearAudio+ provide outstanding sound quality while revitalizing and extends the audio frequencies typically lost during compression
- ClearAudio+ renders incredibly vibrant sound with enhanced bass and crystal clear highs
- Digital time alignment with independent front, rear, and subwoofer delay
- 3-mode Rear Bass Enhancer, enhances the bass sound by applying a low pass filter setting to the rear speakers
- Subwoofer direct connection - You can use the subwoofer without a power amplifier when it is connected to the rear speaker lead.
Tuner features:
- Includes AM & FM tuner with 30 preset stations memory
- RDSB (Radio data service) Tuner
- SiriusXM radio ready with SXV300 Sirius XM tuner
- SiriusXM radio replay, replay up to the last 60 minutes of your current channel
- SiriusXM radio SmartFavorites - automatically buffers the broadcast audio content of SmartFavorites channels in the background so you can rewind or replay any missed content
- Bluetooth features:
- Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- NFC: Near Field Communication auto pairing
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- External microphone with 10 foot cord for optimal placement
- Bluetooth 3.0 certified
- Bluetooth 2.1+ EDR certified
- Siri Eyes Free voice support
- NFC for easy pairing of Bluetooth devices
- Full voice recognition with SMS text response
Inputs and outputs:
- 3 - 2V preamp outputs (Front, Rear and Subwoofer)
- 1 - 3.5mm front audio input for connection to external source
- 1 - SiriusXM radio tuner input
- 1 - Front USB connection
- 1 - Rear microphone input
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7"W x 7-1/8"D x 2"H
Manufacturer | Sony |
---|---|
Part Number | MEX-N5200BT |
Chassis Size | Single DIN |
Illumination color | Full Color |
Faceplate features | Detachable face plate |
Disc Playback | CD |
Built in Bluetooth | Built in Bluetooth |
NFC (Near Field Communication) | No |
HD Radio | No |
Radio Data Service - RDS | Yes |
Satellite Radio | Sirius XM Ready |
Front mounted auxiliary input | 3.5 mm audio input |
USB input | Yes |
SD Card input | No |
Audio Formats | FLAC, Mpeg-3, WMA |
RCA Pre-amp Audio outputs | 3 Pairs (Front, Rear, Sub) |
Preamp voltage | 2 volts |
Steering Wheel Control | Yes, requires external module |
Built in Crossover | High-pass, Low-pass |
Wireless Remote Control | Yes |
Warranty | 1 Year |
UPC Code | 027242897519 |
Return period | 30 days |
Exchange period | 30 days |
