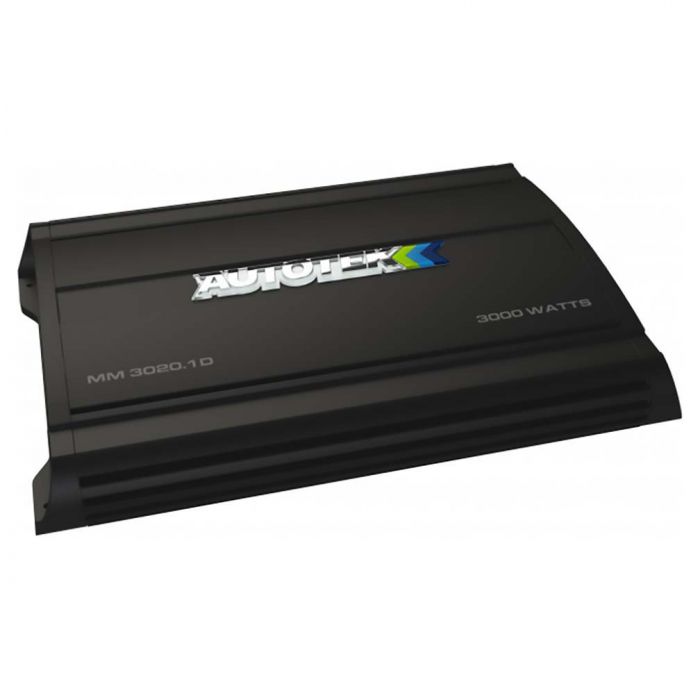

Autotek MM3020.1D Mean Machine Series 3000W Class D Monoblock Amplifier
- 3000 Watt Class D Monoblock Amplifier
- 1-ohm / 2-ohm / 4-ohm stable
- 3000W x 1 @ 1 Ω
- 1500W x 1 @ 2 Ω
- 750W x 1 @ 4 Ω
- Remote Bass Control included
Autotek MM3020.1D Mean Machine Series 3000W Class D Monoblock Amplifier
-
Features:
- 3000 Watt Class D Monoblock Amplifier
- Amplifier will operate with 1 ohm, 2 ohm or 4 ohm loads
- High energy PWM (Pulse Width Modulated) power supply
- Nickel-plated brass terminals allow for secure connection and resist erosion
- Full-range signal pass through output allows additional amplifiers to be run from the "output" RCA connections
- Power/Protect LED indicators
- 4 Gauge power wire recommended
- Remote Bass Control included
- Specifications:
- Frequency Response: 15 Hz - 150 Hz
- Signal to Noise Ratio: >95dB
- Total Harmonic Distortion: 0.05%
- Variable Low-Pass Filter: 40 Hz - 300 Hz
- Subsonic Filter: 10 Hz - 40 Hz
- Variable Bass Boost - 0 to +18 dB bass boost at 50 Hz
- Fuse: 80A x 1
-
Inputs and Outputs:
- 1 Pair RCA Low Level Inputs
- 1 Pair RCA Low Level Output
- Remote Bass Control Input
-
Max Power Output:
- Total Power Output: 2000 Watts
-
RMS Power Output:
- 3000W x 1 @ 1 Ω
- 1500W x 1 @ 2 Ω
- 750W x 1 @ 4 Ω
- Dimensions:
- Overall Dimensions: 2-1/4 inch (H) x 13-3/4 inch (L) x 9-7/8 inch (W)
Manufacturer | Autotek |
---|---|
Part Number | MM30201D |
Amplifier Topology Class | Class D |
Number of Channels | 1 Channel |
Total RMS Power at 1 ohm | 3,000.00 |
Total RMS Power at 2 ohm | 1,500.00 |
Total RMS Power at 4 ohm | 750.00 |
RMS Output per Channel (x1 at 2 ohms) | 1,500.00 Watts |
RMS Output per Channel (x1 at 1 ohms) | 3,000.00 Watts |
RMS Output per Channel (x1 at 4 ohms) | 750.00 Watts |
Total Peak Power Output | 3,000.00 (Watts) |
Amplifier Bridging | Not Bridgable |
Minimum Impedance in Bridged Mode | Not Bridgeable |
Minimum Impedance in Un-Bridged Mode | 1 ohm |
Strappable Amplifier | No |
RCA Pre-amp Audio inputs | 1 Pair |
RCA Pre-amp Audio outputs | 1 Pair |
Preamp voltage | 200 mV - 6 V |
Speaker level inputs | No |
Gain Control | Yes |
Bass Knob / Remote Gain | Yes |
Built in Crossover | Low-pass, Sub-sonic |
Cooling Fan | No |
Color | Black |
Warranty | 1 Year |
Recommended Power Wire Gauge | 4 Gauge |
Overall Height | 2.25 inches |
Overall Length | 13.75 inches |
Overall Width | 9.87 inches |
CEA2006 Compliant | No |
UPC Code | 806576228059 |
Return period | 30 days |
Exchange period | 30 days |
