Fusion MS-RA205 Waterproof Digital Marine Receiver with iPod/iPhone Support and Bluetooth Ready

Fusion MS-RA205 Waterproof Digital Marine Receiver with iPod/iPhone Support and Bluetooth Ready

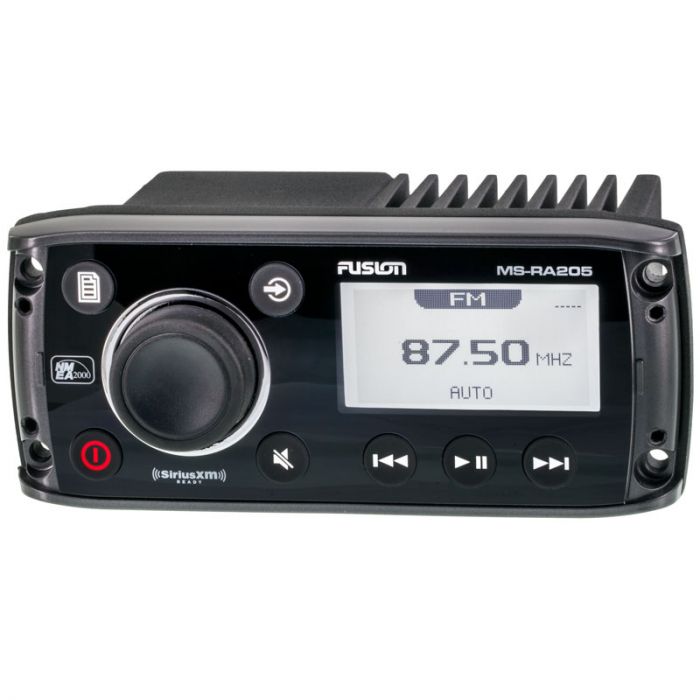

Fusion MS-RA205 Single-Din Waterproof Digital Marine Receiver - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Fusion MS-RA205 Product Highlights

Discontinued - Fusion MS-RA205 Waterproof Digital Marine Receiver with iPod/iPhone Support and Bluetooth Ready
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!


The Unit Includes: Marine Radio Unit, Mounting Hardware, Wiring Harness, Backbone Cable, Mounting Gasket, Instructions Manual

The MS-RA205 is the most advanced marine stereo. Fusion marine radios are not re-purposed car stereos that aren't designed to stand up to the harsh sun and water. These marine radios are designed from the ground up as dedicated marine stereo's. The MS-RA205 is a full featured marine stereo that delivers powerful dynamic sound that is crisp and clear in an easy to mount chassis. The MS-RA205 measures a mere 3-5/8" in depth and only 6-1/4" in width!

The radio is powered by an ARM-9 processor that is more commonly found in a phone than in a stereo. This heavy duty processor allows complete control of your iPod or iPhone with easy navigation on the large back-lit screen. You can easily select a song, artist, genre, or playlist.

Fusion MS-RA205 Waterproof Digital Marine Receiver


  • Smaller that DIN in-dash marine receiver
  • AM/FM, MP3 Digital Marine Receiver with true 360 degree waterproof design
  • Full Dot Matrix LCD display with multi-line display
  • 2-way iPod and iPhone connection allows control from the iPod / iPhone from the stereo (Requires MS-DKIPUSB Dock)
  • Bluetooth Capable with optional MS-BT100 or MS-BT200 Bluetooth module
  • IPx5 Water Resistant when mounted and gasket is used
  • Rear mounted full size USB. Directly connect and Apple device, Android device, or USB thumb drive to enjoy your entire digital library
  • SiriusXM ready requires SXV200V1 or SXV300V1 tuner
  • FUSION-Link compatible. FUSION-Link is an industry standard for entertainment integration developed by Fusion and supported by leading marine electronics manufacturers. Allowing certified Multi-Function Display (MFD) the ability to integrate with, and utilize FUSION's specialized entertainment functionality
  • FUSION-Link audio access system is supported by Garmin GPS map 6000 and 7000 series displays
  • NMEA 2000 compatible. NMEA 2000 is the marine standard for data communication between marine instruments. NMEA 2000 connects multiple instruments together (Sensors, Sonar, GPS, and Multi-Function Displays etc), regardless of brand for the purpose of sharing and/or displaying user selectable data with any or all other display instruments installed on the NMEA 2000 network.
  • Multi-zone control - Allow different volume levels in different locations on the vessel. Loud in the cockpit and quieter in the saloon. Supports custom names for zones
  • MTP Audio support - Select Android and Windows phone easily integrated with the fusion stereo
  • Die cast construction is superior and engineered to withstand the harsh marine environment
  • Built in VHF receiver with direct pre-sets, channel scan, and squelch adjust
  • Compatible with MS-NRX200i wired remote control
  • 3 year true-marine warranty

Power Output:

  • Peak: 50 watts x 4 channels
  • RMS: 25 watts x 4 channels

Media playback features:

  • Optional Bluetooth Audio Streaming
  • MP3 / M4A / FLAC audio playback
  • iPhone / iPod connectivity directly via USB or through option waterproof dock MS-UNIDOCK
  • Made for iPhone 4s, iPhone 4, iPhone 3GS, iPhone 3G, iPod Touch Generations 2-4, iPod Nano Generations 4-6 and Classic iPod
  • Displays album and track art
  • ID3 Tag/Title/Artist/Album display
  • MTP support for Android and Windows devices (Media trasfer protocol)

Audio features:

  • Variable subwoofer level control with selectable Low-Pass digital crossover filter 55 Hz, 85 Hz, 120 Hz, 160 Hz
  • Independent zone volume and balance control
  • Rear Wired Remote Ready
  • AM / FM tuner region selection: USA - Europe - Japan - Australasia
  • VHF receiver region selection: USA - Canada - International
  • FUSION-Link
  • NMEA 2000

Inputs and Outputs:

  • 1 - Full size rear USB
  • 1 - Rear SiriusXM Ready input (Can be used with MS-BT200 instead if Sirius XM is not needed)
  • 1 - Rear Wired Remote Ready (MS-NRX200i)
  • 1 - Motorola style AM/FM radio antenna input
  • 1 - Stereo RCA auxiliary input
  • 1 - Stereo RCA output
  • 1 - Stereo RCA subwoofer output
  • 1 - Stereo Zone (A) speaker outputs
  • 1 - Stereo Zone (B) speaker outputs

Optional Bluetooth:

  • Built-in Bluetooth
  • Requires MS-BT100 or MS-BT200
  • MS-BT100 support audio functions only, no song information will be sent to the radio
  • MS-BT200 supports audio functions and song information such as artist / album / song name will be sent to the radio
  • MS-BT200 plugs into the Sirius XM port preventing a connection to Sirius XM
  • Supports A2DP audio streaming
  • Meant for audio streaming only will not allow phone calls to be placed or answered

Technical Specifications

Manufacturer Fusion
Part Number MS-RA205
Chassis Size Single DIN
Illumination color White
Faceplate features No
Built-in DVD Player No
Disc Playback No
Anti-Shock Yes
Dual Zone Control Yes
LCD Screen Size 1 inch - 2 inch
Native Screen Resolution No
Widescreen Display No
Touchscreen No
Swivel Screen No
Built in Bluetooth Optional
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS Yes
Satellite Radio Sirius XM Ready
iPod Audio Connection Yes, via USB
iPod Video Connection Yes, via USB
Front mounted auxiliary input No
Front camera input N/A
Back up camera input No
Audio Video inputs 1 Audio Input
Audio Video Outputs No
USB input Yes
SD Card input No
MP3 Playback Yes
Audio Formats Mpeg-3, WAV, WMA
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
Navigation No
RCA Pre-amp Audio outputs 2 Pairs (Front, Rear)
Preamp voltage 2 volts
Steering Wheel Control Input No
Built in Crossover No
Wireless Remote Control No
Warranty 3 Years
UPC Code 9419523301630
