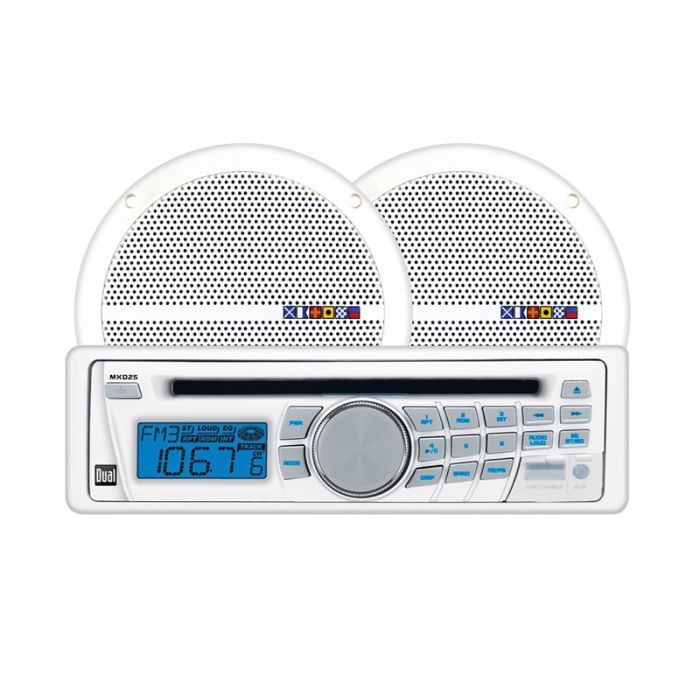

Dual MXCP25 Marine AM/FM/CD Receiver with Detachable Face and USB plus 6.5 Inch Dual Cone 60 Watt Speaker Pair Combo Pack

$128.99
Out of stock
SKU
32421

Key Features

Dual MXCP25 Marine AM/FM/CD Receiver with Detachable Face and USB plus 6.5 Inch Dual Cone 60 Watt Speaker Pair Combo Pack
Unit includes: Receiver and Speakers

Dual MXCP25 Marine AM/FM/CD Receiver with Detachable Face and USB plus 6.5 Inch Dual Cone 60 Watt Speaker Pair Combo Pack

  • General
  • 60 Watts Peak (15x4)
  • 1.0 DIN rust-resistant chassis
  • Chassis dimensions - 7x7x2 (WxDxH)
  • Conformal coated circuit boards
  • Import ISO/DIN mountable
  • Detachable face
  • Electronic volume, bass, treble, balance, fader
  • Blue/white dot matrix type liquid crystal display
  • 3 Selectable EQ curves pop, classic, rock
  • Front panel auxiliary input (3.5mm)
  • Loudness, Clock, Mute
  • Operating voltage: 11-16 VDC, negative ground
  • Speaker output impedance: 4~8 ohms
  • Fuse: 5 amp AGC
  • Dimensions: 7" x 7" x 2" (178 x 178 x 51 mm)

  • Speakers
  • DMP66 6.5" Dual Cone Design
  • 60 Watts peak/20 Watts RMS
  • Corrosion-resistant ABS construction
  • 1-piece basket with integrated grille
  • Injection-molded polypropylene cone
  • Poly-coated cloth surround
  • Outside Diameter: 7.05"
  • Mounting Depth: 2.24"
  • Mounting Height: 0.71"
  • Cut-out Diameter: 5.13"
  • Frequency Response: 45Hz-15kHz
  • Sensitivity: 88dB 1W/1M
  • Impedance: 4 ohms
  • RMS Power: 20 Watts @ 1kHz
  • Peak Power: 60 Watts @ 1kHz

  • CD
  • CD-R/CD-RW compatible
  • Last position memory
  • Random/repeat/intro/pause
  • High-speed audible track search
  • 8x Oversampling
  • 1 Bit D/A converter
  • Anti-shock mechanism
  • 3-Beam laser pickup
  • Frequency response: 20Hz-20kHz
  • Channel separation @ 1kHz: >65dB
  • D/A converter: 1 Bit

  • Tuner
  • 30 Station presets (18FM/12AM)
  • Auto station store
  • Preset scan
  • Auto stereo/mono
  • Local/distance
  • Manual tuning
  • Seek tuning
  • Scan

  • FM Tuner
  • Tuning range: 87.5MHz-107.9MHz
  • Usable sensitivity: 12dBf
  • 50dB quieting sensitivity: 16dBf
  • Stereo separation @ 1kHz: 40dB
  • Frequency response: 30Hz-13kHz

  • AM Tuner
  • Tuning range: 530kHz-1710kHz
  • Usable sensitivity: 30uV
  • Frequency response: 80Hz-2kHz

  • MXCP25 (MXD25 Receiver) Instruction Manual
  • MXCP25 (DMP66 Speakers) Instruction Manual

More Information
Manufacturer Dual
Part Number MXCP25
Chassis Size Single DIN
Faceplate features Detachable face plate
NFC (Near Field Communication) No
Front mounted auxiliary input 3.5 mm audio/video input
RCA Pre-amp Audio outputs 1 Pair
Return period 30 days
Exchange period 30 days
