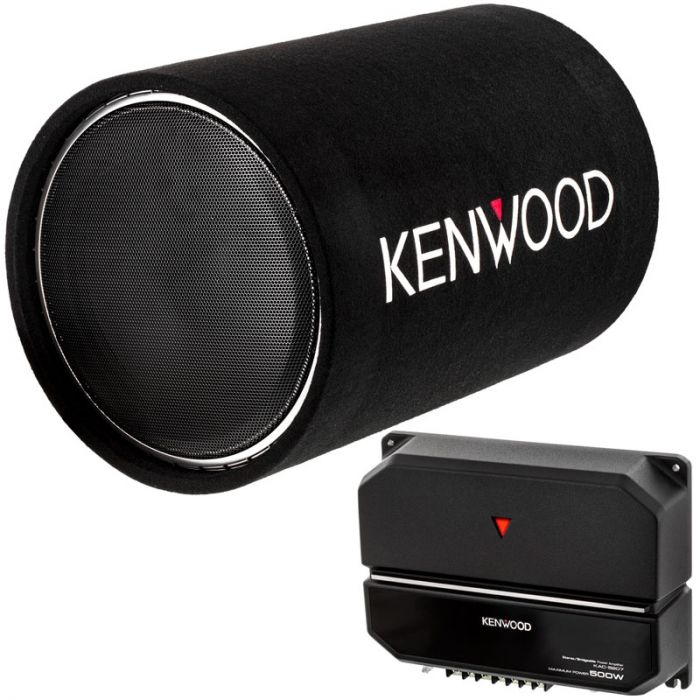

Kenwood P-W131TB 12" Tube Subwoofer System with Kenwood KAC-5207 Amplifier
$203.99
Out of stock
SKU
P-W131TB
Expert Knowledge
Talk to a specialist
- 12 inch Tube subwoofer enclosure is perfect for trucks and SUV's where subwoofer placement is meant for behind the seat or in the cargo area
- High quality sound with included 400 watt external amplifier
- Black carpeted woofer enclosure with Kenwood logo
Unit Includes: Subwoofer enclosure, KAC-5207 Amplifier, Mounting hardware, Input wiring leads, Warranty Card, and Instruction manual
Kenwood P-W130TB 12" Tube Subwoofer system with Amplifier
Subwoofer Features
Power Handling RMS
Power Handling Max
Dimensions
Features
Max Power Output
RMS Power Output
Inputs and Outputs
Dimensions
Subwoofer Features
- 12 inch Tube subwoofer enclosure is perfect for trucks and SUV's where subwoofer placement is meant for behind the seat or in the cargo area
- 12" Single 4 ohm Performance Series Subwoofer
- High quality sound with included amplifier
- Polypropylene cone for excellent rigidity
- Frequency Response: 40Hz - 800Hz (+0dB, -6dB)
- Rubber woofer surround
- Black carpeted woofer enclosure with Kenwood logo
- Rear mounted port for low end extension and added SPL
- Integrated subwoofer grill to prevent cone damage
- 2.7 pound strontium magnet
- Sensitivity: 88dB /watt at 1m
- Includes subwoofer mounting brackets
Power Handling RMS
- 200 watts
Power Handling Max
- 1200 watts
Dimensions
- Diameter: 14"
- Depth: 16"
Features
- Class AB amplifier
- 2 or Mono channel operation
- 2 Ohms Load Capability
- Power MOS-FET Switching Power Supply
- Speaker Level Input
- Signal Sensing Turn-on
- Cast Aluminum Heat Sink Design
- Built in Low-Pass Filter (80Hz, -18dB/oct)
- Signal to Noise Ratio: 95dB (Reference: Rated Power into 4Ohms at 14.4V)
- Frequency Response: 5Hz-50kHz (+0dB, -3dB) Class-AB
- Input Impedance: 10k ohm
- Speaker Impedance: 4Ω (2Ω to 8Ω allowable), Bridged connection 4Ω to 8Ω Allowable
- Weight (kg): 1.3 (kg)/2.8 (lbs.)
- CEA-2006 Compliant
Max Power Output
- 400 Watts
RMS Power Output
- 60 Watts x 2
Inputs and Outputs
- Battery and Ground: Screw Type Terminal Block (Ni) (M6)
- Speaker Output: Screw Type Terminal Block (Ni) (M4)
- Line-in: RCA (Ni)
- Speaker Input: JST Connector
Dimensions
- 225mm x 55mm x 180mm
| Manufacturer | Kenwood |
|---|---|
| Part Number | P-W131TB |
| Driver Size | 12 inch |
| Subwoofer Shape | Tube |
| Voice coils | Single voice coil |
| Impedance (per voice coil) | 4 ohm |
| Sensitivity | 88 dB |
| Frequency Response | 40Hz - 800Hz |
| Sub enclosure type | Ported / Vented |
| Power Handling RMS | 200 Watts |
| Power Handling Peak | 1200 Watts |
| Shallow Mount Subwoofer | No |
| Color | Black |
| Warranty | 1 Year |
| UPC Code | 019048219138 |
| Return period | 30 days |
| Exchange period | 30 days |
