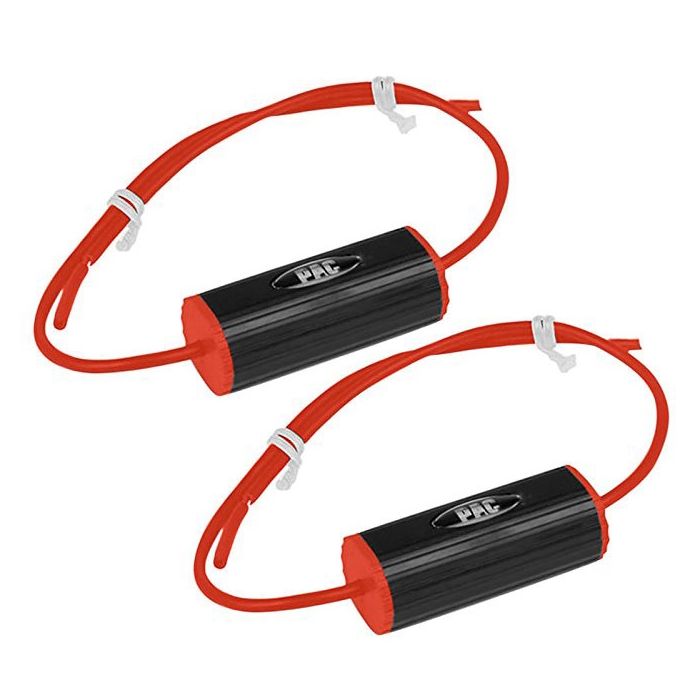

Pac Audio BB-5PR Bass Blocker 14.21uF Capacitor - 2800 Hz at 4 ohm or 1400 Hz at 8 ohm 6dB High-Pass Crossover
$12.99
In stock
SKU
BB-5PR
Expert Knowledge
Talk to a specialist
- Designed for use with 3-1/2" speakers
- (2) Bass Blockers to prevent bass frequencies from damaging your speakers
- Handles power up to 50 watts
- Capacitance uF (microFarad): 14.21 uF
- 1400 Hz High-pass crossover at 8 ohms
- 2800 Hz High-pass crossover at 4 ohms
- Red wire leads with a black casing
Unit includes: (2) Bass Blockers
Pac Audio BB-5PR Bass Blocker 14.21uF Capacitor - 2800 Hz at 4 ohm or 1400 Hz at 8 ohm 6dB High-Pass Crossover
Pac Audio BB-5PR Bass Blocker 14.21uF Capacitor - 2800 Hz at 4 ohm or 1400 Hz at 8 ohm 6dB High-Pass Crossover
- Features:
- (2) Bass Blockers to prevent bass frequencies from damaging your speakers
- Used for smaller speakers (Mid-range and Tweeter)
- Designed for use with 3-1/2" speakers
- Protects the speakers from receiving damaging frequencies
- Capacitance uF (microFarad): 14.21 uF
- 1400 Hz High-pass crossover at 8 ohms (6dB per octave)
- 2800 Hz High-pass crossover at 4 ohms (6dB per octave)
- Red wire leads with a black casing
- Fully enclosed capacitor and leads to prevent accidental short and for durable installation
- Dimensions:
- Without wire leads: 1-5/8" (L) x 5/8" (W) x 5/8" (H)
High-Pass Crossover Point and Necessary Capacitor values:
| Crossover Frequency | 8 Ohms | 4 Ohms | 2 Ohms |
| 80 Hz | 248.44 uF | 496.88 uF | 993.75 uF |
|---|---|---|---|
| 100 Hz | 198.75 uF | 397.50 uF | 795.00 uF |
| 120 Hz | 165.63 uF | 331.25 uF | 662.50 uF |
| 150 Hz | 132.50 uF | 265.00 uF | 530.00 uF |
| 200 Hz | 99.38 uF | 198.75 uF | 397.50 uF |
| 280 Hz | 70.98 uF | 141.96 uF | 283.93 uF |
| 400 Hz | 49.69 uF | 99.38 uF | 198.75 uF |
| 600 Hz | 33.13 uF | 66.25 uF | 132.50 uF |
| 800 Hz | 24.84 uF | 49.69 uF | 99.38 uF |
| 1 kHz | 19.88 uF | 39.75 uF | 79.50 uF |
| 1.2 kHz | 16.56 uF | 33.13 uF | 66.25 uF |
| 2 kHz | 9.94 uF | 19.88 uF | 39.75 uF |
| 3 kHz | 6.63 uF | 13.26 uF | 26.53 uF |
| 4 kHz | 4.97 uF | 9.94 uF | 19.88 uF |
| Manufacturer | PAC |
|---|---|
| Part Number | BB-5PR |
| Crossover Type | Passive Crossover |
| Built in Crossover | High-pass |
| Crossover Filter Type | 1st Order Butterworth |
| High Pass Crossover Slope | 6 dB Per Octave |
| Band Pass Crossover Slope | None |
| Low Pass Crossover Slope | None |
| Warranty | 1 Year |
| UPC Code | 060652310832 |
| Return period | 30 days |
| Exchange period | 30 days |
