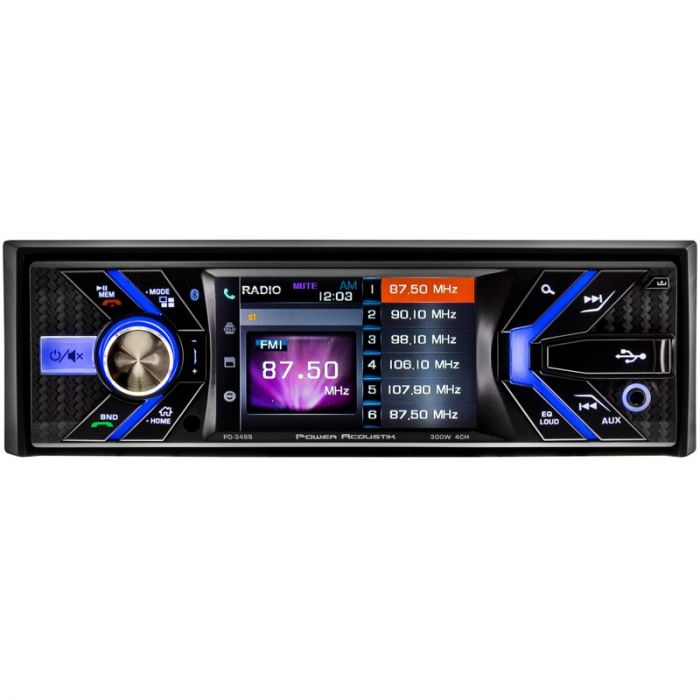

Power Acoustik PD-348B Single DIN In-Dash Digital Media DVD Receiver with Bluetooth 4.0 and 3.4 inch LCD Display
Expert Knowledge
Talk to a specialist
- Single DIN DVD Digital Media Receiver
- Built in Bluetooth
- Pandora an Spotify Control via iPhone/iPod and Android
- SD Card Slot and USB port
- Blue Illumination
- 3-band equalizer with 8 preset tone curves
- Theft-deterrent, detachable face plate
- Peak: 50 watts x 4 channels
- RMS: 20 watts x 4 channels
Power Acoustik PD-348B Single DIN In-Dash Digital Media DVD Receiver
-
Stereo features:
- Single DIN DVD Digital Media Receiver
- 3.4" LCD Screen
- Built in Bluetooth 4.0
- 720x420 16:9 Aspect Ratio Widescreen LCD
- Blue Illumination
- SD Card and Disc slot behind flip down faceplate
- Theft-deterrent, detachable face plate
- 2V USB Adaptive Fast Charging
- Blue Illumination
- Power Output:
- Peak: 50 watts x 4 channels
- RMS: 20 watts x 4 channels
- Pandora and Spotify Control via iPhone/iPod and Android
- Tuner features:
- Includes AM & FM tuner with 24 preset stations memory
- RDSB (Radio data service) Tuner
- Power Output:
- Peak: 50 watts x 4 channels
- RMS: 20 watts x 4 channels
- Bluetooth features:
- Bluetooth 4.0 certified
- Integral Bluetooth technology facilitates convenient hands-free phone calls and audio streaming
- A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
- AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
- SPP: Serial Port Profile provides a wireless replacement for RS-232 based serial communications
- HFP: Hands Free Profile allows a hands-free car kit to connect to a compatible mobile phone
- PBAP: Phone Book Access Profile allows the car stereo to display the name of the incoming caller, as well as access the contact list
- Built-in Front Panel Bluetooth Microphone
- Wireless Music Browsing
- Inputs and outputs:
- 2 - Sets of 2.5V preamp outputs
- 1 - Front USB connection
- 1 - Front 3.5mm AUX
- 1 - Front SD Card Input
- 1 - Rear Video Output
- 1 - Rear Backup Camera Input
- 1 - Rear Radio Antenna
- 1 - Steering wheel control input requires ASWC steering wheel interface
- Dimensions:
- Single DIN chassis
- Dimensions: 7-3/16"W x 7-1/4"D x 2-1/8"H
| Manufacturer | Power Acoustik |
|---|---|
| Part Number | PD-348B |
| Chassis Size | Single DIN |
| Illumination color | Blue |
| Faceplate features | Detachable face plate |
| Disc Playback | DVD |
| Anti-Shock | Yes |
| Built in Bluetooth | Built in Bluetooth |
| NFC (Near Field Communication) | No |
| HD Radio | No |
| Radio Data Service - RDS | Yes |
| Satellite Radio | No |
| Front mounted auxiliary input | 3.5 mm audio input |
| Audio Video Outputs | 1 Video output |
| USB input | Yes |
| SD Card input | Yes, SD Card |
| Audio Formats | AAC, FLAC, Mpeg-3, WAV, WMA |
| RCA Pre-amp Audio outputs | 2 Pairs (Front, Rear) |
| Preamp voltage | 2 volts |
| Steering Wheel Control | Yes, requires external module |
| Built in Crossover | None |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
