Pioneer TS-A1072R A Series 4 Inch 3 Way 150 Watt Speakers

$50.99
In stock
SKU
TSA1072R

Key Features

  • Experience Smooth Sound
  • Light Weight Balanced Dome
  • High-performance Reproduction with Low Distortion
  • 150 Watts Max
Unit includes: Speakers

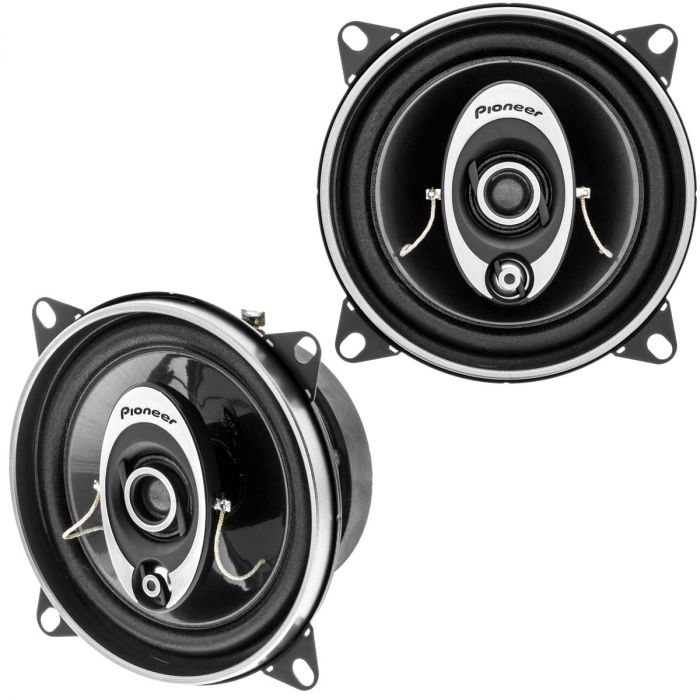

Pioneer TS-A1072R A Series 4 Inch 3 Way 150 Watt Speakers
  • Intro
  • Experience smooth sound with A-Series. Pioneer's exclusive technology enriches your music by producing clear, open sound. Bring out the details of your music with A-Series speakers.
  • The TS-A1072R is a 3-way speaker that handles 150 watts max. and it’s equipped with an Composite IMPP™ cone using interlaced Aramid Fiber that’s super-strong, rigid, tough, and very lightweight—the perfect attributes for big, booming bass and exceptional power handling.
  • The mid-range is a 15/16" Light Weight Balanced Dome with Magnetic Fluid and includes its own Neodymium Magnet, for high-performance reproduction with low distortion, and the 3/8” Dome Tweeter delivers smooth, accurate highs.
  • A custom-fit basket will fit both 4- & 2-Hole Mounting applications, making installation easy.

  • Features
  • Woofer Cone Material: Composite IMPP Cone using Interlaced Aramid Fiber
  • Surround: Foam Rubber Coated Cloth
  • Voice Coil Bobbin: Glass-Imide
  • Damper: Aramid Fiber
  • Tweeter: 3/8" Soft Dome
  • Speaker Grille: Not Included

  • Specifications
  • Watts MAX. Music Power: 150 Watts
  • Watts Nominal Power Handling: 20 Watts
  • Frequency Response: 45 Hz to 30 kHz
  • Sensitivity (1W/1m): 90 dB
  • Ohm Rating: 4 ohm
  • Mounting Depth: 1-11/16" (43 mm)
  • Cut-out Dimensions: 3-1/2" (90 mm)

  • TS-A1072R BackPanel Manual

More Information
Manufacturer Pioneer
Part Number TS-A1072R
Speaker Size 4 inch
Speaker system type 3 - way
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Color Black
Warranty 1 Year
Return period 30 days
Exchange period 30 days
