Pyle PLCMTR5 1/4" CMD Commercial Weatherproof Rear View Night Vision Camera
$55.99
In stock
SKU
PLCMTR5
Expert Knowledge
Talk to a specialist
- 1/4" CMD Commercial type back up camera with infrared illumination
- Reverse image for rear view use
- IR Infrared 18 LEDs for Night Vision 32 ft distance
- Includes 50 foot 4-pin cable
- 4 Pin Connector - RCA Adapter is included

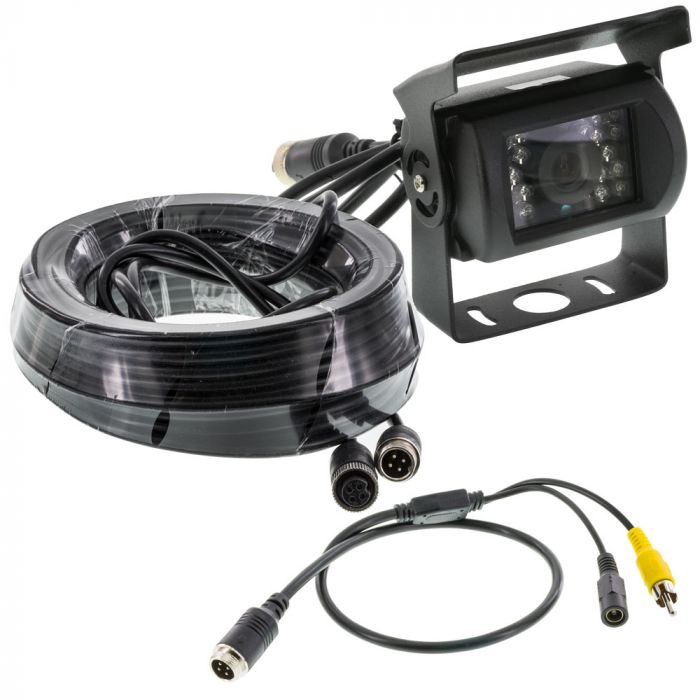

Unit includes: Back up camera, Mounting hardware, 50 Foot 4-pin cable, 4-pin to RCA adapter cable and Instruction manual
Pyle PLCMTR5 Weatherproof Rear View Night Vision Camera
Pyle PLCMTR5 Weatherproof Rear View Night Vision Camera
- Features:
- Commercial type back up camera with infrared illumination
- Aluminum Alloy housing with powder coated finish
- Reverse image for rear view use
- 1/4" CMD Image Sensor
- IR Infrared 18 LEDs for Night Vision 32 ft distance
- Adjustable vertical axis with 2 retaining screws
- Includes 50 foot 4-pin cable
- 4 Pin Connector - RCA Adapter is included
- Parking grid lines with cut wire to turn them off
- Operates on 12-24 Vdc
- Image sensor specifications:
- 420 TV lines or resolution
- Effective Pixels: 580 x 540
- 170° Wide Angle Camera - Blind Spot reduced
- Minimum Illumination: 0 Lux with IR LED's On
- Operating Temperature: -20° ~ +70° C (RH 95% Max)
- Power Supply: DC 12V-24V
- Waterproof Rating: Ip68
- Dimensions:
- Dimensions: 3-1/8" (W) x 2-1/4" (D) x 2-7/8" (H)
| Manufacturer | Pyle |
|---|---|
| Part Number | PLCMTR5 |
| Camera Sensor type | CMD |
| Back up camera type | Side Mount Camera |
| Camera diameter | 1/4" |
| Viewing Angle | 170 degrees |
| Wireless Transmission | Wired connection |
| Waterproof ingress protection | IP68 - Dust; Immersion beyond 1 m |
| Reverse Image | Yes - Reverse Image |
| Parking grid lines | Yes |
| Infrared Illumination | Yes |
| Built in Microphone | No |
| Connector Type | RCA Cable |
| Modulation | NTSC only |
| Operation Voltage | 12-24 Volt DC |
| Battery Powered | Hard wired |
| Cigarette Lighter Cord Included | No |
| Color | Blue |
| Warranty | 1 Year |
| UPC Code | 068888758840 |
| Return period | 30 days |
| Exchange period | 30 days |
