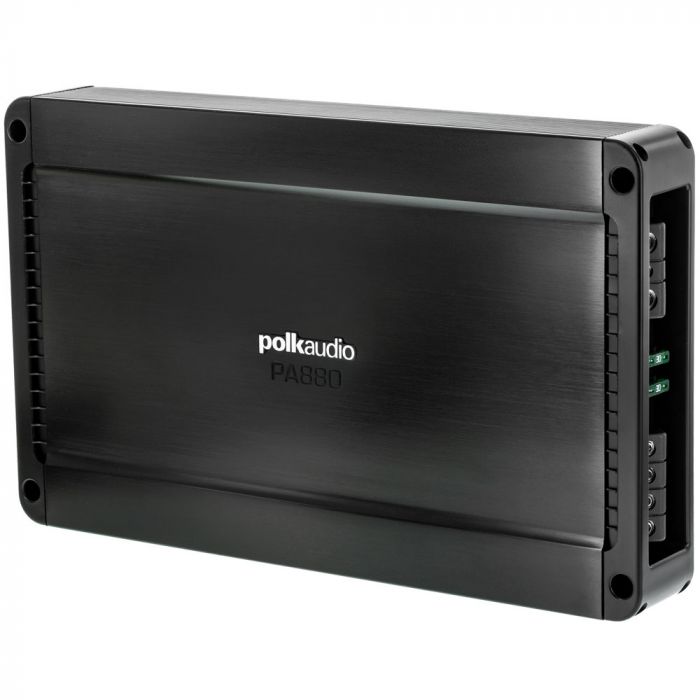

Polk Audio PA880 Class AB Monoblock Amplifier - 800 watts
$203.99
In stock
SKU
PA880
Expert Knowledge
Talk to a specialist
- Class AB 800 Watts Amplifier
- Monoblock audio amplifier
- Stable and High-Speed MOSFET power supply
- Nickel plated terminals for maximum signal transfer
- Corrosion-Free, Environmental Friendly Stainless Steel Construction
The Polk Audio PA880 is a conventional type of car amplifier that features an incredibly small chassis, yet with a sound output that is simply amazing. The sheer size of this amplifier makes it easy to install practically anywhere within your ride. Given a great finish in black anodized brushed aluminum heat sink, the amplifier boasts great mass given its puny size. The messy wiring and connections are well camouflaged, thanks to the integrated molded end caps. With the power and speaker connections located on one end, and a pair of 25A ATC type fuses at the other, the Polk Audio PA880 comes with inputs controls and adjustments located conveniently.
The built in 12 decibel octave crossovers convey the all-pass and high pass filters to the front channels, while the rear channels get the filters for the low or high pass, including all pass setting. With the crossover frequency range set at between 50 Hz to 500 Hz for all the configurations, the bass boost that comes for the front and rear channels is independently adjustable. The conventional class AB design is based on high current MOSFET technology and also features a couple of complementary bi-polar transistors for each channel inside the amplifier.
Polk Audio PA880 Class AB Monoblock Amplifier - 800 watts
- Features:
- Class AB Technology for a cooler operation
- 800 watts Mono 1 channel Operation
- Stable High-Speed MOSFET power supply
- Short Circuit, DC Voltage and Thermal Protection
- Maximum signal transfer with the help of Nickel plated terminal
- Corrosion-Free, Environmental Friendly Stainless Steel Construction
- 3-position(0,6,12dB) Hz Bass Boost
- Total dynamic power of 800 watts
- 0.90% Distortion power rating and effective damping factor >150
- 200mV-5 dB Maximum Sensitivity
- Minimum un-bridged impedance @ 2 ohms
- 80 dBA of Signal-to-noise ratio
- 20Hz-20kHz of total frequency response
- Max Power Output:
- 800 watts
- RMS Power Output:
- 300 watts @ 4 ohms un-bridged operation
- 500 watts @ 2 ohms un-bridged operation
- Inputs and Outputs:
- Low-Pass Filter Frequency @ 50Hz-500Hz
- 12dB/oct of Low-Pass Filter Slope
- Dimensions:
- 2”(H) X 13.25”(W) X 8.13”(L)
- Warranty Duration:
- Basic Warranty: 1 year
| Manufacturer | Polk Audio |
|---|---|
| Part Number | PA880 |
| Amplifier Topology Class | Class AB |
| Number of Channels | 1 Channel |
| Total RMS Power at 1 ohm | $0.00 |
| Total RMS Power at 2 ohm | $500.00 |
| Total RMS Power at 4 ohm | $300.00 |
| Total Peak Power Output | $800.00 |
| Amplifier Bridging | Not Bridgable |
| Minimum Impedance in Un-Bridged Mode | 2 ohm |
| Strappable Amplifier | No |
| RCA Pre-amp Audio inputs | 1 Pair |
| RCA Pre-amp Audio outputs | 1 Pair |
| Preamp voltage | 150 mV - 12 V |
| Speaker level inputs | Yes |
| Gain Control | Yes |
| Bass Knob / Remote Gain | Yes |
| Built in Crossover | Low-pass |
| Cooling Fan | No |
| Color | Black |
| Warranty | 1 Year |
| Recommended Power Wire Gauge | 4 Gauge |
| CEA2006 Compliant | No |
| Return period | 30 days |
| Exchange period | 30 days |
