DISCONTINUED - Jensen Power 760 Hi-Fi Amplifier 4-Channel 760 Watt

DISCONTINUED - Jensen Power 760 Hi-Fi Amplifier 4-Channel 760 Watt

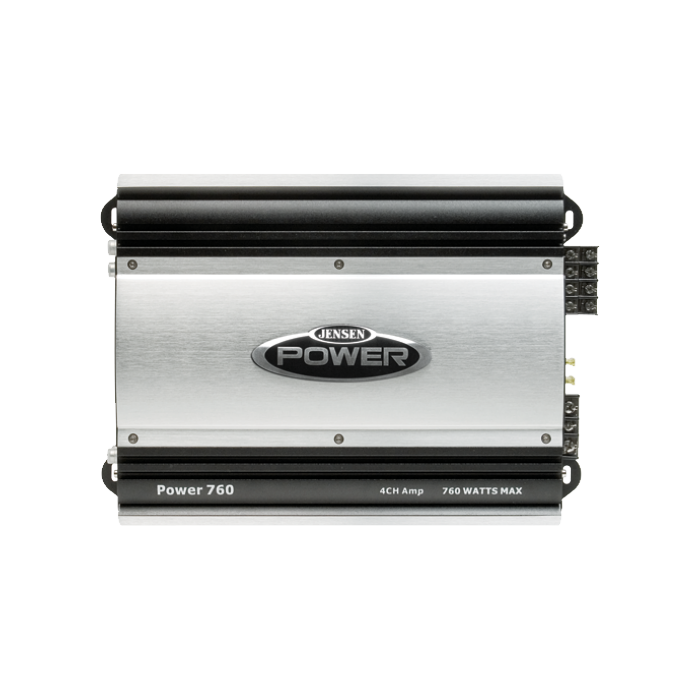

Jensen Power 760 Hi-Fi Amplifier 4-Channel 760 Watt

More Views

Jensen
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Jensen POWER760 Product Highlights

Discontinued - Jensen Power 760 Hi-Fi Amplifier 4-Channel 760 Watt
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Overview

Unit Includes:

Jensen Power760 Hi-Fi Amplifier 4-Channel 760 Watt features:
  • MOSFET Power Supply
  • High Current Bi-Polar Output Transistors
  • Optimized Class B Design Minimizes Distortion and Reduces Idle Current
  • Easily Drives 2-Ohm Loads
  • Pass-Thru RCAs
  • Variable Bass EQ 0 - 12dB @ 45 Hz
  • 12dB / Octave Low Pass and High Pass filters
  • Variable Input Level 400mV - 5V
  • Short Circuit, DC-offset and Thermal Overload Protection Circuitry
  • Diagnostic LED's - Green - Power, Red - Standby/Fault
  • Low Pass Filter 40 - 300 Hz
  • High Pass Filter 40 - 300 Hz
  • High Pass / Low Pass / Full Range Selector Switch
  • 2/3/4 Channel Mode Switch
  • Load Impedance - 2, 4-Ohm
  • Signal to Noise @ 1 kHz >100dB (rated power)
  • Channel Separation @ 1 kHz - >60dB
  • Frequency Response - 5-60 kHz, -3dB
  • Input Impedance - 20 kHz, nominal
  • THD+N @ 5 Watts - 0.02%, 1 kHz, 14.4VDC
  • Power Output - 75 x 4 Watts, 4-Ohm
  • Power Output - 100 x 4 Watts, 2-Ohm
  • Power Output Bridged - 190 x 2 Watts, 4-Ohm Bridged Stereo
  • Dimensions (LxHxW) 12.5" x 2.5" x 9.0"

Technical Specifications

Manufacturer Jensen
Part Number POWER760
Amplifier Topology Class No
Number of Channels 4 Channel
Total RMS Power at 1 ohm 0 Watts
Total RMS Power at 2 ohm 0 Watts
Total RMS Power at 4 ohm 0 Watts
RMS Output per Channel (x1 at 4 ohms) 0 Watts
RMS Output per Channel (x2 at 4 ohms) 0 Watts
RMS Output per Channel (x4 at 4 ohms) 0 Watts
Total Peak Power Output 0 Watts
Amplifier Bridging Bridgable @ 4 ohms
Minimum Impedance in Bridged Mode No
Minimum Impedance in Un-Bridged Mode No
Strappable Amplifier No
Strappable Power Output No
Frequency Response N/A
Signal to noise ratio 0dB
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs No
Preamp voltage No
Speaker level inputs No
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color No
Warranty 1 Year
Recommended Power Wire Gauge No
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
CEA2006 Compliant N/A
UPC Code No
