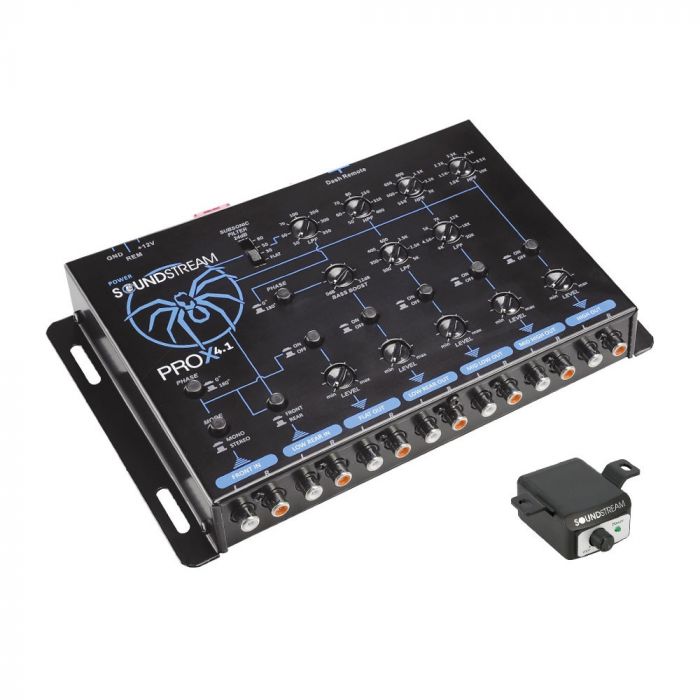

Soundstream PROX4.1 4-Way Electronic Crossover Optimized for Extreme SPL Applications
$79.99
In stock
SKU
PROX4.1
Expert Knowledge
Talk to a specialist
- 4-Way Electronic Crossover
- 2Ch. RCA Front/Full Range Stereo or Optional Mixed Mono Input
- Optional 1800 Phase Inversion Switch for Front/Full Range Input
- Optional 2Ch. RCA or Front/Full Range Input for Low/Subwoofer Input
- 2Ch. RCA Full Range Output w/ Mute Switch & Variable 9V Line Driver
Unit includes: DSP, High level speaker harness, Remote Bass Control, Mounting hardware, and Instruction manual
Soundstream PROX4.1 4-Way Electronic Crossover Optimized for Extreme SPL Applications
Soundstream PROX4.1 4-Way Electronic Crossover Optimized for Extreme SPL Applications
- Features:
- 4-Way Electronic Crossover
- 2Ch. RCA Front/Full Range Stereo or Optional Mixed Mono Input
- Optional 1800 Phase Inversion Switch for Front/Full Range Input
- Optional 2Ch. RCA or Front/Full Range Input for Low/Subwoofer Input
- 2Ch. RCA Full Range Output w/ Mute Switch & Variable 9V Line Driver
- 2Ch. RCA Output for Low/Sub, Mid-Low, Mid-High, & High/Tweeter
- Variable 9V MAX Output Line Driver for All Low, Mid, & Sub Channels
- Dedicated Momentary Mute Switch for All Low, Mid, & Sub Channels
- Variable 1kHz-10kHz High-Pass Crossover
- Variable 12dB 550Hz-3kHz High-Pass & 4kHz-20kHz Low-Pass Crossover
- Variable 12dB 50Hz-400Hz High-Pass & 30Hz-5kHz Low-Pass Crossover
- Optional 3-stage 24dB Subsonic Filter
- Variable 50Hz-350Hz 12dB Low-Pass Crossover
- Dedicated 1800 Phase Inversion Switch
- Variable 0-12db 45Hz Bass Boost
- High/Tweeter Signal Processing Options:
- Mid-High Signal Processing Options:
- Mid-Low Signal Processing Options:
- Low/Subwoofer Signal Processing Options:
| Manufacturer | Soundstream |
|---|---|
| Part Number | PROX4.1 |
| Built in Crossover | High-pass, Low-pass |
| High Pass Crossover Slope | 12 dB Per Octave |
| Band Pass Crossover Slope | 12 dB Per Octave |
| Low Pass Crossover Slope | 12 dB Per Octave |
| Warranty | 1 Year |
| UPC Code | 709483056541 |
| Return period | 30 days |
| Exchange period | 30 days |
