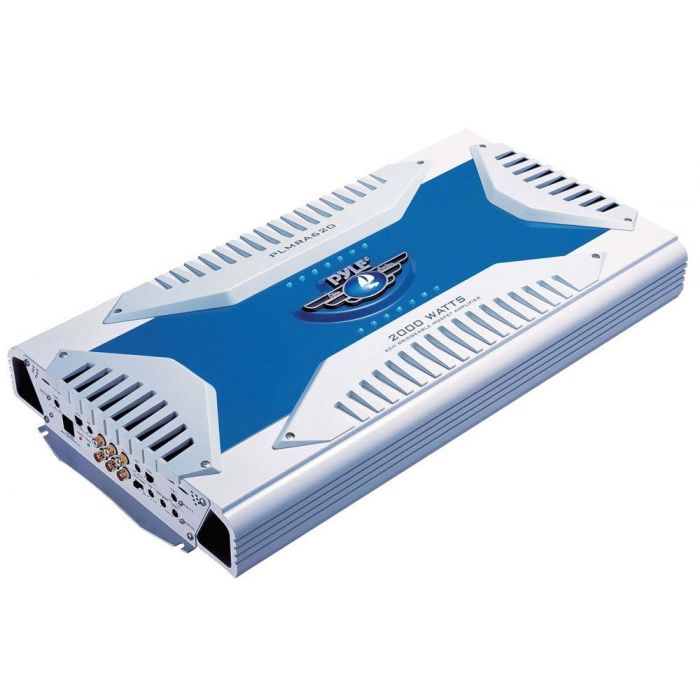

Pyle PLMRA620 Elite Series 6-Channels AB-Class Waterproof Amplifier

$201.99
In stock
SKU
PLMRA620

Key Features

  • AB-Class 6-Channel waterproof amplifier
  • Comes with three modes of configuration
  • Waterproof and marine grade construction
  • Features adjustable input GAIN control
  • Also features Remote Bass Boost controller connector jack
  • Variable High Pass, Low Pass & Bass Boost Controls with anti-thump delay circuitry
  • Features heavy-duty aluminum alloy heatsink with built-in thermal, overload and speaker short protection

The Unit Includes: Amplifier Unit, Remote Control, Mounting Hardware

Pyle PLMRA620 Elite Series 6-Channels AB-Class Waterproof Amplifier

Features:

  • Bridgeable Audio Amplifier
  • Tri-Mode Configurable
  • 2 Ohm Stereo Stable
  • MOSFET Power Supply
  • 6 Channel Amp System
  • Waterproof Marine Rating IP-01
  • Marine Grade Construction
  • Adjustable Input GAIN Level Controls
  • Remote Bass Boost Controller Connector Jack
  • Variable High Pass, Low Pass & Bass Boost Controls
  • Anti-Thump Delay Circuitry
  • Heavy Duty Aluminum Alloy Heatsink
  • Power & Protection LED Indicators
  • Built-in Thermal, Overload & Speaker Short Protection
  • Remote Turn ON/OFF


Max Power Output:

  • 4 x 250W + 2 x 500W MAX @ 4 Ohms
  • 2 x 400W + 1 x 900W MAX @ 4 Ohms Bridged


RMS Power Output:

  • 4 x 100W + 2 x 250W RMS @ 4 Ohms
  • 4 x 175W + 1 x 400W RMS @ 2 Ohms


Inputs and Outputs:

  • RCA (L/R) Input Connector Jacks
  • Gold-Plated Speaker Output Terminal Connectors
  • Built in Crossover:
  • Hi/Lo Electronic Crossover Network


Dimensions:

  • 19.6'' x 10.9'' x 2.7''
More Information
Manufacturer Pyle
Part Number PLMRA620
Amplifier Topology Class Class AB
Number of Channels 6 Channel
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Cooling Fan No
Color Grey
Warranty 1 Year
CEA2006 Compliant No
UPC Code 068888883108
Return period 30 days
Exchange period 30 days
