Unit Includes: Linear Actuator and Instruction manual

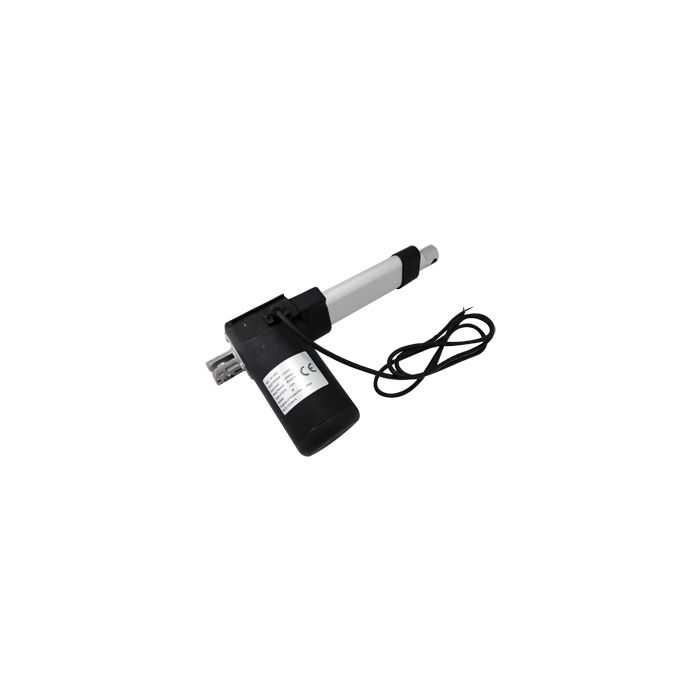

Quality Mobile Video TOP-A6104CH 4" Stroke High Speed 12 Volt Linear Actuator with Built in Limit Switches & Pulsing Reed switch feedback - 1000 LB capacity features:
Features:
Stroke 4"
Speed per second .4 inch per second no load
Speed per second .3 inch per second at full rated load
Useful load pounds: 1000
Power consumption 3 amps at 12vdc no load
Power consumption 11 amps at 12vdc at full load
Built in limit switches
Anodized Aluminum Housing
Internally lubricated jack screw
Side mounted DC motor
Built in reed switch for feedback as to where the actuator is in its extension, used in control systems
Fixed internal limit switches
IP 66 waterproof rating
S2 Duty cycle rating
Operating Temperature: -26C - 65C
Dimensions:
Closed Overall Length: 12-3/4"
Open Overall Length: 17"
Closed Center Eyelet to Eyelet Length: 11-3/4"
Open Center Eyelet to Eyelet Length: 16"
Wiring:
Red wire - Reed wire with variable resistance for actuator location
Black wire - Reed wire with variable resistance for actuator location
Blue wire - Actuator motor positive or negative depending on direction
Brown wire - Actuator motor positive or negative depending on direction
