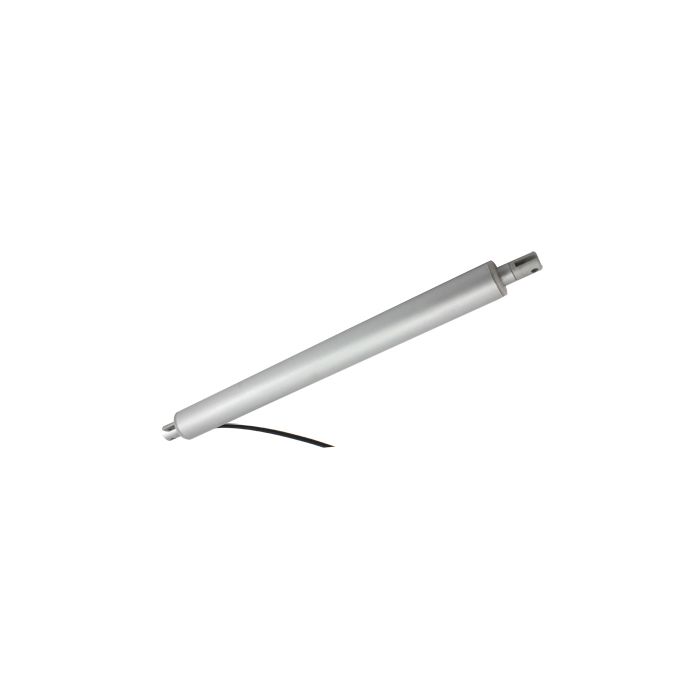

Quality Mobile Video TOP-A6106R 6" Linear Actuator 12 Volt with Built in Limit Switches
Quality Mobile Video TOP-A6106R 6" Linear Actuator 12 Volt with Built in Limit Switches
Key Features
6 inch stroke 1/2" per second speed 30 pound useful load Low profile design
Unit Includes: Linear Actuator and Instruction manual
Quality Mobile Video TOP-A6106R 6" Linear Actuator 12 Volt with Built in Limit Switches features:
Stroke 6"
Closed Length 14 1/4"
Open Length 20 1/4"
Speed per second .5 inch per second
Useful load pounds: 30
Power consumption .5 amps at 12vdc no load
Built in limit switches
Anodized Aluminum Housing
Internally lubricated jack screw
Low profile fully contained motor
Fixed internal limit switches
IP 56 waterproof rating
More Information
Manufacturer
Quality Mobile Video
Part Number
TOP-A6106R
Warranty
1 Year
Actuator load
30 pounds
Linear actuator speed
.5 inch per second
Linear actuator stroke
6 inch
Operation Voltage
12-15 Volt DC
Waterproof ingress protection
IP56 - Dust protected; Powerful water jets
Return period
30 days
Exchange period
30 days
