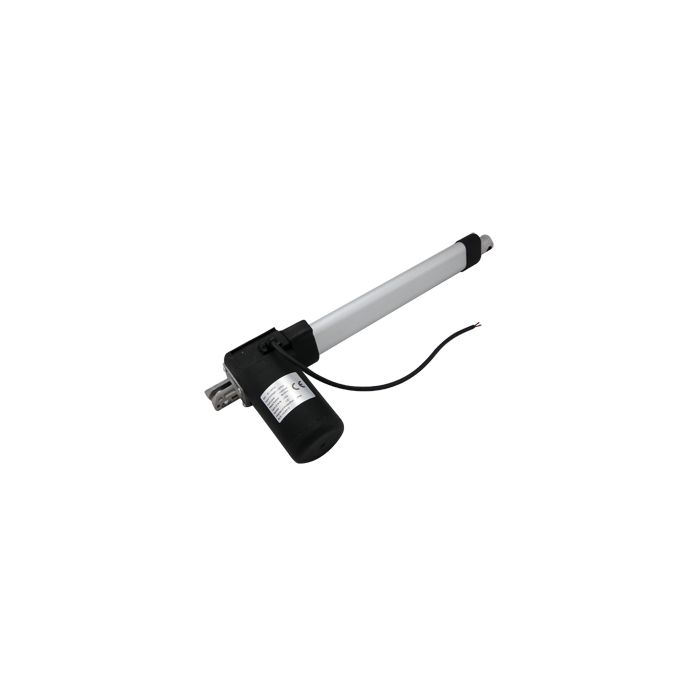

Quality Mobile Video TOP-A6108C 8" Stroke High Speed Linear Actuator - 200 LB capacity
$173.99
In stock
SKU
TOP-A6108C
Expert Knowledge
Talk to a specialist
- 8 inch stroke
- 1-1/2" per second no load speed
- 200 pound useful load
- Built in Limit Switches
- Built in reed switch feedback
- IP 66 waterproof rating
Unit Includes: Linear Actuator and Instruction manual
Quality Mobile Video TOP-A6108C 8" Stroke High Speed 12 Volt Linear Actuator with Built in Limit Switches & Pulsing Reed switch feedback - 200 LB capacity features:
Quality Mobile Video TOP-A6108C 8" Stroke High Speed 12 Volt Linear Actuator with Built in Limit Switches & Pulsing Reed switch feedback - 200 LB capacity features:
- Stroke 8"
- Closed Length 12 7/8"
- Open Length 18 7/8"
- Speed per second 1.5 inch per second no load
- Speed per second .6 inch per second at full rated load
- Useful load pounds: 200
- Power consumption 3 amps at 12vdc no load
- Power consumption 8 amps at 12vdc at full load
- Built in limit switches
- Anodized Aluminum Housing
- Internally lubricated jack screw
- Side mounted DC motor
- Built in reed switch for feedback as to where the actuator is in its extension, used in control systems
- Fixed internal limit switches
- IP 66 waterproof rating
- S2 Duty cycle rating
- Operating Temperature: -26C - 65C
| Manufacturer | Quality Mobile Video |
|---|---|
| Part Number | TOP-A6108C |
| Warranty | 1 Year |
| Actuator load | 200 pounds |
| Linear actuator speed | 1.5 inch per second |
| Linear actuator stroke | 8 inch |
| Operation Voltage | 12-15 Volt DC |
| Waterproof ingress protection | IP66 - Dust; String Water Jets/Waves |
| Return period | 30 days |
| Exchange period | 30 days |
