Unit Includes: Linear Actuator and Instruction manual

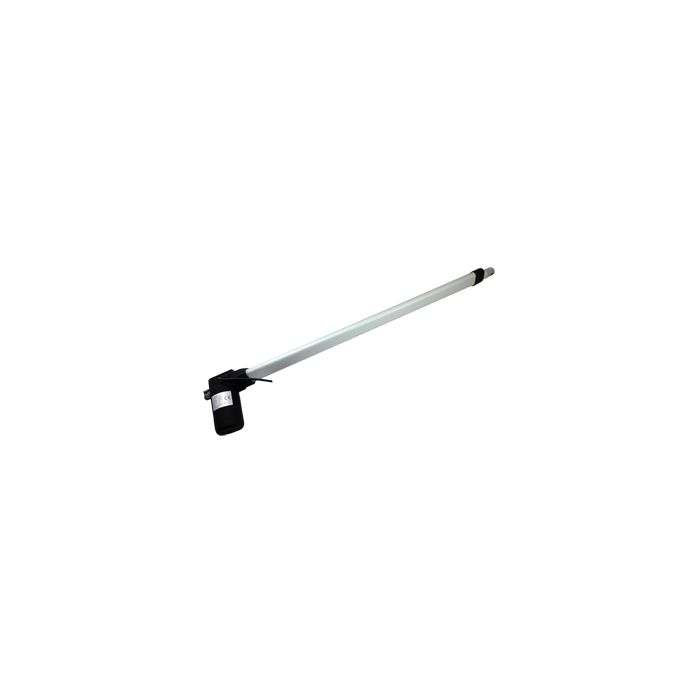

Quality Mobile Video TOP-A6130C 30" Stroke High Speed 12 Volt Linear Actuator with Built in Limit Switches & Pulsing Reed switch feedback - 200 LB capacity features:
Stroke 30"
Closed Length 37 5/8"
Open Length 67 5/8"
Speed per second 1.5 inch per second no load
Speed per second .6 inch per second at full rated load
Useful load pounds: 200
Power consumption 3 amps at 12vdc no load
Power consumption 8 amps at 12vdc at full load
Built in limit switches
Anodized Aluminum Housing
Internally lubricated jack screw
Side mounted DC motor
Built in reed switch for feedback as to where the actuator is in its extension, used in control systems
