DISCONTINUED - Renegade REN550S 2-Channel Amplifier 550 Watts Bridged

DISCONTINUED - Renegade REN550S 2-Channel Amplifier 550 Watts Bridged

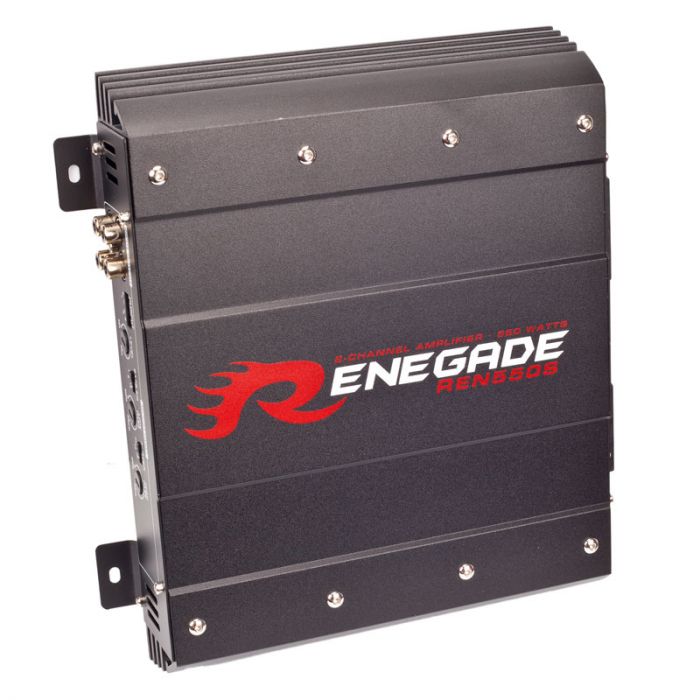

Renegade REN550S 2-Channel Car Amplifier - Left side

More Views

Renegade by Rockford Fosgate
Free Shipping on orders $99+

Overall Rating 0 (Based on 0 reviews)

Renegade by Rockford Fosgate REN550S Product Highlights

  • 2-Channel Power Series Class AB Car Amplifier
  • 550 Max Watts
  • Optimized Class AB Design Minimizes Distortion and Reduces Idle Current
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit Includes: 2-Channel amplifier, Mounting hardware, and Instruction manual

Excellent sound at an economical price

Get better sound from your existing speakers by powering them properly. With the Renegade REN550S 2-Channel Amplifier factory speakers and aftermarket speakers benefit from clean power. Push the limits of your speakers and enjoy clean power at a price anyone can afford!

High Power that you can feel

With a maximum output of 550 watts mono you can use this amp to push a single subwoofer in a bridged output or power a set of door speakers with high quality sound.

Variable LPF / HPF

Variable LPF (low-pass filter) allow for adjustable frequency between 50 Hz to 250 Hz, and HPF (high-pass filter) allow for adjustable frequency between 80 Hz to 2 KHz, giving greater car audio system flexibility according to subwoofer characteristics and personal listening preferences.

Create the ultimate car stereo system on a budget

Combine two of the Renegade REN550S 2-Channel Amplifiers, one to power a subwoofer, and one to power a set of door speakers and do it without breaking the budget. The Renegade REN550S 2-Channel Amplifier offers the best value of watts to dollars

Built in Line output converter

Save money with the built in speaker level inputs or better know as a line output converter. Now there is no need to purchase a separate line output converter, the Renegade REN550S 2-Channel Amplifier will convert speaker level signals into low level signals and amplify them, makes adding a subwoofer very easy.

Renegade REN550S 2-Channel Amplifier 550 Watts Bridged features:

Power Handling RMS:
  • (4 ohms: 75 watts x 2 chan.)
  • (2 ohms: 135 watts x 2 chan.)
  • (Bridged, 4 ohms: 275 watts x 1 chan.)

Power Handling Max:
  • (4 ohms: 150 watts x 2 chan.)
  • (2 ohms: 275 watts x 2 chan.)
  • (Bridged, 4 ohms: 550 watts x 1 chan.)

Features:
  • Pulse Width Modulated MOSFET power supply
  • LED power (green) and protect (red) indicators
  • Super selectable bass boost (0, 6, 12 dB at 45 Hz)
  • Soft Start Turn-on
  • 2/1 channel operation
  • Speaker-level (high-level) inputs with signal sensing for automatic turn-on
  • Preamp RCA outputs to daisy chain multiple amps
  • 3-Way System Protection circuitry (thermal, overload, and speaker short protection)
  • Heavy duty aluminum alloy heatsink for extreme heat dissipation
  • Gold-plated RCA level cinch inputs
  • Gold-plated screw terminals
  • Input sensitivity:
  • Low level: 100mV-4V
  • Variable high-pass filter (80-2,000 Hz)
  • Variable low-pass filter (50-250 Hz)
  • Frequency response: 20-30,000 Hz
  • Dimensions: 7-7/8"L x 10-1/16"W x 2-3/16"H
  • Renegade products are imported from Germany and distributed through Rockford Fosgate to authorized dealers
  • Authorized Dealer

Technical Specifications

Manufacturer Renegade by Rockford Fosgate
Part Number REN550S
Amplifier Topology Class Class AB
Number of Channels 2 Channel
Total Peak Power Output Up to 500 watts
Total RMS Power Output No
Total RMS Power at 1 ohm N/A
Total RMS Power at 2 ohm N/A
Total RMS Power at 4 ohm N/A
Total Peak Power Output N/A
Amplifier Bridging No
Minimum Impedance in Bridged Mode No
Minimum Impedance in Un-Bridged Mode 2 ohm
Strappable Amplifier No
Strappable Power Output No
RCA Pre-amp Audio inputs No
RCA Pre-amp Audio outputs No
Preamp voltage No
Speaker level inputs No
Gain Control No
Bass Knob / Remote Gain No
Built in Crossover High-pass, Low-pass
Cooling Fan No
Color No
Warranty 1 Year
Recommended Power Wire Gauge No
UPC Code No
