DISCONTINUED - Rosen CS-HIGH09-US Factory Look 7 inch Double Din Navigation Receiver for 2008-2012 Toyota Highlander Vehicles

DISCONTINUED - Rosen CS-HIGH09-US Factory Look 7 inch Double Din Navigation Receiver for 2008-2012 Toyota Highlander Vehicles

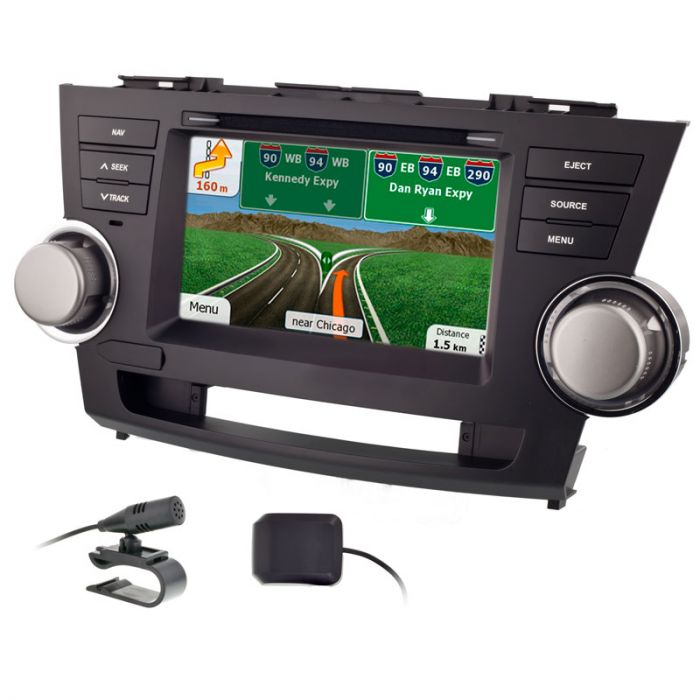

Rosen CS-HIGH09-US Toyota Highlander GPS Navigation radio - Main unit

More Views

Rosen Entertainment
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Rosen Entertainment CS-HIGH09-US Product Highlights

  • In-Dash AM/FM, CD, MP3, Navigation Receiver for 2008-2012 Toyota Highlander Vehicles
  • Factory look with easy plug and play installation
  • Steering wheel control ready
  • Parrot Bluetooth hands-free interface for voice music streaming & Voice Dialing
  • Complete iPod control allows control from both the iPod and stereo
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Double DIN radio, Plug & play harness, OE Look Faceplate, Mounting hardware, Car Show iPod and iPhone cable and Instruction manual

Rosen CS-HIGH09-US Factory Look 7 inch Double Din Navigation Receiver with Pandora, Bluetooth, SiriusXM ready and iPod control for 2008-2012 Toyota Highlander Vehicles features:


  • 2008 - 2013 Toyota Highlander

  • 6.5 inch HD wide Double DIN In-Dash TFT and LCD Touch screen monitor with GPS navigation
  • Built in Parrot Bluetooth with HFP, A2DP, AVRCP, SSP for wireless audio streaming and wireless phone operation
  • LCD screen Resolution: 800 x 480 Pixels
  • LED Backlighting
  • 6 LCD backlight color options
  • 7 color button illumination
  • 8 Selectable backgrounds
  • Mosfet Power amplifier with Output: 4 channels x 50 watts Peak and 4 channels x 17 watts RMS
  • 12 hours or 24 hours clock display
  • Displays CD text and MP3 ID3 Tag including title, artist & album
  • Easily accessible with wireless remote and graphic touch screen
  • Jpeg picture viewer
  • iPod interface control with Album Art PP1013 cable
  • Satellite radio control with optional PP1010 cable
  • Satellite radio requires SCC1 tuner
  • Pandora Control for iPhone
  • Built in DSP with nine EQ and Sounfields (User / Flat / Jazz / Pop / Classic /Rock/ News / Urban / Rave/ Movie/Techno)
  • Dual zone control
  • Advanced Touch Slide Operation
  • Rear-View Camera input
  • Built in steering wheel interface control
  • 1 year warranty

Media playback features:
  • Region 1 DVD player
  • Electronic shock protection with built in buffer
  • MP3/WMA Audio Playback on CD/DVD/USB/SD Card
  • MP3 ID3 tag information, display artist and song information
  • Jpeg image payback on SD Card
  • H.264/WMA Video Playback on CD/DVD/USB/SD Card
  • Voice Recognition Support
  • Pandora Radio App Compatible with proper cable

Audio features:
  • D/A Converter for high quality digital to analog conversion
  • 3-band parametric equalizer with preset and custom options with multiple frequency centers
  • High-Pass filter with variable slopes and crossover frequencies
  • Variable subwoofer level control with selectable Low-Pass digital crossover filter 80, 120, 160

Tuner features:
  • AM & FM tuner with 18 FM and 12 AM preset stations memory
  • RDS (Radio data service) Tuner
  • SiriusXm radio ready with SCC1 Sirius XM tuner

Bluetooth features:
  • Bluetooth technology from the premier manufacturer Parrot for un-parraleled quality
  • Integral Bluetooth technology facilitates convenient hands-free phone calls and supports A2DP & AVRCP
  • A2DP: Advanced Audio Distribution Profile allows high quality audio to be streamed from an audio device to the car stereo
  • AVRCP: Audio/Video Remote Control Profile supports basic remote control functions (play, pause, etc) via Bluetooth
  • External microphone with 10 foot cord for optimal placement
  • Bluetooth 2.0+ certified
  • Compatible with most Bluetooth phone that support Bluetooth 2.0 and above

Inputs and outputs:
  • 3 Sets of 4V preamp outputs (Front, Rear and Subwoofer)
  • Front 3.5mm Audio Video input
  • Rear Input for Rear Camera
  • 1 Rear Audio video output to connect to an external monitors
  • Rear Audio video input for connection to external source
  • Front USB connection accepts up to a 32Gb
  • Rear USB connection accepts up to a 32Gb
  • SD memory card reader behind faceplate accepts up to a 32Gb memory card
  • Steering wheel control input requires ASWC steering wheel interface
  • Direct connect for iPod with cable - Full on screen control see above for cables

Navigation features:
  • iGO Primo 2.0 navigation software
  • Built in Navigation with 16Gb storage
  • Navigation has mapping information with US, Alaska, Hawaii, and Puerto Rico. Please call for US and Canada or US, Canada, and Mexico as this is sold seperately
  • Hands-free voice guidance with text to speech prompts, so one can keep his eye on road while driving
  • 11 million points of interest and offers real time traffic
  • Lane assist with junction view
  • Detailed 3D topography
  • 3D and 2D views with advanced topography
  • 5 Voice options: English, Spanish, Japanese, Korean, and Mandarin-Chinese
  • Road speed limit warnings
  • Auto detour options

  • Double DIN chassis
  • Dimensions: 7"W x 7-1/4"D x 4"H

Technical Specifications

Manufacturer Rosen Entertainment
Part Number CS-HIGH09-US
Chassis Size Double DIN
Faceplate features Detachable face plate
RCA Pre-amp Audio outputs 3 Pairs (Front, Rear, Sub)
Preamp voltage No
LCD Screen Size 7 inch - 8 inch
Illumination color No
LCD Screen Brightness No
Swivel Screen No
Touchscreen Yes
Widescreen Display 16:9 Widescreen Display
Native Screen Resolution 800x480
Camera Inputs N/A
Front camera input No
Back up camera input Yes
Audio Video inputs No
Front mounted auxiliary input 3.5 mm audio input
Audio Video Outputs 2 Audio/Video outputs
Built-in DVD Player Yes
Disc Playback DVD
Anti-Shock Yes
Dual Zone Control Yes
iPod Audio Connection Yes, Built in
iPod Video Connection Yes, Built in
SD Card input Yes, SD Card
USB input Dual USB
HDMI input No
HDMI output No
Pandora Streaming Yes
Smartphone Compatible Yes
Smartphone Technology No
Modulation NTSC and PAL
Audio Formats Mpeg-3, WMA
Video Formats Divx, MPEG-4
MP3 Playback Yes
Built in Bluetooth Built in Bluetooth
NFC (Near Field Communication) No
HD Radio No
Radio Data Service - RDS No
Satellite Radio Sirius XM Ready
Navigation Built in
Text to Speech Yes
Traffic Tuner No Traffic
Points of Interest 10 - 11 Million
Integration Module No
Steering Wheel Control Input Yes, Built in control
Wireless Remote Control Yes
TV Tuner No Tuner
VGA input No - VGA input
Operation Voltage 12 - 15 Volt DC
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code 686981073112

Write Your Own Review

You're reviewing: DISCONTINUED - Rosen CS-HIGH09-US Factory Look 7 inch Double Din Navigation Receiver for 2008-2012 Toyota Highlander Vehicles

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by, Saturday, June 12, 2055


Will this Double Din radio fit my vehicle?


  • Posted by Store Owner on Wednesday, June 13, 2018
    1. The first way to tell if this will fit your vehicle is to check the size. You need a Double DIN opening, with no obstructions in-front of the screen area.
    2. To check the size you can visit
    3. Enter your vehicle information in the section labeled Vehicle Fit Guide
    4. If a Double DIN dash kit is available you can use this radio.
    5. Click on Metra Radio Install kits to see what part number you need for your Double Din Dash trim
    6. Click on Metra Antenna adaptors to see what part number you need for your Antenna Adapter
    7. Click on Metra Radio Harness Into Car to see what part number you need for your Wiring Harness. Standard harnesses will only work for basic audio systems. If your vehicle is equipped with an amplified audio system you will need a Radio Replacement Interface, those are available by clicking on Replace Factory Radio
    8. Click on Replace Factory Radio to see what part number you need for your Radio Replacement Interface You may see more than one interface listed depending on vehicle options such as steering wheel control, factory back-up camera and various factory audio systems.
    9. You can also call, email or chat with us and we can select the right installation items for your vehicle.
