Clarus RP-92 9.2 Inch Raw LCD Monitor and Panel Display

Clarus RP-92 9.2 Inch Raw LCD Monitor and Panel Display

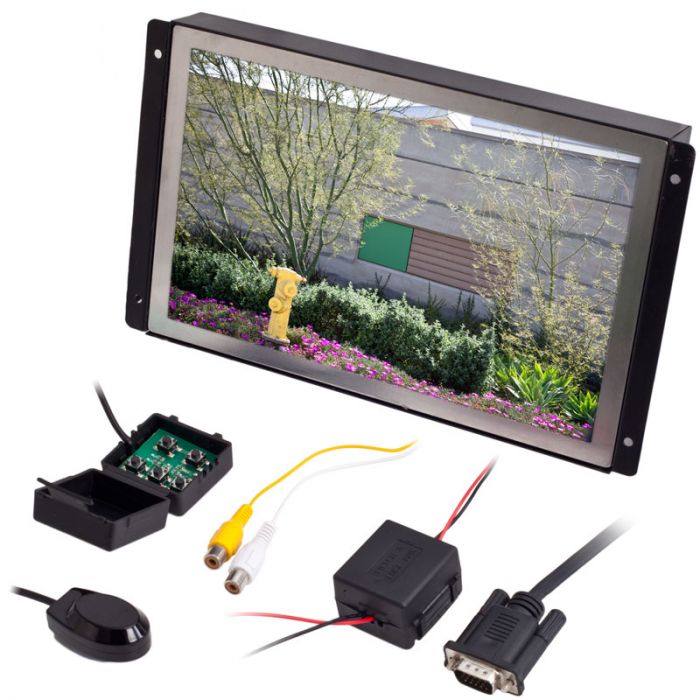

Clarus RP-92 9.2 inch panel mount LCD monitor with flush mount flanges - Main

More Views

Ships Free!

Overall Rating 4.5 (Based on 2 reviews)

Clarus RP-92 Product Highlights

  • 9.2 inch (16:9) TFT LCD display
  • Metal Housed panel mount
  • Wireless and Wired Remote Control
  • Commercial Grade and Rugged
  • Flush Mount Mounting Flanges
  • VGA input
  • 2 RCA video inputs
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Metal housed LCD Monitor, Remote control, and Instruction manual

Clarus has taken panel mount LCD monitors to the next level with our second generation metal housed LCD monitors. The Clarus RP-92 panel mount monitor is the perfect solution to an in-wall or flush mount monitor. These panel mount monitors are perfect for home security systems or home entertainment system that need a high resolution display conveniently flush mounted in the wall or an equipment rack. Our 9.2 inch LCD display operates on 12 volts which makes them very versatile, they can be used in automobiles or home environments. We offer 12 volt power supplies that allow you to use the in non-automotive environments.

Out panel mount monitors have VGA inputs in addition to conventional composite video RCA inputs making them compatible with virtually any video source. The inputs can easily be selected with the wireless remote control or the wired control panel. Cosmetically you can trim the monitor with virtually anything to match your interior.

Clarus RP-92 Raw Panel LCD 9.2 inch features:

  • 9.2 inch (16:9) TFT LCD display
  • Panel mount monitor makes flush mounting very easy
  • Perfect for use with DVR systems that have VGA outputs
  • Can be used as a queuing or teleprompter monitor
  • Unit can be controlled with included wireless remote control and remote sensor
  • Remote sensor has 9 foot cable so that it can be positioned nearly anywhere
  • Display also has a wired remote control for full functionality if wireless remote control is lost or misplaced

Quick specifications:
  • 640 x 234 native pixel resolution
  • 149,760 total pixel count
  • Brightness: 350 cd/m2
  • Contrast ratio: 300:1
  • Signal format: NTSC/PAL auto detect
  • Power source: DC +12V +/- 15%
  • Power consumption: ~500mA
  • Operating temperature: 32°F~140°F
  • Storage temperature: 14°F~158°F
  • Operating humidity: <90%
  • Remote control included

Inputs and Outputs:
  • 1 - VGA input
  • 2 - RCA video inputs
  • 1 - Wired remote control
  • 1 - Wireless remote control sensor

Dimensions and Physical properties
  • Dimensions with flanges: 9-3/4" (W) x 5-3/4" (H) x 1-1/8" (D)
  • Cutout Dimensions: 9-1/16" (W) x 5-3/4" (H) x 1-1/8" (D)
  • Unit weight: 2 lbs

Technical Specifications

Manufacturer Clarus
Part Number RP-92
LCD Screen Size 9 inch - 10 inch
Native Screen Resolution 640 x 234
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 350 Nit
Swivel Screen No
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input Yes - VGA input
Audio Video inputs 2 Video Inputs
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Phone Mirroring No
Housing material Metal
Slide track on back No
Mounting thread for stand mount No
Mount included No
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No

Customer Reviews

camera show very good color images
Review by
Install (5 star for easy)
it has a great screen, shows very good. the only problem I had was the second day I received it the screen turned white( 1st one) the second I received the screen was real dark and could barely see anything. I think the next one I get could be the one. Great customer service thank goodness for warranties (Posted on 10/7/2011)
Review by
Install (5 star for easy)
Best bang for the buck. Lo Definition monitor. Easy to install. LCD backlighting is too dim for use in daylight. I installed this as a viewfinder for a pro-video camera crane. The crew complained that it was too lo definition to focus the camera properly??... (Posted on 5/7/2011)
