Clarus RP-1577HDMI 15.4 Inch Raw LCD Monitor and Panel Display

Clarus RP-1577HDMI 15.4 Inch Raw LCD Monitor and Panel Display

Clarus RP-154 15.4 Inch Raw LCD Monitor - Front right

More Views

Ships Free!

Overall Rating 5 (Based on 1 reviews)

Clarus PC1577HDMI Product Highlights

  • 15.4 inch (4:3) TFT LCD display
  • Metal Housed panel mount
  • Wireless and Wired Remote Control
  • Commercial Grade and Rugged
  • Flush Mount Mounting Flanges
  • HDMI input
  • 2 RCA video inputs
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

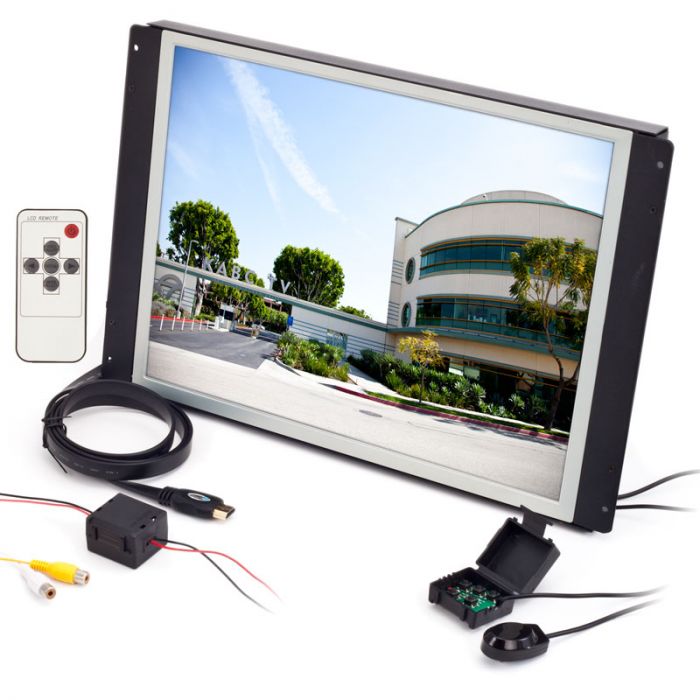

Unit includes: 15.4 inch Metal housed LCD Monitor, Remote control, and Instruction manual

Clarus has taken panel mount LCD monitors to the next level with our second generation metal housed LCD monitors. The Clarus RP-1577HDMI panel mount monitor is the perfect solution to an in-wall or flush mount monitor. This 15.4 inch panel mount monitor is perfect for home security systems or home entertainment system that need a high resolution display conveniently flush mounted in the wall or an equipment rack. The 15.4 inch LCD display operate on 12 volts which makes it very versatile, they can be used in automobiles or home environments. We offer 12 volt power supplies that allow you to use the in non-automotive environments.

The Clarus RP-1577HDMI differs from most other panel mount monitors in that it has an HDMI input making it compatible with nearly any HD video source such as Bluray or a DVR system. In addition to the HDMI input it also has conventional composite video RCA inputs making them compatible with virtually any legacy video source. The inputs can easily be selected with the wireless remote control or the wired control panel. Cosmetically you can trim the monitor with virtually anything to match your interior.

Clarus RP-1577HDMI Raw Panel LCD 15.4 inch features:

  • 15.4 inch (4:3) TFT LCD display
  • Panel mount monitor makes flush mounting very easy
  • Perfect for use with DVR systems that have VGA outputs
  • Can be used as a queuing or teleprompter monitor
  • Unit can be controlled with included wireless remote control and remote sensor
  • Remote sensor has 9 foot cable so that it can be positioned nearly anywhere
  • Display also has a wired remote control for full functionality if wireless remote control is lost or misplaced

Quick specifications:
  • 1024 x 768 native pixel resolution
  • 786,432 total pixel count
  • Brightness: 400 cd/m2
  • Contrast ratio: 450:1
  • Signal format: NTSC/PAL auto detect
  • Power source: DC +12V +/- 15%
  • Power consumption: 2220mA
  • Operating temperature: 32°F~140°F
  • Storage temperature: 14°F~158°F
  • Operating humidity: <90%
  • Remote control included

Inputs and Outputs:
  • 1 - HDMI input
  • 2 - RCA video inputs
  • 1 - Wired remote control
  • 1 - Wireless remote control sensor

Dimensions and Physical properties
  • Dimensions with flanges: 15-1/8" (W) x 10-1/8" (H) x 1" (D)
  • Cutout Dimensions: 14-1/8" (W) x 10-1/8" (H) x 1" (D)
  • Unit weight: 6.8 lbs

Technical Specifications

Manufacturer Clarus
Part Number PC1577HDMI
LCD Screen Size No
Native Screen Resolution 1024 x 768
Widescreen Display 4:3 Normal Aspect Ratio
LCD back light type CCFL
LCD Screen Brightness 350 Nit
Swivel Screen No
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input Yes
VGA input No - VGA input
Audio Video inputs 2 Video Inputs
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input No
USB input No
SD Card input No
Phone Mirroring No
Housing material Metal
Slide track on back No
Mounting thread for stand mount No
Mount included No
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No

Customer Reviews

So Happy to find one with HDMI!
Review by
Install (5 star for easy)
I needed a raw lcd that had HDMI and was 15 inch. I was not able to find any other, other than this one and I am happy that I did. Perfect for my Limo and the picture is beautiful! (Posted on 11/25/2015)

Write Your Own Review

You're reviewing: Clarus RP-1577HDMI 15.4 Inch Raw LCD Monitor and Panel Display

How do you rate this product? *

  1 star 2 stars 3 stars 4 stars 5 stars
Install (5 star for easy)

Ask questions receive answers.

Posted by Edward Thomas, Tuesday, July 28, 2015


Clarus RP-1577HDMI 15.4 Inch Raw LCD Monitor and Panel Display Does this display go to blue screen with loss of composition video in?. If it does, do you sell a model that does NOT?


  • Posted by Brian Gonzales on Friday, May 15, 2015
    A: We do not have a unit that will not go to a blue screen when a video signal is not given.
  • Posted by Mike Yang on Tuesday, July 28, 2015
    A: Unfortunately, most will have the blue screen when there is no video input. We do not sell any models that does not.
