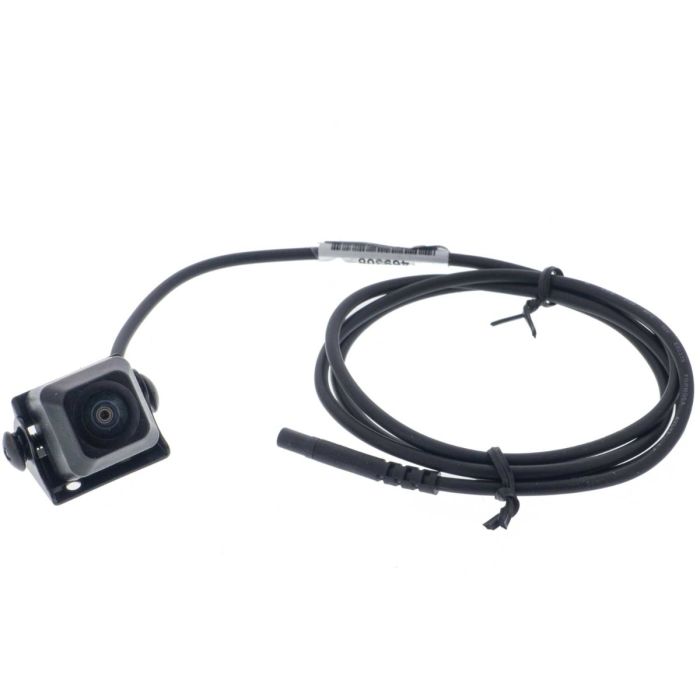

Accelevision RVC1001 Color surface mount camera for front or rear view

In stock

Key Features

  • High resolution CMOS Image senor with 1280(H) x 960(V) resolution
  • Adjustable Mounting Bracket
  • Can be used as a front or reverse camera
Unit includes: Camera, Mounting tab, 20ft pigtail, 6ft pigtail and Instruction manual

Accelevision RVC1001 Color surface mount camera for front or rear view
  • 1/3" color CMOS sensor
  • 2.96mm lense
  • Selectable Mirror or non mirror input wire for front or rear camera use
  • Super small design for easy mounting nearly anywhere
  • Scanning system: 2:1 interface
  • Resolution: 1280(H) x 960(V)
  • AGC: auto White balance: auto
  • Electronic shutter: 1/60 - 1/10,000 second
  • Lens f=2.96mm / F=2.0
  • Illumination: 3 LUX / F 1.2
  • Supply voltage: DC 5-15V
  • Current consumption: 40mA @ DC 12V,
  • Water Proof: IP68
  • Viewing Angle: 170°(diagonal) / 150°(horizontal) / 100°(vertical)
  • One year warranty parts & labor
  • Dimensions without bracket: .8" (W) x 1" (D) x .8" (H)
  • Dimensions without bracket: 1.4" (W) x 1.1" (D) x 1.1" (H)
More Information
Manufacturer Accelevision
Part Number RVC1001
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
Camera diameter 1/3"
Viewing Angle 150 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP68 - Dust; Immersion beyond 1 m
Reverse Image Selectable
Parking grid lines Selectable
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 8-15 Volt DC
Battery Powered Hard wired
Cigarette Lighter Cord Included No
Color Black
Overall Height 0.80 inches
Overall Length 1.00 inches
Overall Width 0.80 inches
Warranty 1 Year
UPC Code 736836555451
Return period 30 days
Exchange period 30 days
