DISCONTINUED - Accelevision RVCCTR1PKG Color Back Up Camera System

DISCONTINUED - Accelevision RVCCTR1PKG Color Back Up Camera System

DISCONTINUED - Accelevision RVCCTR1PKG Color Back Up Camera System

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Accelevision RVCCTR1PKG Product Highlights

  • Heavy Duty Commercial Grade Back Up Camera System
  • Dual Camera Input
  • Mirror / Non Mirrored Option Avaiable
  • 60Ft Heavy Duty Cable
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

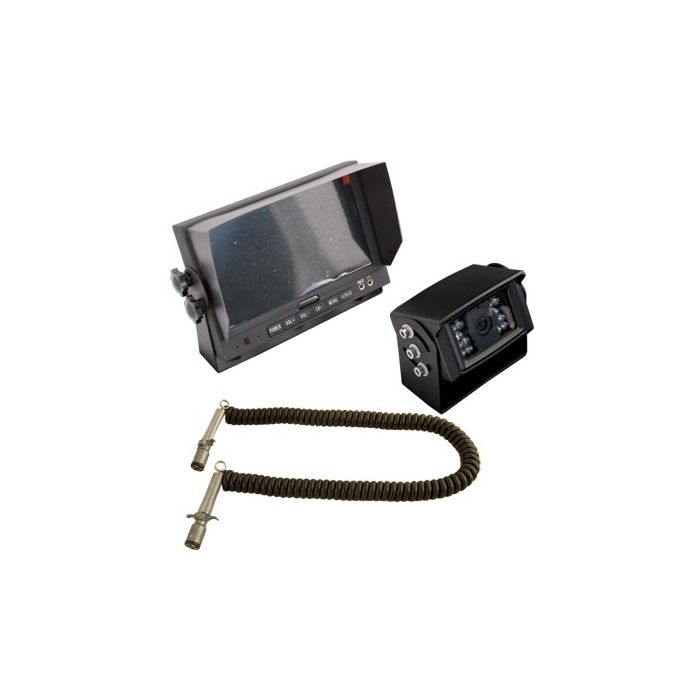

Unit includes: Trailer cable, Back up LCD monitor, Back up camera

Vehicle Trailer RVCCTR1PKG Color Back Up Camera System features:
  • Camera has built in microphone
  • Nightvision - capable of viewing in complete darkness
  • High resolution screen 1440 x 234
  • Sun shroud included for monitor to avoid sun glare
  • 2 camera input
  • Rubberized finish for added durability
  • Oil and gasoline resistant trailer cable
  • Professional cast aluminum cable connectors for years of service
  • Durable powder coat camera finish
  • Cast Aluminum camera housing
  • Back Up Camera Resolution - 425 tv lines
  • Mirror image or Non-mirror image
  • CCD type - 1/3 CCD Color
  • Infrared 28IR LED Nightvision
  • Iris - f2.8 wide angle lens 110 degree angle
  • Back Up Camera Screen Ratio - 16/9, 4/3 selectable
  • Back Up Camera Dimensions (WxHxD) 93mm x 67mm x 58mm
  • Monitor Resolution - 1440 x 234
  • Monitor Dot Pitch .107(H) x .319 (V)
  • Backlight CCFL
  • Brightness 300 NIT
  • Monitor Screen Ratio - 16/9, 4/3 selectable
  • Monitor Display control - Digital/OSD Select
  • Video input - Composite video signal 1Vp-p 75ohm
  • Video connections - 2 (on back of unit)
  • Audio connections - 2 (on back of unit)
  • Video system - NTSC or PAL auto system
  • Front mounted controls for Volume, Brightness, Color, Contrast
  • Monitor Viewing Angle - 130 degrees horizontal, 80 degrees vertical
  • Monitor Dimensions (HxWxD) 5 5/16" x 7 7/8" x 1 9/16" (with stand)

Technical Specifications

Manufacturer Accelevision
Part Number RVCCTR1PKG
LCD Screen Size No
Native Screen Resolution 1440 x 234
Widescreen Display 16:9 Widescreen Display
LCD Screen Brightness No
LCD back light type No
Auto Dimming No
Trigger wire No
Modulation NTSC and PAL
Slide track on back No
Image Flip Function No
Built in Speakers No
Mount included No
Auto on/off No
Cigarette Lighter Cord Included No
Audio Video inputs 2 Video Inputs
Wireless Remote Control No
Monitor Type Stand alone monitor
Mirror Mount Type No
Back up camera type No
Options No
Product Options No
Homelink No
Built in Bluetooth No
Reverse Image Yes - Reverse Image
Camera Sensor type CCD
Camera sensor diameter No
Viewing Angle 130 degrees
Parking grid lines Yes
Built in Microphone No
Infrared Illumination Yes
Waterproof ingress protection No
Battery Powered No
Case included No
Connector Type RCA Cable
Wireless Transmission No
Color Black
Operation Voltage No
Warranty 1 Year
Vehicle Year No
Vehicle Brand No
Vehicle Model No
UPC Code No
