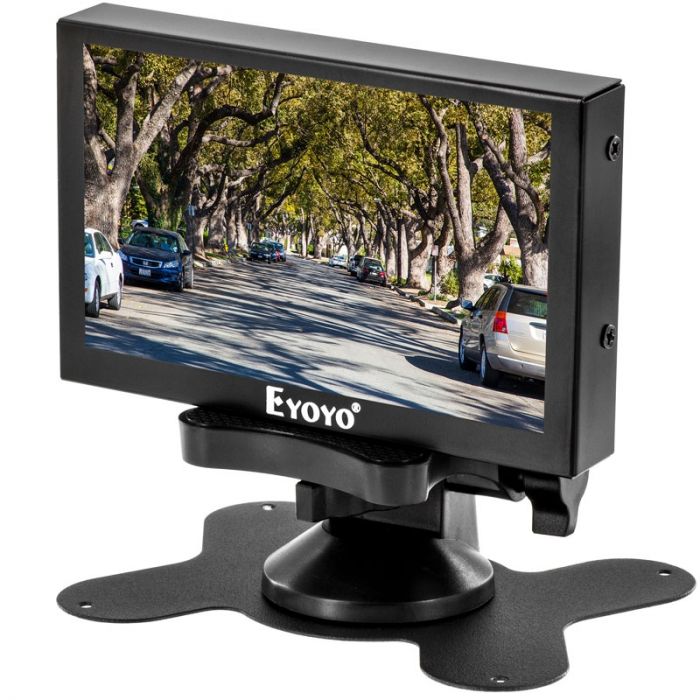

Eyoyo S501H 5 inch Metal Housed LCD Monitor with HDMI, VGA, BNC and Composite Video inputs

Eyoyo S501H 5 inch Metal Housed LCD Monitor with HDMI, VGA, BNC and Composite Video inputs

Eyoyo S501H 5 inch Metal Housed LCD Monitor with HDMI, VGA, BNC and Composite Video inputs - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Eyoyo S501H Product Highlights

  • 5" TFT LCD Monitor
  • Widescreen 16:9 aspect ratio
  • Rugged powder coated metal housed display
  • VGA Input
  • HDMI Input
  • 3.5mm Audio Video Input
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: 5 inch metal housed monitor, AC adapter, USB cable, HDMI cable, VGA cable, Pedestal stand, and Instruction manual

Eyoyo S501H 5 inch Metal Housed LCD Monitor
  • 5" Metal Housed TFT LCD Monitor
  • Rugged powder coated metal housed display for easy flush mounting in bulkheads or instrument panels
  • Rear mounted controls for setup and adjustments
  • Includes wireless remote control
  • Widescreen 16:9 aspect ratio making perfect for high definition sources
  • VGA input for easy connection to chart-plotters or computers
  • HDMI input for easy connection to high definition sources and computers
  • NTSC/PAL Compatible with Auto Recognition
  • On Screen Display for all functions
  • 7 Languages Display (English/Korean/Japanese/German/French/Italian/Spanish)
  • (2) rear threaded nuts for mounting
  • Auto power on with video signal
  • Native Resolution: 800 (W) x 480 (H) pixels
  • Brightness: 400 NIT
  • Dual power inputs, 12 volts via the DC power connector or USB power via micro USB connector
  • Operating Voltage DC 12V
  • Power consumption: 3.6 Watts
    Inputs and Outputs
  • (1) - 3.5mm Audio Video input
  • (1) - BNC composite video connector
  • (1) - VGA input
  • (1) - HDMI input
  • (1) - 12 Volt DC power connection
  • (1) - USB power connection
  • Overall dimensions: 4-7/8" (W) x 3" (H) x 3/4"
  • Screen viewing dimensions: 4-1/4" (W) x 2-9/16" (H)

Technical Specifications

Manufacturer Eyoyo
Part Number S501H
LCD Screen Size 5 inch - 6 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 400 Nit
Swivel Screen No
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock No
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input Yes - VGA input
Audio Video inputs 1 Audio Video Input
Audio Video Outputs None
Composite video input Yes
Front mounted auxiliary input None
USB input Yes
SD Card input No
Phone Mirroring No
Housing material Metal
Slide track on back No
Mounting thread for stand mount No
Mount included Yes, Pedistal stand
Trigger wire No
Image Flip Function No
Quad Screen No
Cigarette Lighter Cord Included No
Operation Voltage 12 - 15 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 3 Inches
Overall Length 0.94 Inches
Overall Width 4.88 Inches
Warranty 1 Year
UPC Code No
