Safesight TOP-SS-D7002Q Water Proof 7 Inch Quad screen LCD monitor with 4 triggered video inputs

Safesight TOP-SS-D7002Q Water Proof 7 Inch Quad screen LCD monitor with 4 triggered video inputs

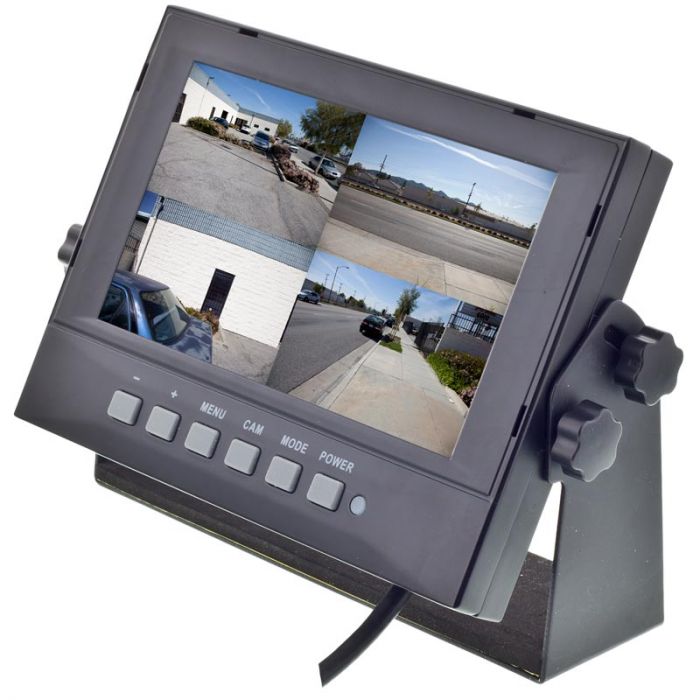

Safesight TOP-SS-D7002Q 7 inch Waterproof LCD monitor - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Accelevision TOP-SS-D7002Q Product Highlights

  • 7" High-Resolution TFT LCD Widescreen monitor
  • IP69K Waterproof monitor
  • 4 Video Inputs
  • Quad screen
  • Adjustable Mounting Bracket
  • removable sun shade
  • 12-24 volt
  • 4 triggered video inputs
  • Perfect for Boats and Yachts or other outdoor equipment
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: 7 inch quad screen monitor, U-bracket, Adjustment screws, Foam Vibration damper, Remote control, and Instruction manual

Safesight LCDM7WP4 Water Proof 7 Inch Quad screen LCD monitor with 4 triggered video inputs features:
  • 7" High-Resolution TFT LCD Widescreen monitor
  • IP69K Waterproof rating, can be completely submerged up to 1 meter of water
  • Quad screen - allows you to view 4 cameras simultaneously
  • 12 positive trigger input for each camera - forces the monitor to turn on and select the video input
  • Each trigger can be set up with a delay - set delay time in monitor menu
  • 4 - 4-pin video inputs
  • Monitor can be set to circulate for a set period of time to each input on a continuous loop
  • Front cam button select - toggles between each video input
  • Front mode button - toggles between Quad screen / Dual screen 1/2 / Dual screen 3/4 / Tri-view 1/3/4
  • Reverse image function for each video input - non reverse cameras can be used as reverse image cameras, monitor will flip image
  • Sturdy metal u-bracket with foam vibration absorption padding
  • Removable sun shade for use in direct sun light
  • 12 - 24 volt capable
  • Durable Cast metal housing with black powder coating for use in marine environments
  • 500:1 contrast ratio
  • 400 Nit brightness
  • Horizontal viewing angle: 140 degree
  • Vertical viewing angle: 110 degree
  • 6 foot power and video input cable
  • 2 Video Inputs
  • Resolution: 800 x 480
  • Dimensions: 7-7/8" (W) x 5-3/4" (H) x 1-5/8" (D)

Technical Specifications

Manufacturer Accelevision
Part Number TOP-SS-D7002Q
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 800 x 480
Widescreen Display 16:9 Widescreen Display
LCD back light type LED
LCD Screen Brightness 400 Nit
Swivel Screen Yes
Touchscreen No
Modulation NTSC and PAL
Built-in DVD Player No
Dual DVD capable No
Last Position Memory No
Anti-Shock Yes
Headphone Transmitter No
Headphone Jack No
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 4 Video Input
Audio Video Outputs No
Composite video input Yes
Front mounted auxiliary input None
USB input No
SD Card input No
Phone Mirroring N/A
Housing material Metal
Slide track on back No
Mounting thread for stand mount No
Mount included Yes, Pedistal stand
Trigger wire Yes
Image Flip Function Yes, reverse image flip
Quad Screen Yes
Cigarette Lighter Cord Included No
Operation Voltage 12 - 24 Volt DC
Ac Adapter included No
Headrest Shroud included No
Headrest Type No
Zipper security cover No
Built in Game System No
Wireless Remote Control Yes
Monitor Color Black
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No
