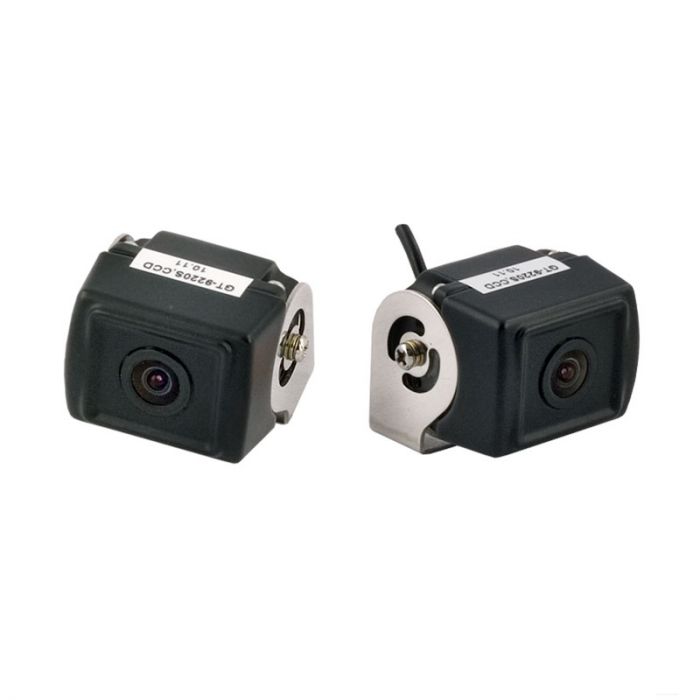

Safesight SC0106 Heavy Duty Commercial RV Back Up CCD Camera with Weatherproof Housing
$106.99
In stock
SKU
SC0106
Expert Knowledge
Talk to a specialist
- CCD Lens
- Weatherproof Housing
- Adjustable Mounting Bracket
- Micro Size
Unit includes: Connectors
Safesight SC0106 Heavy Duty Commercial RV Back Up CCD Camera with Weatherproof Housing
Safesight SC0106 Heavy Duty Commercial RV Back Up CCD Camera with Weatherproof Housing
- Image Sensors: CCD
- Power Supply: DC 12V +-1V
- Power: <1W
- Effective Pixels: 628x582
- Electronic Shutter: 1/60 (NTSC); 1/50 (PAL) - 1/10,000 second
- Minimum Illumination: 0.1 Lux
- S/N Ratio: >48dB
- Resolution (TV Lines): 480 TVL
- TV System: PAL, NTSC
- Lens Angle (degrees): 95/120/150/170
- Video Output: 1.0vp-p, 750hm
- IP Rating: IP66
- White Balance: Auto
- Operating Temperature (degrees Celsius): -30 ~ +70 (RH 95% Max)
- GT-9220S-CCD
- Same size as the SC0105 but with different connector
- RCA connector
- Troubleshooting
- Image Shaking: Adjust and stabilize bracket
- No Image: Check plugs and connections
- Image Blur: Clean camera lens
- Image Slant: Align bracket
| Manufacturer | Safesight |
|---|---|
| Part Number | SC0106 |
| Camera Sensor type | CCD |
| Back up camera type | Surface Mount Camera |
| Waterproof ingress protection | IP66 - Dust; String Water Jets/Waves |
| Connector Type | RCA Cable |
| Modulation | NTSC and PAL |
| Color | Black |
| Return period | 30 days |
| Exchange period | 30 days |
