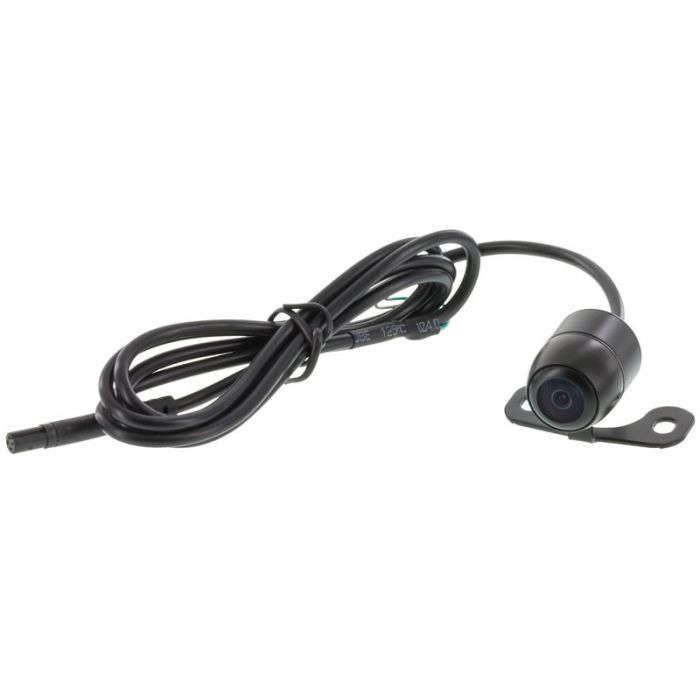

Safesight SC0302LC Micro flush mount back up camera with drill bit
Expert Knowledge
Talk to a specialist
- Flush Mount Camera
- CMD image sensor for better picture quality
- Mini Size Camera
- 170 Degree Wide Angle
- Low Light Sensitive
- Mirror image cut wire allows this camera to be used as a front camera or rear camera and have the proper orientation on screen
- Parking grid line cut wire allows camera to display parking grid or for clear image
Safesight SC0302LC Micro flush mount reverse camera with drill bit:
Safesight SC0302 Backup camera
Add a back up camera to any vehicle, the SC0302 is the most popular low cost camera available. You can prevent a deadly back up accident for under $100 when you combine this with a monitor.
Viewing angle diagram for backup cameras
It's easy to visualize how much you will be able to see directly behind you with this diagram.
- Features:
- CMD image sensor for better picture quality
- Micro flush mount camera - Micro sized
- Drill bit is included for flush mounting in bumper included
- Parking Assist grid lines for better distance determination
- 18 foot RCA cable with integrated power wire for continuous use, not only for backing up great for trailers
- Mirror image cut wire allows this camera to be used as a front camera or rear camera and have the proper orientation on screen
- Parking grid line cut wire allows camera to display parking grid or for clear image
Technical specifications
- 648 x 488 CMD resolution imager
- IP67 waterproof rating
- 170 degree viewing angle
- Camera dimensions: 3/4" (Diameter) x 15/16" (Length)
- 18mm drill hole
| Manufacturer | Safesight |
|---|---|
| Part Number | SC0302LC |
| Camera Sensor type | CMOS |
| Back up camera type | Flush Mount Key hole camera |
| Camera diameter | 5.8 mm |
| Viewing Angle | 170 degrees |
| Waterproof ingress protection | IP67 - Dust; Immersion up to 1 m |
| Reverse Image | Yes - Reverse Image |
| Parking grid lines | Yes |
| Infrared Illumination | No |
| Color | Black |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
