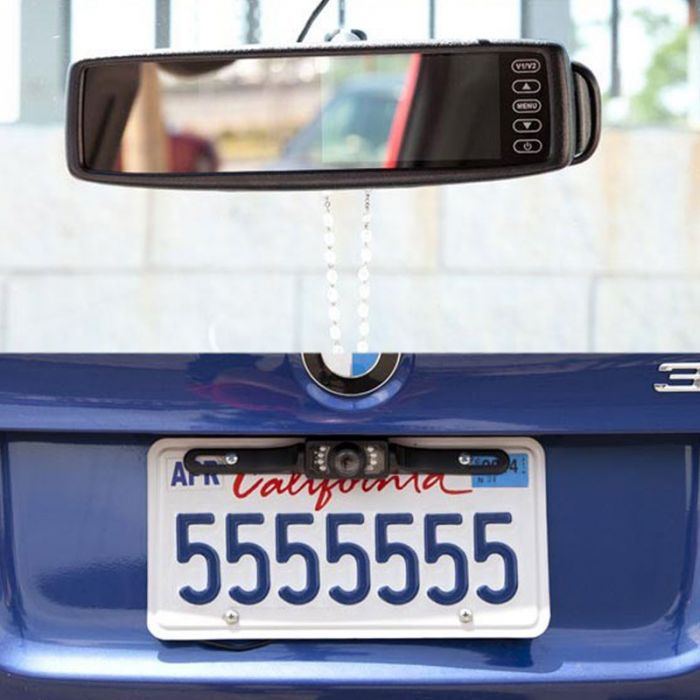

Safesight SC4101-SC0301 Back up camera system with Rearview mirror monitor and license plate camera
More Views
Safesight
Free Shipping on orders $99+
Safesight SC4101-SC0301 Product Highlights
- 4.3" Rearview monitor
- Clip on rear view mirror - will attach to any existing mirror
- License Plate Camera
- IR for Night Vision for perfect viewing in pitch dark areas
- Includes all necessary wiring
- Can be used on any vehicle
- Auto turn on when vehicle is placed in reverse
- Top rated system
Overview
Unit includes: Rearview mirror, License plate back up camera, 18 foot RCA cable, DC power harness, Monitor wiring harness and Mounting accessories
Safesight SC4101-SC0301 Back up camera systemfeatures:
Safesight SC4101-SC0301 Back up camera systemfeatures:
- Monitor features:
- 4.3 inch rearview mirror monitor with easy to mount clip-on attachment
- Rear view mirror is nearly a perfect mirror when the display is off, only a slight variation in reflection
- Side touch button controls for easy adjustments
- (2) Video inputs for rear view camera and other video source
- Auto switching to rear view system when reversing for parking safety
- Resolution: 480 (H) x RGB x 272 (W)
- Brightness: 250 NIT
- Dimensions: 3-1/8" (H) x 10 3/4" (W) x 1 1/8" (D)
- Spring loaded mounting tab maximum height: 3-1/8" (H)
- Spring loaded mounting tab minimum height: 2" (H)
- Spring loaded mounting tab minimum width: 5" (H)
- Aspect Ratio: 16:9
- Power Consumption: <2W
- Power Supply: DC 12V
- Inputs and outputs
- Video Input AV1: VCD/DVD
- Video Input AV2: Back Up Camera
- Signal: NTSC, PAL and Auto
- 1 - 12 volt trigger input
- 1 - 12 volt power input
- Camera features
- Black plastic license place back up camera with adjustable vertical axis
- CMOS image sensor with 8 IR LED's for nightvision and visibility in complete darkness
- Resolution: 380 TV lines
- Image sensor: OV 7910 CMOS
- Lens: 6mm 92°
- Low light illumination (Without LED's on): 1.5 Lux @ F1.2
- Video output: RCA 1.0 @ 75Ω
- Power supply: DC 12V > 75Ω
- Auto switch PAL/NTSC
- Temperature: -10°-50°C
- Camera dim: 1.3" (H) x 8" (W) x 1.2" (D)
Technical Specifications
| Manufacturer | Safesight |
|---|---|
| Part Number | SC4101-SC0301 |
| LCD Screen Size | 3 inch - 4 inch |
| Widescreen Display | 16:9 Widescreen Display |
| Touchscreen | Yes |
| Native Screen Resolution | 480 x 272 |
| LCD Screen Brightness | 250 Nit |
| LCD back light type | LED |
| Auto Dimming | No Dimming |
| Monitor Color | Black |
| Swivel Screen | No |
| Audio Video inputs | 2 Audio Video Inputs |
| Audio Video Outputs | No |
| HDMI input | No |
| USB input | No |
| SD Card input | No |
| Phone Mirroring | No |
| Built in Speakers | No |
| Auto on/off | Yes |
| Trigger wire | Auto video sense trigger |
| Built in FM Modulator | No |
| Built in Bluetooth | No Bluetooth |
| Homelink | No |
| Compass | No Compass |
| Temperature | No Temp |
| Image Flip Function | No |
| Mirror Mount Type | Clip On |
| Back up camera type | License Plate Camera |
| Monitor Type | Rearview mirror monitor |
| Parking grid lines | Yes |
| Recorder Type | N/A |
| NTSC/PAL | NTSC and PAL |
| Wireless Remote Control | Yes |
| Warranty | 1 Year |
| Vehicle Year | N/A |
| Vehicle Brand | No |
| Vehicle Model | N/A |
| UPC Code | No |
Customer Reviews
-
Mixed
Review by Dutch -
The product overall is great quality however the installation instructions are sadly lacking. In my case the mirror/ monitor would not fit over the original mirror in my 2005 Ford Explorer which is just another issue. Installation is absolutely not for the novice (Posted on 1/1/2015)Value Price Install (5 star for easy) Durability Quality -
WOULD BUY AGAIN
Review by BILL -
COMPANY IS EASY TO WORK WITH, PRODUCT AS DESCRIBED (Posted on 5/30/2014)Value Price Install (5 star for easy) Durability Quality -
Well worth the Money!
Review by Al -
License plate Camera mount is great for various vehicles and the clip on rearview mirror display is great! (Posted on 3/27/2014)Value Price Install (5 star for easy) Durability Quality -
good experience
Review by Al -
good quality low price (Posted on 2/12/2014)Value Price Install (5 star for easy) Durability Quality -
This is a GREAT product , price and value
Review by Gary -
I am very happy with this product.It took me about 2 hours to install completely .I had 2 questions before I started and I contacted Quality Mobile and talked to a Tech and he answered my 2 questions so that I understood completely and he was very courteous . (Posted on 12/18/2013)Value Price Install (5 star for easy) Durability Quality -
Happy
Review by John -
Good quality easy to install (Posted on 10/1/2013)Value Price Install (5 star for easy) Durability Quality -
Could be better
Review by James -
I HAD THE ITEM PROFESSIONALLY INSTALLED AND THE IMAGE WAS GREAT, BUT ONLY AT SUNDOWN. THE SUN'S GLARE PREVENTED THE IMAGE FROM BEING SEEN. THE ONLY WAY IT COULD BE EFFECTIVELY USED WAS TO TURN THE REAR VIEW MIRROR DOWNWARD, AND THEN AFTER BACKING UP, TURN THE MIRROR BACK TO THE ORIGINAL POSITION FOR NORMAL DRIVING. I HAVE SENT THE MIRROR BACK TO REPLACE IT WITH A DASH BOARD MONITOR. (Posted on 6/28/2013)Value Price Install (5 star for easy) Durability Quality -
Mostly happy
Review by Loisflmom -
I had this installed professionally, and the technician said it was "about average" in ease/difficulty. I am happy with the screen on the mirror. I am NOT happy with the color-- some colors are vibrant, some, especially greens are washed out, really more grey than green. (Posted on 4/3/2013)Value Price Install (5 star for easy) Durability Quality -
Excellent Product
Review by Johnny be good -
I bought this for my parents as we were concerned about them backing into things. This item solved there problems and then some. We are no longer concerned about them backing up and hitting something. This item was relatively easy to install (2-3 hours), it was easy to hook up but taking the car apart took the longest part of my time. (Posted on 1/9/2012)Value Price Install (5 star for easy) Durability Quality -
i would buy this product again and again
Review by Big Dummy -
if ordering this product order another set of rca cables. the cables it came with did not work and are very cheaply made. The only bad is in bright Day light the video screen is hard to see. A quick solution is to flip your manual dimming lever on your mirror, that will take the glare off. (Posted on 9/20/2011)Value Price Install (5 star for easy) Durability Quality -
Good quality, let pro install, zoom?
Review by Joey -
Perfect!!! (Posted on 7/17/2011)Value Price Install (5 star for easy) Durability Quality -
Back Up Camera
Review by Anthony -
This back up camera system is great! The license plate camera is easy to install, the mirror is beautiful. This mirror can actually be used as a mirror during the day, unlike many other mirrors. (Posted on 6/30/2011)Value Price Install (5 star for easy) Durability Quality
Write Your Own Review
Ask questions receive answers.
Posted by , Friday, July 25, 2014
Question:
i have a 2011 dodge ram 1500 outdoorsman will this work for my truck
Answers:
-
Posted by on Friday, July 25, 2014A:
Yes, this will work no problem. Might run into an issue with the video cable being too short. But an extension cable can be purchased to meet your needs.
Thanks
1
Answer
Posted by , Friday, October 11, 2013
Question:
Are there any user guides for sc4101-sc0301 backup system. i.e. how to use the monitor features like using the parking grill?
Answers:
-
Posted by on Friday, October 11, 2013A:
The parking guide lines / grid comes on automatic. You will be able to determine the distance of an object by the color of the line object is in.
Posted by , Friday, May 31, 2013
Question:
When the veh is not in reverse, does it function as a normal rear view mirror?
Answers:
-
Posted by on Friday, May 31, 2013A:
Yes, when the monitor is off it will act like a rear view mirror. It has a thin film across the display which will act like a reflector.
Posted by , Thursday, May 9, 2013
Question:
Is this unit both wireless and wired direct to mirror?
Answers:
-
Posted by on Thursday, May 9, 2013A:
The back up camera system is a Wired Unit. So a video cable will be sent from camera to monitor.
