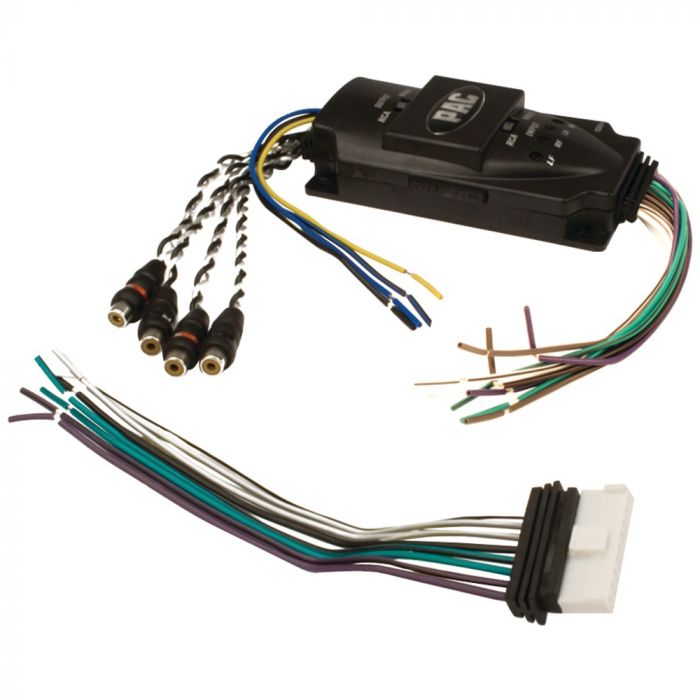

PAC SOEM-4 4-Channel Premium Line-Out Converter with Remote Turn-On Trigger
$32.99
Out of stock
SKU
SOEM-4
Expert Knowledge
Talk to a specialist
- Programmable input and output circuitry with slide switches, which allows connection of RCA level or speaker level input and output
- DC coupling circuit ensures noise free integration and no load induced on the factory system
- Does not use resistors that can stress a factory radio's circuitry
- Utilizes signal sense to detect when audio is present in the device, and creates a 12V output usable for triggering an external amplifier
Unit Includes: 4-Channel Premium Line-Out Converter and Instruction manual
PAC SOEM-4 4-Channel Premium Line-Out Converter with Remote Turn-On Trigger
PAC SOEM-4 4-Channel Premium Line-Out Converter with Remote Turn-On Trigger
-
Features:
- The SOEM-4 is a one-device solution for today's vehicle sound systems. It features programmable input and output circuitry with slide switches, which allows connection of RCA level or speaker level input and output
- DC coupling circuit ensures noise free integration and no load induced on the factory system
- Does not use resistors that can stress a factory radio's circuitry
- Utilizes signal sense to detect when audio is present in the device, and creates a 12V output usable for triggering an external amplifier
- Designed to be connected in the rear of the vehicle for quick installation
- Adjust level controls independently
- Linear 20 Hz to 20,000 Hz output based on input signal
- Transformer isolated for optimal sound and performance
- Maintains correct phasing
- 60 watts maximum input per channel
-
Possible configurations
- Using a factory premium amplifier with an aftermarket head unit
- Four channel line out converter for adding amplifiers to a standard factory speaker system
- Adding aftermarket amplifiers to a factory premium amplified system (Bose, JBL, etc.)
- Installing a radio with floating ground speaker outputs to a common ground speaker system
| Manufacturer | PAC |
|---|---|
| Part Number | SOEM-4 |
| Number of Channels | 4 Channel |
| Remote turn on circuit | Yes |
| Warranty | 1 Year |
| UPC Code | 606523108157 |
| Return period | 30 days |
| Exchange period | 30 days |
Write Your Own Review
What is a Line Output Converter (LOC)?
A Line Output Converter (LOC) is an essential car audio device that converts high-level speaker outputs from a factory radio or amplifier into low-level RCA signals that aftermarket amplifiers can use.
Why Do You Need a Line Output Converter?
Most factory head units do not have dedicated RCA preamp outputs. A LOC bridges the gap by stepping down high-voltage speaker signals (typically 2–20 volts) into clean low-level signals (0.5V–5V) suitable for amplifiers.
Types of Line Output Converters
| Type | Power Source | Advantages | Disadvantages | Best For |
|---|---|---|---|---|
| Passive LOC | No power needed | Simple, inexpensive, reliable | Lower output, potential bass loss | Basic systems |
| Active LOC | Requires +12V power | Higher output, cleaner signal, adjustable gain | More expensive | High-performance systems |
Key Features
- High-level speaker wire inputs
- Low-level RCA outputs (2 or 4 channels)
- Gain control for output level adjustment
- Ground isolation to reduce noise
- Remote turn-on output with signal sense
- Vehicle-specific T-harnesses (plug & play)
Common Applications
- Adding aftermarket subwoofers and amplifiers
- Upgrading factory speakers with external amplification
- Integrating DSP processors
- Creating hybrid factory + aftermarket audio systems
Pro Tip: For vehicles with multiple amplifiers, an SPDT relay is often recommended for proper remote turn-on functionality.
