Swann SWDVK-810004-US DVR8-1000 8-Channel 500GB HDD DVR with Four Pro-530 Cameras

Swann SWDVK-810004-US DVR8-1000 8-Channel 500GB HDD DVR with Four Pro-530 Cameras

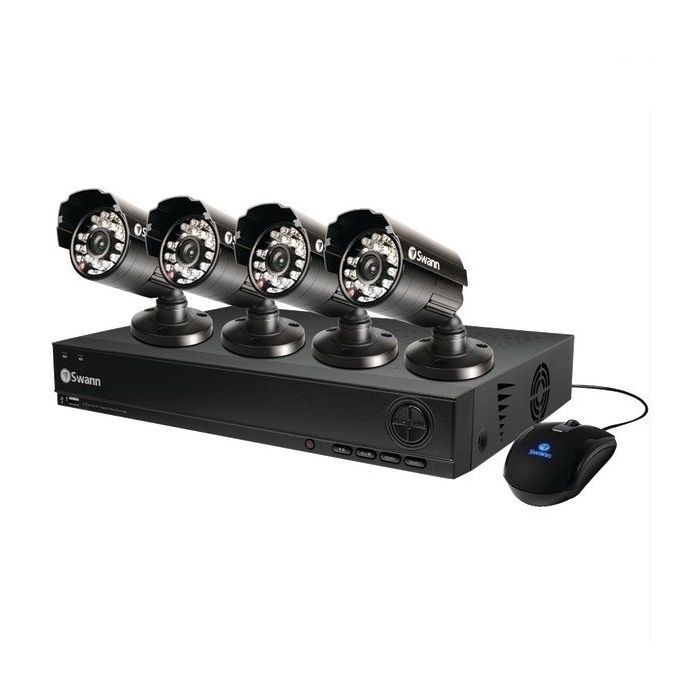

Swann SWDVK-810004-US DVR8-1000 8-Channel 500GB HDD DVR with Four Pro-530 Cameras-main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Swann SWDVK-810004-US Product Highlights

  • The DVR system comes complete with four high-resolution cameras, offering 600TV lines of resolution with a 1/3" Swann TruColor sensor and has powerful IR night vision and includes 60 ft coaxial cable per camera.
  • The system is expandable with provision to connect up to 4 more cameras for a full 8-channel security system
  • The DVR features a 500 GB HDD and can record continuously from 8 channels for more than 15 days, which can be stretched even longer with motion detection active.
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


The Unit Includes: DVR with Installed HDD, 4 Cameras, HDMI Cable, four 60' Pre-Terminated Video/Power Cables, two 4-into-1 Camera Power Adapters, 110 V AC/12V DC DVR Power Adapter, Remote Control, USB Mouse, Ethernet Cable, Camera Mounting Hardware, 4 Theft-Deterrent Stickers, Limited 1-Year Warranty

Swann SWDVK-810004-US DVR8-1000 8-Channel 500GB HDD DVR with Four Pro-530 Cameras

DVR Video features:
  • 8 Channels with installed 500GB HDD
  • Up to 1920x1080 Display Resolution
  • Manual, Motion, and Scheduled Recording
  • Multiple Users and Access Levels
  • Remote Internet, Android/iOS App Access
  • Four Indoor/Outdoor, Day/Night Cameras
  • 600 TV Lines, 728x488 Resolution
  • 24 IR LEDs with 65' Night Vision Range
  • IP67 Rated, Water and Dustproof
  • NTSC or PAL Video Signal Type
  • Display Resolutions: 1024 x 768, 1280 x 1024, 1280 x 720, 1920 x 1080
  • Display Frame Rate: 30 FPS per channel (NTSC), 25 FPS per channel ( PAL)

DVR Internet features:
  • LAN Connection
  • One RJ45 port Network Interface
  • TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP Network Protocols
  • Remote Operation with IE, MyDVR, CMS, SwannView
  • DNS Support
  • UPnP Support

DVR Video inputs and outputs:
  • 4 x Channels BNC Video Inputs
  • VGA, HDMI Video Outputs
  • Camera features:
  • 1/3" CMOS Swann TruColor sensor
  • 4.8mm lens with 58° viewing angle
  • 600 TVL, 728x488 resolution
  • 24 IR LEDs with 65' night vision range
  • Includes 60' of pre-terminated video/power cable for installation
  • IP67 rated housing is water and dustproof

Technical Specifications

Manufacturer Swann
Part Number SWDVK-810004-US
Max DVR Channels 8 channel
DVR HDD Capacity 2 TB
Length 60 Feet
Wireless Transmission No, wired connection
Infrared Illumination Yes
Built in Microphone No
Included cameras 4 cameras
Imager Manufacturer No
Camera Sensor type CMOS
Sensor Size 1/3 inch
Camera diameter No
Lines of Resolution 600
Minimum Illumination 0 Lux (IR on)
Color Camera Yes
Viewing Angle 60 degrees
IR LED Count 24
Infra-Red Wavelength No
Zoom No
Gain Control No
Dynamic Range (dB) No
Focus Auto
AGC (Automatic Gain Control) No
IR range (ft) No
OSD (On Screen Display) No
Lens Included No
Lens Type Fixed focal length
Electronic Shutter Auto
Relative Aperture (F-stop) No
Focal Length (mm) 4.8mm
Color Black
Housing material Metal
Vandal-proof No
Outdoor Yes
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Battery Powered Hard wired
Ac Adapter included Yes
Operation Voltage No
Power consumption Amps No
Connector Type No
Signal type IP-Based
Warranty 1 Year
UPC Code 815849014589
