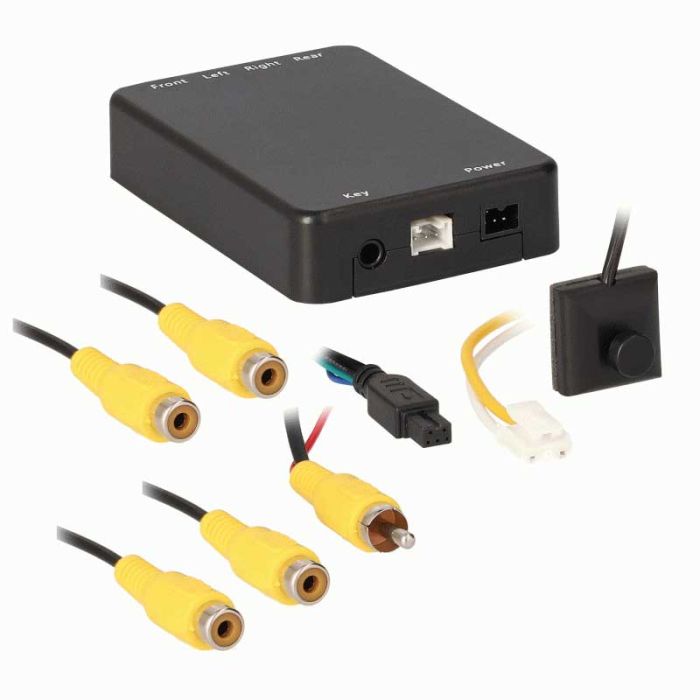

Install Bay TE-TSI4 Video Interface with four camera inputs

Convert any monitor including your existing navigation monitor into a monitor with triggered video inputs. The TE-TSI screen processor is basic processor that allows you to connect 4 cameras, each with a triggered input, to any monitor that accepts a video input. The TE-TSI has camera inputs for four cameras, as part of the harness, it provides power for each camera making the installation as easy as running a cable. The TE-TSI has triggered inputs for each of the four cameras, so anytime you turn with a signal it will trigger the camera in the direction you are turning. The sytem will auto select the reverse camera when the vehicle is placed in reverse preventing a deadly reversing accident. The Safesight TOP-SS-B403Q is the best quad processor available

Features:
• Converts any single input monitor or factory navigation screen to a 4 input camera system
• 4 - Triggered video inputs for automatic viewing modes (Left, Right, Front and Rear camera triggers)
• Compact control box makes it easy to add to any vehicle
• 4 camera inputs for front, rear, left side, and right side cameras
• Camera cables have power connectors making very easy to connect cameras to a single power source
• Power connectors for each camera
• 4 direct camera button wired remote control
• Operates from 9 ~ 15V
• Supports a maximum of 4 x 400 mA camera power output

Screen modes:
• Manual single camera view: Camera can be selected manually with wired remote control for the Front, Left side, Right side, and Rear camera
• Automatic single camera view: Camera view is triggered automatically for the Rear, Left side, and Right side camera (Requires trigger connection)

Inputs and Outputs
• 4 - RCA camera inputs
• 4 - DC power outputs for cameras
• 1 - Soft touch power button
• 1 - 4 camera key wired remote control
• 1 - RCA video output
• 1 - Monitor reverse trigger output
• 1 - Right camera trigger (Yellow wire)
• 1 - Rear camera trigger (Blue wire)
• 1 - Left camera trigger (Grey wire)
• 1 - 12 volt power input (Red wire)
• 1 - Ground connection (Black wire)

Specifications
• Operating Temperature: -20 Celsius - +70 Celsius
• Storage Temperature: -30 Celsius - +80 Celsius
• Power for cameras: max 4 x 400 mA 12V

Video input
• Video inputs: 4 video inputs for cameras:
• Peak value: 1Vp-p
• Impedance: 4.7K ohm

Video output
• Video inputs: 2 video output for monitor or DVR
• Peak value: 1Vp-p
• Impedance: 75 ohm
