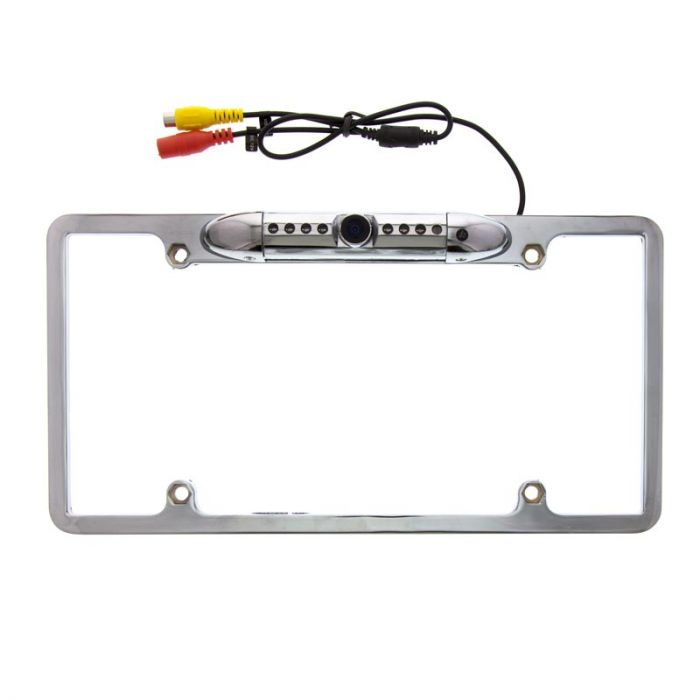

Safesight TOP-100IRC License Plate Frame Camera - Chrome

Rating:
90 % of 100
$96.99
In stock
SKU
TOP-100IRC

Key Features

Safesight TOP-100IRC License Plate Frame Camera - Chrome
Unit includes: License plate back up camera, Mounting bolts, Bolt caps, and Instruction manual

Safesight TOP-100IRC License Plate Frame Camera - Chrome Features:

  • High sensitive built-in 1/3" DSP color CCD
  • 520 TVL Horizontal Resolution
  • Remarkable true color reproduction
  • Remarkable low lux performance of 0.3 lux @ F2.0
  • Excellent auto white balance
  • Waterproof (IP67) reverse image
  • Optional non-reverse image with separate adapter cable
  • 175° viewing angle
  • Chrome
  • Imager: 1/3" DSP Color CCD, (High sensitive)
  • Effective Pixels: NTSC : 768(H)X494(V)
  • Horizontal resolution: 520 TV Lines
  • Total number of pixels: NTSC: 380K
  • Min.Illumination: 0.3 Lux at F2.0
  • Synchronizing system: Internal
  • Scanning system: 2:1 Interlaced
  • Video output: 1Vp-p 75 ohm composite
  • S/N Ratio: More than 48dB
  • Electronic iris: 1/50,1/60-1/100,000 sec.
  • Smear effect: 0.005%
  • Gamma correction: r = 0.45
  • White balance: Auto.2100'K - 9100'K
  • Gain control: Auto. 4dB - 30dB
  • Lens mount: 1.56mm Board Lens (175˚ D)
  • MTBF: 80,000 hours
  • Power source: DC12V(Tolerance: 7V-24V)
  • Built-in transient impulse protection circuit
  • Operating current: 70mA w/regulated power in.
  • Operating Temp: -4˚ F~122˚ F ( -20˚ C~ + 50˚ C )
  • Storage Temp: -40˚ F~176˚ F ( -40˚ C~ + 80˚ C )
  • Humidity: Within 90% RH
  • Measurement: Camera Size: 3.70(L) x 0.63(D) (Camera)
More Information
Manufacturer Accelevision
Part Number TOP-100IRC
Back up camera type License Plate Camera
Viewing Angle 175 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP67 - Dust; Immersion up to 1 m
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination Yes
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12-15 Volt DC
Battery Powered Hard wired
Color Chrome
Warranty 1 Year
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Safesight TOP-100IRC License Plate Frame Camera - Chrome
Your Rating
Customer Questions
How do I add a cameras or a multi-camera system to my factory radio display?
This can be done by using a screen interface or add-a-camera harness.
