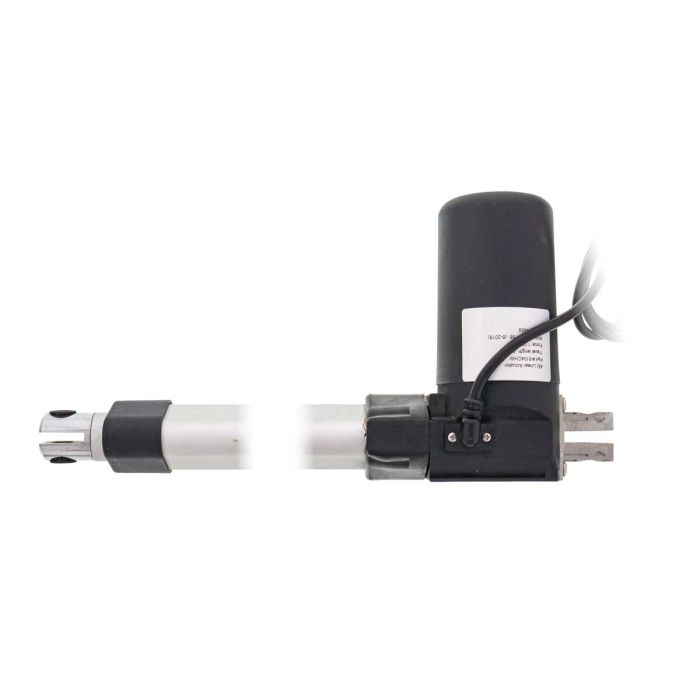

Power motorized panels, amplifier racks, displays, hatches, hidden compartments, and other custom projects with the TOP-A6112CW3 12-volt linear actuator. This heavy-duty actuator provides a 12-inch stroke and supports loads up to 300 pounds. It travels at up to 1.25 inches per second without a load and approximately 0.3 inch per second at its full rated load. Fixed internal limit switches automatically stop the motor at each end of its travel, while built-in reed-switch feedback allows compatible control systems to monitor actuator position. Additional features include an IP66 water-resistant anodized aluminum housing, internally lubricated jack screw, polarity-reversing motor control, and an S2 intermittent-duty rating. Current consumption is approximately 3 amps without a load and 8 amps at full load.
Features:
- Stroke 12"
- Speed per second 1.25 inch per second no load
- Speed per second .3 inch per second at full rated load
- Useful load pounds: 300
- Power consumption 3 amps at 12vdc no load
- Power consumption 8 amps at 12vdc at full load
- Built in limit switches
- Anodized Aluminum Housing
- Internally lubricated jack screw
- Side mounted DC motor
- Built in reed switch for feedback as to where the actuator is in its extension, used in control systems
- Fixed internal limit switches
- IP 66 waterproof rating
- S2 Duty cycle rating
- Operating Temperature: -26C - 65C
Dimensions:
- Closed Overall Length: 20-3/4"
- Open Overall Length: 25"
- Closed Length Center Eyelet to Eyelet Length: 19-3/4"
- Open Center Eyelet to Eyelet Length: 24"
Connections:
- Red wire - Reed wire with variable resistance for actuator location
- Black wire - Reed wire with variable resistance for actuator location
- Blue wire - Actuator motor positive or negative depending on direction
- Brown wire - Actuator motor positive or negative depending on direction
