Safesight TOP-G90SHD 1/3" 2.1 Megapixel 1080p HD-SDI Panasonic CMOS CCTV camera - 12VDC

Safesight TOP-G90SHD 1/3" 2.1 Megapixel 1080p HD-SDI Panasonic CMOS CCTV camera - 12VDC

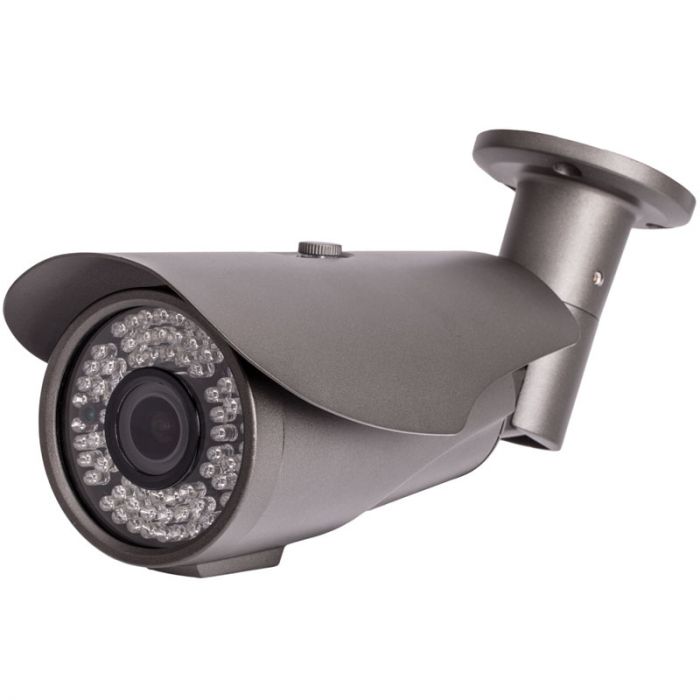

Safesight TOP-G90SHD 1080p HD-SDI Panasonic CCTV camera - Front

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-G90SHD Product Highlights

  • 1/3" 2.1 Megapixel Panasonic CMOS image sensor
  • Progressive scan 1080p output
  • 2.8-12mm Variofocal manual zoom lens with external adjustments
  • HD-SDI BNC output
  • Composite video BNC output
  • Outdoor Vandal-resistant
  • 72 Infrared LED lighting with 180 foot range
  • Compact housing
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: HD-SDI Camera, Mounting hardware, Wall anchors, Allen key, and Instruction manual

HD-SDI is the future of analog and the alternative to IP cameras. This 2.1 megapixel HD-SDI Outdoor Camera features a progressive scan CMOS image sensor and delivers up to 1920 x 1080 (1080p) full HD resolution at 30 fps (frames per second). Images are sharp, detailed and incredibly lifelike. With integrated nightvision infrared LED's this camera can see in complete darkness with a maximum range of 180 feet. Now you can protect even the darkest of areas.

Three reasons to consider HD-SDI:

1080p HD resolution

HD-SDI cameras offer image quality that is far superior to traditional analog cameras. You can now get the image detail that you need. HD-SDI is a cost-effective video surveillance solution that's easy to install and integrate with existing CCTV systems.

Use existing cabling

HD-SDI utilizes existing coaxial cabling that is already in place when upgrading to HD cameras to keep the cost of installation down. HD-SDI uses RG59, RG6, RG11 cabling without the need for converters / encoders or running new ethernet lines

Save money

With limited budgets, HD-SDI systems provide a cost effective solution. A hybrid HD-SDI system allows you to utilize existing analog CCTV cameras and cables and add HD cameras as you need them.

The TOP-G90SHD is very similar to the TOP-D90SHD camera as they use the exact same image sensor, however the TOP-G90SHD is in a smaller housing making it easier to mount in tighter locations.

Safesight TOP-G90SHD 1/3" 2.1 Megapixel 1080p HD-SDI Panasonic CMOS CCTV camera features:

  • 1/3" 2.1 Megapixel Panasonic CMOS image sensor
  • Progressive scan 1080p output
  • 1920 x 1080 (1080p) full HD resolution @ 30 fps
  • HD-SDI BNC output
  • Composite video BNC output
  • 2.8-12mm Variofocal manual zoom lens with bottom external hex key adjustments
  • 72 Infrared LED lighting with 180 foot range
  • Built-in Digital Noise Reduction to eliminate noise from your video with three settings: Low / Medium / High
  • IP66 weather rated
  • Built-in Automatic Gain Control for addional low and high light level picture quality
  • HD-SDI cameras require HD-SDI DVRs

On Screen controls for:
  • Fixed or auto iris control
  • Manual or auto shutter
  • Light flicker correction - Used in situations with fluorescent lighting
  • Night sensitivity
  • Automatic gain control
  • HLC control block certain areas of high brightness and add brightness to surrounding areas
  • Back-light adjustment to compensate for areas of high brightness
  • WDR - allows adjustment of areas of low brightness can be seen while viewing areas of high brightness
  • White balance - Auto / Preset / Manual
  • DNR - Low / Middle / High
  • Image sharpness
  • Image gamma
  • Color gain
  • Mirror image - Flip images horizontally
  • Flip image - Flip images vertically
  • Digital zoom
  • Adaptive color enhancement
  • Lens shading
  • Privacy area - Block seeing through neighbors windows

  • Mounting bracket dimensions: 3-1/8" Diameter x 3-7/8" Height
  • Dimensions to pivot on elbow arm: 3-3/8"W x 8-1/2"D x 4"H

Digital Noise Reduction (DNR) eliminates noise that is created in the image by applying a digital comb filter. In low light levels, the camera compensates for a lack of light by slowing the shutter speed and opening the iris to allow more light. The camera also applies additional gain to increase the light level, this process causes noise, DNR compensates for this and increases picture quality.

Technical Specifications

Manufacturer Safesight
Part Number TOP-G90SHD
Max DVR Channels No
DVR HDD Capacity No
Length 1.5 Feet
Wireless Transmission No, wired connection
Infrared Illumination Yes
Built in Microphone No
Included cameras No
Imager Manufacturer Panasonic
Camera Sensor type CMOS
Sensor Size 1/3 inch
Camera diameter No
Lines of Resolution 1080p
Minimum Illumination .001 Lux
Color Camera Yes
Viewing Angle 120 degrees
IR LED Count 72
Infra-Red Wavelength 850nm
Zoom No
Gain Control Yes
Dynamic Range (dB) More than 50db
Focus Auto
AGC (Automatic Gain Control) Built In
IR range (ft) 90ft to 100ft
OSD (On Screen Display) Yes
Lens Included Yes
Lens Type Manual Zoom
Electronic Shutter Auto
Relative Aperture (F-stop) 1.2
Focal Length (mm) 2.8 - 12mm
Color Dark Grey
Housing material Metal
Vandal-proof Yes
Outdoor Yes
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Battery Powered Hard wired
Ac Adapter included No
Operation Voltage 12 - 15 Volt DC
Power consumption Amps 850
Connector Type BNC Connector
Signal type Hybrid HD-SDI and BNC
Warranty 1 Year
UPC Code No
