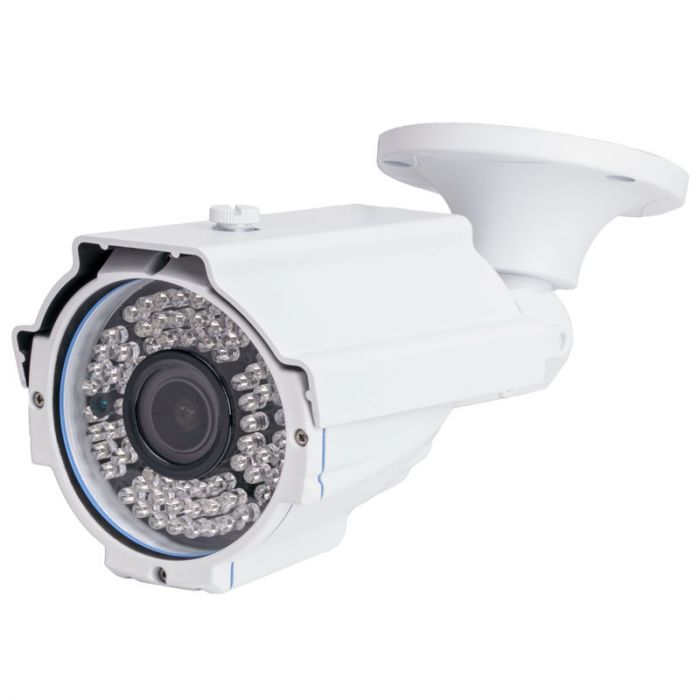

Safesight TOP-P90SHD 1/3" 2.1 Megapixel 1080p HD-SDI Panasonic CMOS CCTV camera - 12VDC
Special Price
$149.99
Regular Price
$203.99
In stock
SKU
TOP-P90SHD
Expert Knowledge
Talk to a specialist
- 1/3" 2.1 Megapixel Panasonic CMOS image sensor
- Progressive scan 1080p output
- 2.8-12mm Variofocal manual zoom lens with external adjustments
- HD-SDI BNC output
- Composite video BNC output
- Outdoor Vandal-resistant
- 72 Infrared LED lighting with 180 foot range
- Small compact white housing
Unit includes: HD-SDI Camera, Mounting hardware, Wall anchors, Allen key, and Instruction manual
Features:
On Screen controls for:
Dimensions:
Digital Noise Reduction (DNR) eliminates noise that is created in the image by applying a digital comb filter. In low light levels, the camera compensates for a lack of light by slowing the shutter speed and opening the iris to allow more light. The camera also applies additional gain to increase the light level, this process causes noise, DNR compensates for this and increases picture quality.
HD-SDI is the future of analog and the alternative to IP cameras. This 2.1 megapixel HD-SDI Outdoor Camera features a progressive scan CMOS image sensor and delivers up to 1920 x 1080 (1080p) full HD resolution at 30 fps (frames per second). Images are sharp, detailed and incredibly lifelike. With integrated nightvision infrared LED's this camera can see in complete darkness with a maximum range of 180 feet. Now you can protect even the darkest of areas.
Three reasons to consider HD-SDI:
1080p HD resolution
HD-SDI cameras offer image quality that is far superior to traditional analog cameras. You can now get the image detail that you need. HD-SDI is a cost-effective video surveillance solution that's easy to install and integrate with existing CCTV systems.
Use existing cablingHD-SDI utilizes existing coaxial cabling that is already in place when upgrading to HD cameras to keep the cost of installation down. HD-SDI uses RG59, RG6, RG11 cabling without the need for converters / encoders or running new ethernet lines
Save moneyWith limited budgets, HD-SDI systems provide a cost effective solution. A hybrid HD-SDI system allows you to utilize existing analog CCTV cameras and cables and add HD cameras as you need them.
The TOP-P90SHD is very similar to the TOP-N90SHD camera as they use the exact same image sensor, however the TOP-P90SHD is in a smaller and more compact housing making it easier to mount in tighter locations while offering greater range of motion.
Safesight TOP-P90SHD 1/3" 2.1 Megapixel 1080p HD-SDI Panasonic CMOS CCTV camera - 12VDC features:Features:
- 1/3" 2.1 Megapixel Panasonic CMOS image sensor
- Progressive scan 1080p output
- 1920 x 1080 (1080p) full HD resolution @ 30 fps
- HD-SDI BNC output
- Composite video BNC output
- 2.8-12mm Variofocal manual zoom lens with external adjustments
- 72 Infrared LED lighting with 180 foot range
- Built-in Digital Noise Reduction to eliminate noise from your video with three settings: Low / Medium / High
- IP66 weather rated
- Built-in Automatic Gain Control for additional low and high light level picture quality
- HD-SDI cameras require HD-SDI DVRs
On Screen controls for:
- Fixed or auto iris control
- Manual or auto shutter
- Light flicker correction - Used in situations with fluorescent lighting
- Night sensitivity
- Automatic gain control
- HLC control block certain areas of high brightness and add brightness to surrounding areas
- Back-light adjustment to compensate for areas of high brightness
- WDR - allows adjustment of areas of low brightness can be seen while viewing areas of high brightness
- White balance - Auto / Preset / Manual
- DNR - Low / Middle / High
- Image sharpness
- Image gamma
- Color gain
- Mirror image - Flip images horizontally
- Flip image - Flip images vertically
- Digital zoom
- Adaptive color enhancement
- Lens shading
- Privacy area - Block seeing through neighbors windows
Dimensions:
- Mounting bracket dimensions: 4" Diameter x 1-3/4" Height
- Dimensions to pivot on elbow arm: 4"W x 8-1/2"D
Digital Noise Reduction (DNR) eliminates noise that is created in the image by applying a digital comb filter. In low light levels, the camera compensates for a lack of light by slowing the shutter speed and opening the iris to allow more light. The camera also applies additional gain to increase the light level, this process causes noise, DNR compensates for this and increases picture quality.
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-P90SHD |
| Length | 1.5 Feet |
| Wireless Transmission | Wired connection |
| Infrared Illumination | Yes |
| Built in Microphone | No |
| Imager Manufacturer | Panasonic |
| Camera Sensor type | CMOS |
| Sensor Size | 1/3 inch |
| Lines of Resolution | 1080p |
| Minimum Illumination | .001 Lux |
| Color Camera | Yes |
| Viewing Angle | 120 degrees |
| IR LED Count | 72 |
| Infra-Red Wavelength | 850nm |
| Gain Control | Yes |
| Dynamic Range (dB) | More than 50db |
| Focus | Auto |
| AGC (Automatic Gain Control) | Built In |
| IR range (ft) | 90ft to 100ft |
| OSD (On Screen Display) | Yes |
| Modulation | NTSC and PAL |
| Lens Included | Yes |
| Lens Type | Manual Zoom |
| Electronic Shutter | Auto |
| Relative Aperture (F-stop) | 1.2 |
| Focal Length (mm) | 2.8 - 12mm |
| Color | White |
| Housing material | Metal |
| Vandal-proof | Yes |
| Outdoor | Yes |
| Waterproof ingress protection | IP66 - Dust; String Water Jets/Waves |
| Battery Powered | Hard wired |
| Ac Adapter included | No |
| Operation Voltage | 12-15 Volt DC |
| Power consumption Amps | 850 |
| Connector Type | BNC Connector |
| Signal type | Hybrid HD-SDI and BNC |
| Warranty | 1 Year |
| Return period | 30 days |
| Exchange period | 30 days |
