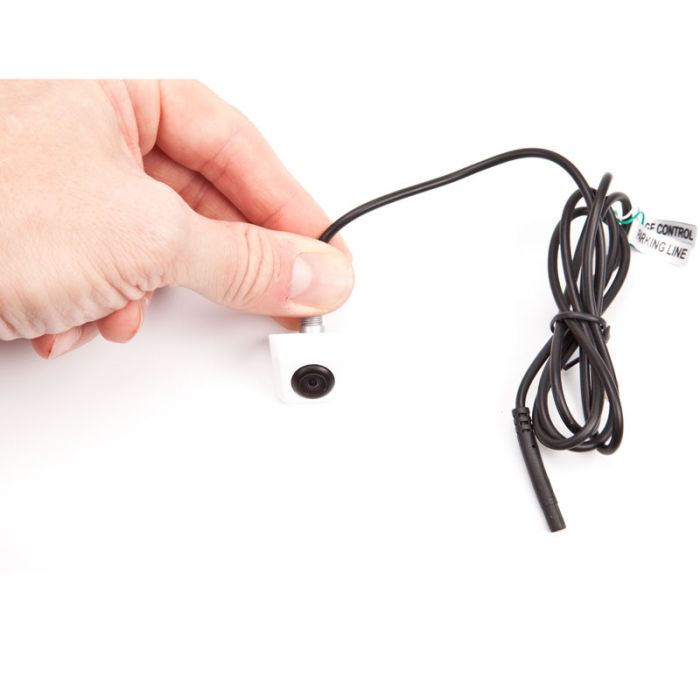

Safesight TOP-SS-421MW Micro Reverse Backup Camera for lip mounting - White

Safesight TOP-SS-421MW Micro Reverse Backup Camera for lip mounting - White

Safesight TOP-SS-421MW Micro Reverse Backup Camera - Size

More Views

Free Shipping on orders $50+

Overall Rating 0 (Based on 0 reviews)

Safesight TOP-SS-421MW Product Highlights

  • Flush Mount Camera
  • Cmos Lens
  • 170 Degree Wide Angle
  • Very Small
  • White, also available in black
  • Can be used as a front camera
  • Selectable parking grid lines
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together


Unit includes: Reverse back up camera, Wiring harness, Retaining nut, and Instruction manual

Beautifully small

Excellent picture quality can come from a very small camera, this micro camera can be mounted on any overhang; near the license plate, on a front bumper lip, even the rear view mirrors, you can mount this camera anywhere.

Safesight reputation

Safesight is the most respected brand in car back up camera systems. The TOP-SS-421MW back up camera offers Safesight quality in a package that is very versatile

Automobile finish

The TOP-SS-421MW is painted in a glossy white finish that matches most manufacturers white paint. Add an aftermarket backup camera that looks like it came from the factory.

Safesight TOP-SS-421MBW Micro Reverse Backup Camera for lip mounting features:
  • Also available in black, see part number TOP-SS-421MB
  • 1/4" color CMOS sensor
  • IP67 rated
  • 170 degree wide viewing angle
  • 2.7mm lense
  • Partial flush mount so camera has minimal protrusion, great for use near license plate area
  • Scanning system: 2:1 interface
  • Resolution 420 TV lines
  • AGC: auto White balance: auto
  • Electronic shutter: 1/60 - 1/15,000 second
  • Current consumption: Max 150mA. Power supply 12V DC
  • Lens f=1.8mm / F=2.0 170 degree view angle
  • .1 Lux light sensitivity
  • Dimensions of camera: .91" (W) x 1.26" (D) x 1.07" (H)
  • One year warranty parts & labor
  • 2 cut-able wires allow you to change between reverse and non reverse and guide lines and no guide lines
  • White color housing

Technical Specifications

Manufacturer Safesight
Part Number TOP-SS-421MW
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
License Plate Camera Type No
Camera sensor diameter 2.8mm
Viewing Angle 170 degrees
Wireless Transmission No
Waterproof ingress protection IP66 - Dust; String Water Jets/Waves
Reverse Image Yes - Reverse Image
Parking grid lines Yes
Infrared Illumination No
Built in Microphone No
Connector Type RCA Cable
Modulation NTSC only
Operation Voltage 12 - 15 Volt DC
Battery Powered No
Cigarette Lighter Cord Included No
Color Black
Overall Height 0 Inches
Overall Length 0 Inches
Overall Width 0 Inches
Warranty 1 Year
UPC Code No
