Clarus TOP-SS-LCD35WR 3.5" Wide screen LCD Back lite LCD Module
Clarus TOP-SS-LCD35WR 3.5" Wide screen LCD Back lite LCD Module
Key Features
3.5 inch Super thin LCD module Dual RCA Composite video inputs Auto power on with video signal, automatically selects video input, video 1 is priority 3 button control board for brightness, color, tint, and image rotation

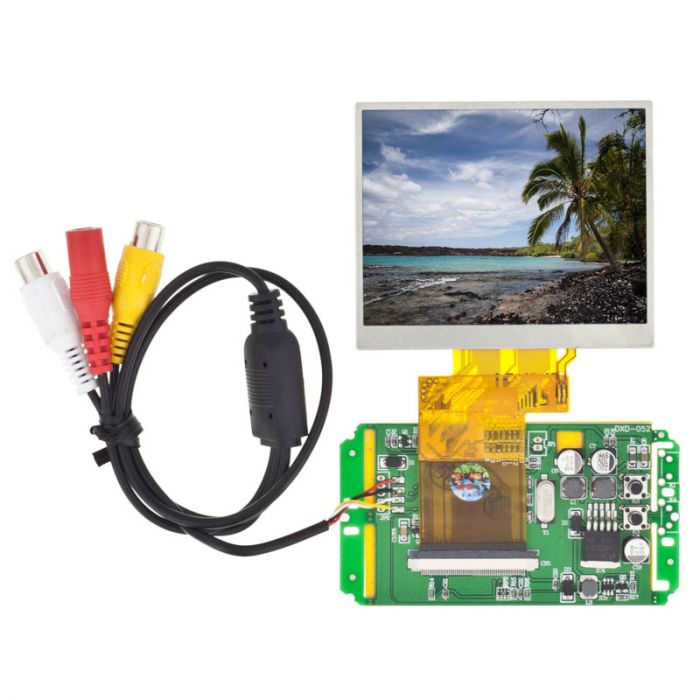

Unit includes: 3.5 inch raw module and Wiring Harness
Quality Mobile Video Clarus TOP-SS-LCD35WR 3.5" Wide screen LCD Back lite LCD Module features:
3.5 inch Super thin LCD module
LED back lite for minimal power consumption and uniform back light intensity
Operates on 9 - 12 volts
Dual RCA Composite video inputs
Auto power on with video signal, automatically selects video input, video 1 is priority
Image flip function allows the monitor to reverse an image, or rotate the image so that the display can be placed upside down
OSD - on screen display for control of color, tint, contrast
Brightness button allows you to change LCD brightness
4:3 Aspect ratio
Resolution: 480 (H) x 234 (V)
Power Source: DC 12V @ 120mA
Push button on and off switch
Brightness: 250 NIT
LCD Dimensions: 2-1/2" (H) x 3" (W) x 1/8" (D)
Control Board Dimensions: 1-7/8" (H) x 3-1/2" (W) x 1/4" (D)
More Information
Manufacturer
Clarus
Part Number
TOP-SS-LCD35WR
LCD Screen Size
3 inch - 4 inch
Native Screen Resolution
480 x 234
Widescreen Display
4:3 Normal Aspect Ratio
LCD back light type
LED
LCD Screen Brightness
250 Nit
Modulation
NTSC and PAL
Audio Video inputs
2 Video Inputs
Composite video input
Yes
Trigger wire
Auto video sense trigger
Operation Voltage
12-15 Volt DC
Warranty
1 Year
California Proposition 65
Warning: This product can expose you to
chemicals including lead, which is [are] known to
the State of California to cause cancer or birth
defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
Return period
30 days
Exchange period
30 days
