Safesight TOP-VS2 2-Camera Video Input Switcher
$42.99
In stock
Only 1 left
SKU
TOP-VS2
Expert Knowledge
Talk to a specialist
- 2-Way audio video switcher for displaying two audio video source on a single screen via a toggle switch
- Module can be triggered by either a positive or negative trigger

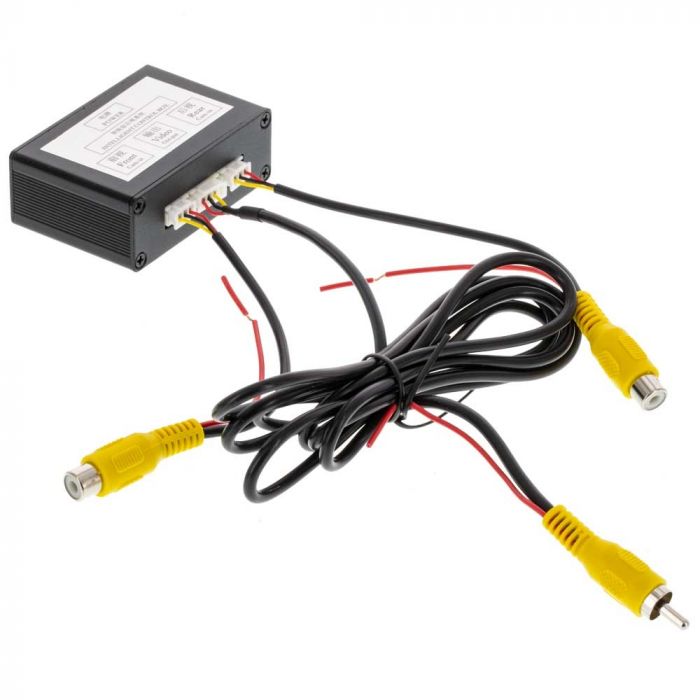

Unit includes: 2-way video switcher, (2) Camera input cables, Push button switch and Instruction manual
Safesight TOP-VS2 2-Camera Video Input Switcher
Safesight TOP-VS2 2-Camera Video Input Switcher
-
Features:
- 2-Camera video switcher for displaying either one of two video sources on a single screen via a push button switch
- Cannot be used to display two sources at the same time
- 2-Camera inputs with camera power outputs
- Auto default to video 1 input when no trigger is present
- Module can be triggered by positive reverse trigger
- Can be used for back up camera or video source switching
- Inputs and Outputs:
- 2 - Video inputs
- 1 - Video outputs
- 2 - Camera power outputs
- 1 - Positive trigger input (Rear camera)
- Trigger configuration:
- Blue wire - 12 volts positive trigger
| Manufacturer | Safesight |
|---|---|
| Part Number | TOP-VS2 |
| Audio Video inputs | 2 Video Inputs |
| HDMI input | No |
| USB input | No |
| Warranty | 90 days |
| Audio Video Outputs | 1 Video output |
| TV Tuner | No Tuner |
| Wireless Remote Control | Wired Remote |
| Item Returns | This item can be returned |
