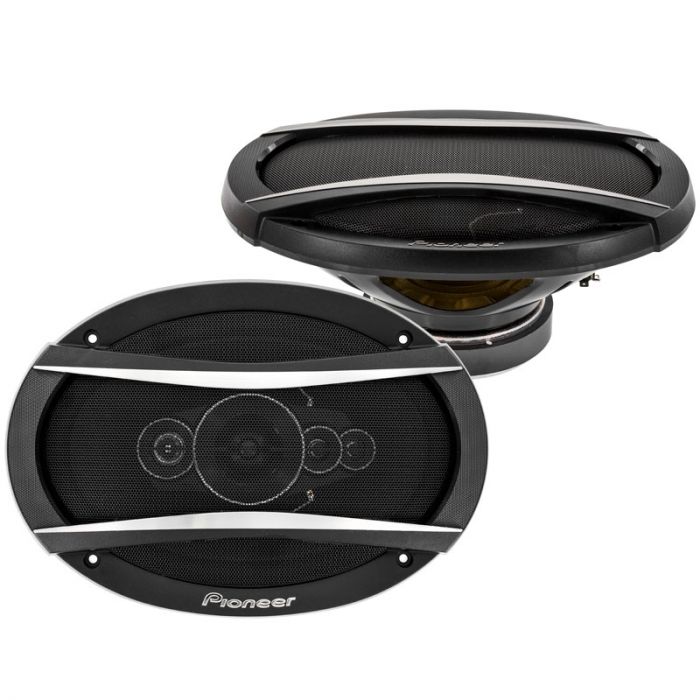

Pioneer TS-A6996R 5-Way 6 x 9 inch car speakers

Pioneer TS-A6996R 5-Way 6 x 9 inch car speakers

Pioneer TS-A6996R 5-Way 6 x 9 inch speakers - Main

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pioneer TS-A6996R Product Highlights

  • 6" x 9" 5-way speaker pair
  • Multi-Layer Mica Matrix Cone for loud and clear sound
  • 650 Watts Max Power (100 Watts Nominal)
  • Pi Dome Tweeter with Wave Guide for Increased Sensitivity
  • Cooling basket with air vent for increased cooling to process improved power handling
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Buy everything you need as a package and SAVE!


Unit includes: Pair of 6 x 9" speakers, Pair of speaker grills, Mounting Screws and Instruction manual

    Next generation
  • To improve on an already great design is no easy feat. However Pioneer has improved on their legendary TS-A series speakers with improved sound quality while maintaining their exceptional price. The new an improved design brings more life to the bass with its improved dynamic range.

  • Tweeters and Midrange
  • A-Series speakers have a smooth off-axis response, they feature a soft dome tweeter that utilizes a wave guide. This wave guide design ensures mid and high frequencies that emit in a uniform and wide dispersion patter. This results in a smooth response both on and off axis. This remains the same as last year. New for this year, Pioneer has an improved fibre cone that is the best in rigidity while remaining light for quick mid-bass. The tweeter in these next generation TS-A series speakers has been improved and provides the best sound under all conditions, regardless of listening position or car. The largest improvement has been the lowering of the crossover frequency creating a wider response and more accurate and fluid vocals.

  • Oversized Cone
  • The cone is 14% larger that cones on conventional 6 x 9 inch speakers yet they will fit in the exact same cutout. The result is improved and more powerful mid-bass with added low extension.
Pioneer TS-A6996R 6 x 9 inch 5-way car speakers
  • Oversized 6" x 9" Woofer with strontium ferrite magnet for precision bass
  • Integrated 5-Way design with super and ultra tweeters
  • Multi-Layer Mica Matrix woofer cone for optimum sound reproduction and responsiveness
  • PI dome tweeters with Strontium Ferrite magnets provide excellent vocals
  • Lightweight elastic polymer surround for high sensitivity
  • Heat-resistant voice coil wire for heat dissipation and durability to withstand high input power
  • Smooth off-axis response
  • Passive Crossover Network
  • Cooling basket with air vent for increased cooling to process improved power handling
  • Spider design incorporates the same material used in the PRS series of high-end component speakers for stiffer suspension and more accurate response

  • Power Handling Max
  • Max power: 650 watts

  • Power Handling RMS
  • RMS Power: 100 watts

  • Quick Specs
  • Frequency response: 28 Hz to 38 kHz
  • Sensitivity: 93 dB
  • Impedance: 4 ohms
  • Type: 5-Way
  • Crossover frequency: 2.6 KHz

  • Dimensions
  • Speaker Cut-out Size: 8-3/4" x 6"
  • Mounting Depth: 3-3/8"

Technical Specifications

Manufacturer Pioneer
Part Number TS-A6996R
Speaker Size 6 x 9 inch
Speaker system type 5 - way
Frequency Response 28 Hz - 38 kHz
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
Power Handling RMS 100 Watts
Power Handling Peak 650 Watts
Sensitivity 93 dB
Xmax (millimeters) No
Mounting Depth $2.63
Color Black
Warranty 1 Year
UPC Code 884938311694
