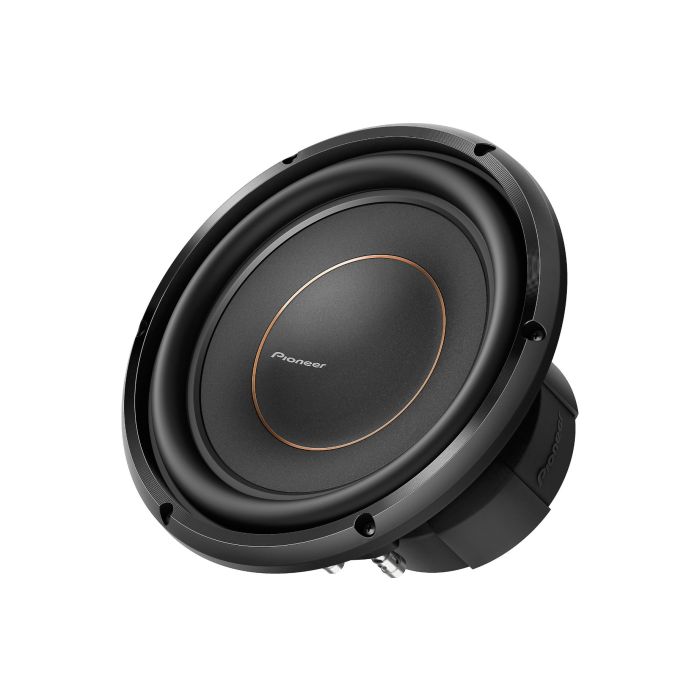

Pioneer TS-D10D4 10" subwoofer with dual 4-ohm voice coils

$159.99
In stock
Only 1 left
SKU
TS-D10D4

Key Features

  • 10" Subwoofer with dual 4 Ohm voice-coils
  • Aramid Fiber Interlaced Injection Molded Polypropylene cone woofer
  • Butyl Rubber Surround for Strength and Linearity During High Excursion
  • Oversized 56.4 oz Double Stacked Magnet and Vented Pole Yoke
Inside the box:
  • 10 inch subwoofer driver
  • Trim ring
  • Six 1-1/8" Screws
  • Instruction manual
  • Adhesive backed foam gasket
Pioneer TS-D10D4 10" subwoofer with dual 4-ohm voice coils
    Features:
  • 10" Subwoofer with dual 4 Ohm voice-coils
  • Aramid Fiber Interlaced Injection Molded Polypropylene cone woofer which adds rigidity and accurate response
  • Butyl Rubber Surround for Strength and Linearity During High Excursion
  • Oversized 56.4 oz Double Stacked Magnet and Vented Pole Yoke for Increased Power Handling
  • Oversized 4-layer voice coil
  • Stamped metal basket
  • Sold individually
    Power Handling Max:
  • 1500 Watt maximum power handling
    Power Handling RMS:
  • 500 Watt nominal continuous power handling RMS
    Quick Specs:
  • Impedance: 4 Ohm per coil
  • Frequency response: 20 Hz - 6600 Hz
  • Sensitivity: 76 dB @ 1Watt / 1meter
    Dimensions:
  • Mounting depth: 5-1/2 inches
  • Cut-out diameter: 9 inches
More Information
Manufacturer Pioneer
Part Number TS-D10D4
Driver Size 10 inch
Subwoofer Shape Round
Voice coils Dual voice coil
Impedance (per voice coil) 4 ohm
FS 41
QES .85
QMS 8.41
QTS .77
RE 3.6
VAS 22.3 L
Xmax (millimeters) 10.8
Sensitivity 76 dB
Frequency Response 20 Hz - 6.6 KHz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 301 - 500 Watts
Power Handling Peak 1500 Watts
Shallow Mount Subwoofer No
Mounting Depth 5.50 Inches
Cutout Dimensions 9.00 Inches
Sealed Enclosure Recommended Size .7 ft3
Ported Enclosure Recommended Size .7 ft3
Color Black
Warranty 1 Year
Sold as Individually
UPC Code 884938374361
Return period 30 days
Exchange period 30 days
