DISCONTINUED - Pioneer TS-SW3001S4 12" Shallow Subwoofer With 1500 Watts Max Power - 4ohm

DISCONTINUED - Pioneer TS-SW3001S4 12" Shallow Subwoofer With 1500 Watts Max Power - 4ohm

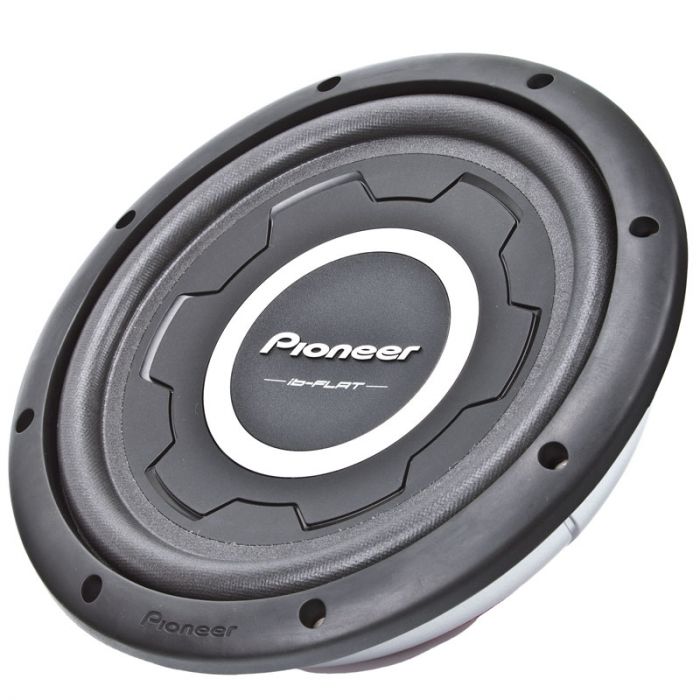

Pioneer TS-SW3001S4 12" Shallow Subwoofer With 1500 Watts Max Power - Front View

More Views

Pioneer
Ships Free!

Overall Rating 0 (Based on 0 reviews)

Pioneer TSSW3001S4 Product Highlights

  • 12" Subwoofer with single 4 ohm voicecoil
  • 400 Watt nominal continuous power handling RMS
  • Sensitivity: 93 dB @ 1Watt / 1meter
  • Mounting depth: 3 1/4"
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist

Frequently Bought Together

Overview

Unit includes: Shallow mount subwoofer and Instruction manual

Pioneer TS-SW3001S4 12" Shallow Subwoofer With 1500 Watts Max Power features:
  • 12" Subwoofer with single 4 ohm voicecoil
  • 1,500 Watt maximum power handling
  • 400 Watt nominal continuous power handling RMS
  • 6-layer aluminum voice coil for high temperature and power handling
  • Impedance: 4Ω
  • Strontium magnet construction
  • Cast aluminum basket
  • Vented pole piece
  • Silver spring compression terminal
  • 12" interlaced basalt/carbon fiber reinforced IMPP cone woofer
  • 3-layer fiber woven radial surround
  • Frequency response: 20 Hz–230 Hz
  • Sensitivity: 93 dB @ 1Watt / 1meter
  • Mounting depth: 3 1/4"
  • Cutout diameter: 10-7/8"

Technical Specifications

Manufacturer Pioneer
Part Number TSSW3001S4
Driver Size 12 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS No
QES No
QMS No
QTS No
RE No
VAS No
Xmax (millimeters) 8.4 mm
Sensitivity 93dB
Frequency Response 20 - 230 Hz
Sub enclosure type Ported / Vented, Sealed
Power Handling RMS 301 - 500 watts
Power Handling Peak 1500 watts
Shallow Mount Subwoofer Yes
Mounting Depth $3.25
Cutout Dimensions $11.00
Sealed Enclosure Recommended Size 0.7 cubic feet
Ported Enclosure Recommended Size 0.7 cubic feet
Color Black
Warranty 1 Year
UPC Code 012562945804
