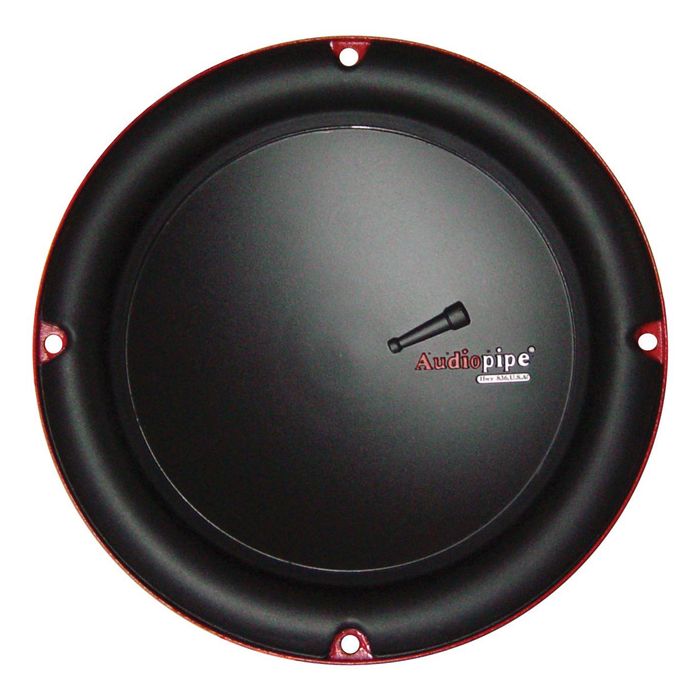

Audiopipe TSCAR6 6-1/2 inch Subwoofer - Single 4 ohm voice coil

$28.99
In stock
SKU
TSCAR6

Key Features

  • 6-1/2 inch Subwoofer with 4 ohm Single voice coil
  • Oversized 25 ounce magnet and motor structure for extreme power handling and bass output
  • 1.5 inch 4-layer single voice coil with large gauge wire for high temperature and power handling
  • 150 Watts maximum power handling
Unit Includes: 6-1/2 inch Single 4 ohm voice coil subwoofer, Mounting Hardware, and Instruction manual

Audiopipe TSCAR6 6-1/2 inch Subwoofer - Single 4 ohm voice coil
    Features:
  • 6-1/2 inch Subwoofer with single 4 ohm voicecoil
  • Oversized 25 ounce magnet and motor structure for extreme power handling and output
  • Injection-molded polypropylene cone
  • Large Butyl Rubber Surround
  • Woven high strength tinsel leads
  • Perimeter venting for heat management
  • Powder coated black stamped steel basket
  • Multi-connect speaker terminals
  • High-temperature 4 Layer voice coil
  • Instruction Manual - Instruction Manual
  • Sold Individually
    Power Handling Max:
  • 150 Watts maximum power handling
    Power Handling RMS:
  • Up to 75 watts nominal continuous power handling RMS
    Quick Specs:
  • Impedance: 4 ohm Ohm per coil
  • Frequency response: 60 Hz - 3000 Hz
  • Sensitivity: 86 dB @ 1Watt / 1meter
    Dimensions:

  • Mounting Depth: 3.03 inches
  • Mounting Diameter: 5.625 inches
More Information
Manufacturer Audiopipe
Part Number TSCAR6
Driver Size 6-1/2 inch
Subwoofer Shape Round
Voice coils Single voice coil
Impedance (per voice coil) 4 ohm
FS 63 Hz
QES 0.76
QMS 1.2
QTS 0.47
RE 3.6
VAS 0
Xmax (millimeters) 2.0 mm
Sensitivity 86 dB
Frequency Response 60 Hz - 3000 Hz
Sub enclosure type Banpass, Ported / Vented, Sealed
Power Handling RMS 70 Watts
Power Handling Peak 150
Shallow Mount Subwoofer No
Mounting Depth 3.00 Inches
Cutout Dimensions 5.63 Inches
Sealed Enclosure Recommended Size 0.25 ft3
Ported Enclosure Recommended Size 0.75 ft3
Color Black
Warranty 1 Year
Sold as Individually
UPC Code 784644227107
Return period 30 days
Exchange period 30 days
