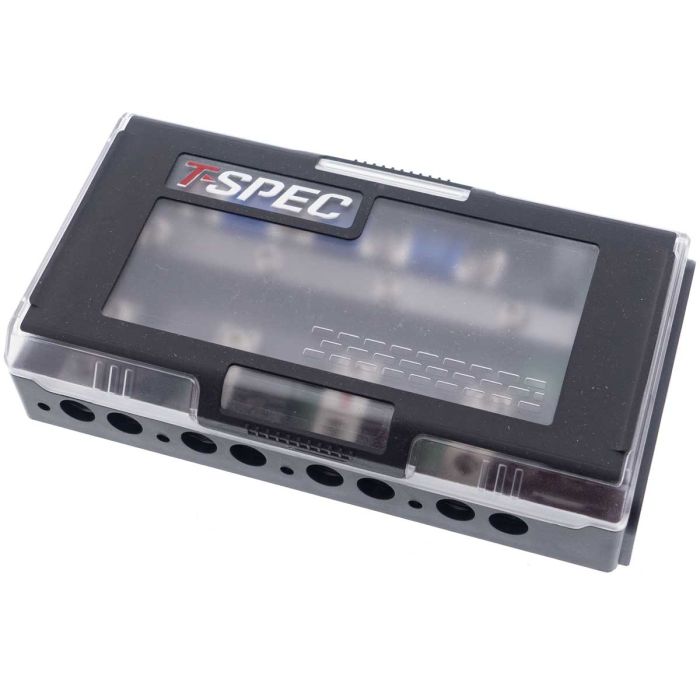

T-Spec VBDB4 V12 Series 4 Position MANL Fused Distribution Block Dual Input 4-Way Power and Ground
T-Spec VBDB4 V12 Series 4 Position MANL Fused Distribution Block Dual Input 4-Way Power and Ground
Key Features
Properly fuse up to (4) amplifiers with a Mini-ANL fuses Solid brass construction ensuring maximum conductivity Blown Fuse Indicator (BFI) LED for each circuit Dual 0/1 AWG positive in Dual 0/1 AWG negative in (4) Mated 4 AWG output sets with remote distribution
Unit includes: Quad Fused Distribution Block, Rubber grommets
T-Spec VBDB4 V12 Series 4 Position MANL Fused Distribution Block Dual Input 4-Way Power and Ground
Features:
Properly fuse up to (4) amplifiers with a Mini-ANL fuse for proper protection in multi-amplifier audio systems
Ensures maximum current flow to your sensitive amplifiers and hassle-free installation
Satin gunmetal finished 5mm brass bus bars for power and ground distribution
Anti-short sub-cover to isolate the ground bar and terminals
Built-in amp turn on relay for boosting the current of the amplifier turn-on wire, distributing it across all 4 outputs
(4) Independently MANL fused positive circuits
Blown Fuse Indicator (BFI) LED for each circuit
(3) Rapid replacement spare MANL fuse locations built inside the case
T20 Torx fuse hold down screws
Gate Lock technology
Small footprint with compact brass design
Impact-resistant polycarbonate cover
TPE wrapped soft-touch cover with modern aesthetics
Water-resistant housing
Inputs and Outputs:
Dual 0/1 AWG positive in
Dual 0/1 AWG negative in
(4) Mated 4 AWG output sets with remote distribution
Dimensions:
7-1/4" (W) x 4" (L) x 1-1/2" (H)
More Information
Manufacturer
T-Spec by Metra
Part Number
VBDB4
Fuse type
Mini ANL
Fuse rating
Assorted
Distribution type
Power and Ground
Inputs
2-input
Input wire gauge
0 gauge
Outputs
4-output
Output gauge
4 Gauge
Warranty
1 Year
California Proposition 65
Warning: This product can expose you to
chemicals including lead, which is [are] known to
the State of California to cause cancer or birth
defects or other reproductive harm. For more
information go to www.P65Warnings.ca.gov.
UPC Code
086429411955
Return period
30 days
Exchange period
30 days
