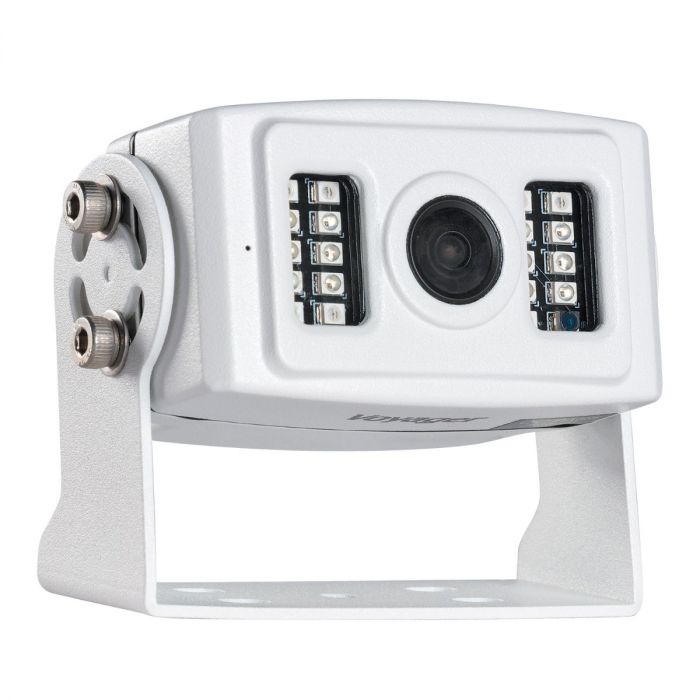

Voyager VCMS20W 1/4" CMOSD Surface Mount Reverse Back up camera - White

$209.99
In stock
SKU
VCMS20W

Key Features

  • Designed to work with Voyager camera systems
  • Surface mounted camera for mounting on an overhang or the back of a RV or commercial vehicle
  • High sensitive 1/3" HD color CMOS image sensor
  • 19 - Built in LED's for night vision, see in complete darkness
  • Built in microphone so you can hear everything behind you
  • White aluminum housing that matches nearly every vehicle color
Unit includes: Car camera, Stand mount, Mounting hardware, Bracket hardware, and Instruction manual

Voyager VCMS20W 1/4" CMOSD Surface Mount Reverse Back up camera - White
    Features:
  • Surface mounted camera for mounting on an overhang or the back of a RV or commercial vehicle
  • High sensitive 1/3" HD color CMOS image sensor for excellent color and night capabilities
  • 19 - Built in LED's for night vision, see in complete darkness
  • Built in microphone so you can hear everything behind you
  • White aluminum housing that matches nearly every vehicle color
  • 75° vertical angle adjustment with 4 retaining screws so camera cannot vibrate free
  • Selectable between front or reverse image
  • Pixel resolution: 800 x 533
  • Corrosion resistant (ASTM B117)
  • Mini Illumination: .05 Lux
  • 145° diagonal, 109° horizontal, 93° vertical viewing angle
  • Waterproof IP69K
  • 9 - 16 volt operation
  • Camera dimensions: 2-3/4" (Wide) x 1-7/8" (Deep) x 1-5/8" (H)
More Information
Manufacturer Voyager
Part Number VCMS20W
Camera Sensor type CMOS
Back up camera type Surface Mount Camera
Camera diameter 1/4"
Viewing Angle 140 degrees
Wireless Transmission Wired connection
Waterproof ingress protection IP69K - Dust; High Pressure and Temperature rating
Reverse Image Selectable
Parking grid lines No
Infrared Illumination Yes
Built in Microphone Yes
Connector Type 4 Pin Connector
Modulation ATSC only
Operation Voltage 8-15 Volt DC
Battery Powered Hard wired
Color White
Overall Height 1.82 inches
Overall Length 1.61 inches
Overall Width 2.75 inches
Warranty 1 Year
Return period 30 days
Exchange period 30 days
Write Your Own Review
You're reviewing:Voyager VCMS20W 1/4" CMOSD Surface Mount Reverse Back up camera - White
Your Rating
Customer Questions
How do I add a cameras or a multi-camera system to my factory radio display?

This can be done by using a screen interface or add-a-camera harness.
