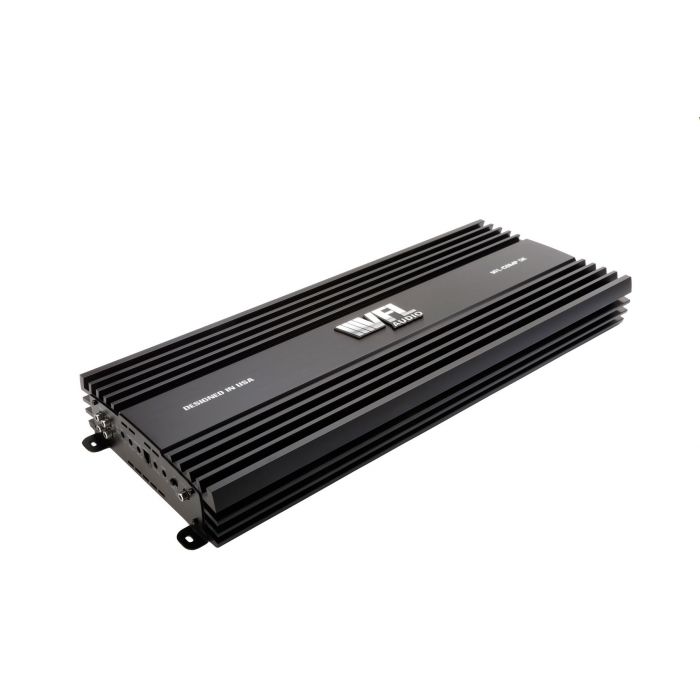

VFL Audio VFLCOMP5K 5000 Watt Mono Class-D Competition Amplifier
$949.99
In stock
SKU
VFLCOMP5K
Expert Knowledge
Talk to a specialist
- 5000 Watt Mono Class-D Competition Amplifier
- Stable down to 1-ohm
- 5000 watts RMS x 1 Channel (1 ohm)
- 2500 watts RMS x 1 Channel (2 ohms)
- 1250 watts RMS x 1 Channel (4 ohms)
- Strap-able for ridiculous power output
Unit includes: 1-Channel power amplifier, Mounting hardware, Wired bass controller, 100 amp fuse and fuse holder and Instruction manual
VFL Audio VFLCOMP5K 5000 Watt Mono Class-D Competition Amplifier
VFL Audio VFLCOMP5K 5000 Watt Mono Class-D Competition Amplifier
- Features:
- 5000 Watts Max Power
- Stable down to 1-ohm
- Pulse Width Modulated MOSFET Power supply
- Double side PCB with high quality SMD components
- Oversized toroids Power supply for excellent current and voltage control even under the highest demands
- Amplifier is strap-able so that you can connect and bridge with another for additional power output (2 ohm - 4 ohm load only)
- Nickel plated terminals for all connections
- Accepts up to 16 volts DC input for maximum sound output
- Frequency Response: 20Hz to 350 Hz
- Total Harmonic Distortion (4 Ω): < 0.15%
- Signal-to-Noise Ratio (IHF-A Weighted, at 40 Hz): >70dB
- Minimum Dual 0 Gauge power wire with 800 amp fuse
- Protection circuits
- 3-Way Protection circuit
- Internal temperature and automatically lowers input level to prevent heat damage
- Short circuit protection prevent damage when speaker leads are shorted
- Overload protection prevent damage from low impedance or blown woofers
- Internal crossovers
- Variable Low Pass filter: 35Hz - 250Hz at 24dB per octave
- Variable Subsonic High Pass filter: 10Hz - 50Hz at 24dB per octave
- Audio controls
- Variable phase control: 0° - 180° phase control
- Variable Bass boost controls: 0 - +9dB at 45Hz
- Inputs and outputs
- 1 - 2 channel RCA input accepts up to 6 volt input signals
- 1 - 2 channel RCA output
- 1 - Strap-able data connection
- 1 - Remote bass control input
-
RMS Power Rating:
- 4 ohms: 1250 watts x 1 channels
- 2 ohms: 2500 watts x 1 channels
- 1 ohms: 5000 watts x 1 channel
-
Dimensions:
- Dimensions: 30-3/4" (L) x 2-1/4" (H) x 9-1/2" (D)
