Cartizan VI-BM-CIC Apple Carplay and Wired Android Auto Universal Adapter with Bluetooth, USB and Video Input

Description

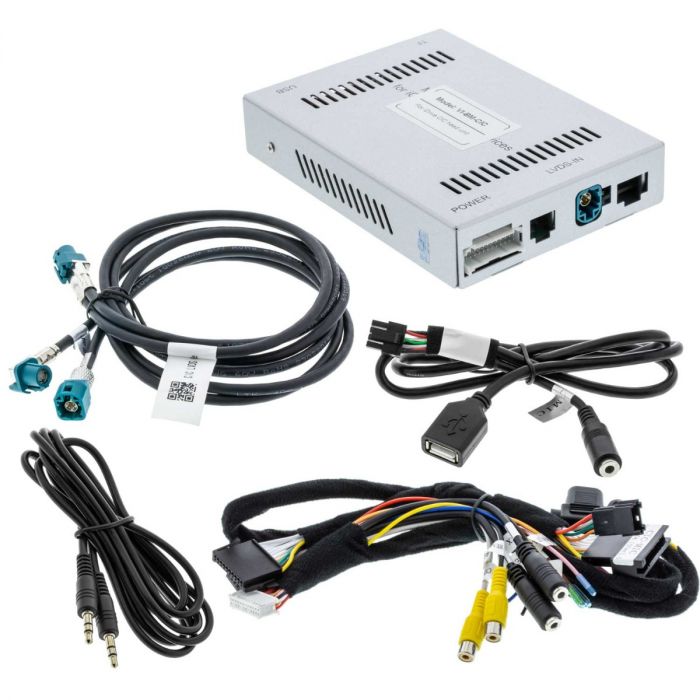

Unit includes: Control box, Plug-and-Play Power Harness, LVDS-CIC Cable Harness, Plug-and-Play aux audio cable, USB Harness, and 3.5mm extension cable

Cartizan VI-BM-CIC Apple Carplay and Wired Android Auto Universal Adapter with Bluetooth, USB and Video Input

Features:

Plug-and-Play interface for CIC BMW Navigation systems (iDrive CIC head unit with 6.5 / 8.8 / 10.25 inch OEM monitor)
Operated by iDrive & steering wheel buttons
Add Wired Android Auto or Apple Carplay to any Aftermarket Car Stereo (will not work for factory displays without a navigation screen interface sold separately)
Wired Phone mirroring for both iOS and Android
Plug & Play with both iOS and Android phone
Plug-and-Play Power Harness
Supports both OEM & add-on microphone
Features (2) RCA Video inputs for front and rear camera
HD LVDS signal output to factory screen
Bluetooth hands free calling and music streaming
USB thumb drive playback for music (MP3) and video files (MP4, 720p, 1080p)

Inputs/Outputs:

2 - RCA Video Inputs (Front and Rear cameras)
1 - USB Inputs (Smartphone Connection and Thumb Drive)
1 - 4 pin LVDS video output
1 - Camera Input
1 - Microphone Input
1 - 3.5mm Audio Input

Specifications:

CVBS Output Resolution: 720x480
LVDS Output Resolution: 1440x480 (default)
Power Consumption: 5W
Input Voltage: 9-16V
Working Temperature: -20°C~75°C
Main Unit Dimensions: 141x101x26mm

Vehicle compatibility:

09/2008 - 03/2014 1-Series E81/E82/E87/E88
09/2011 - 03/2013 1 Series (F20 / F21)
09/2008 - 10/2013 3 Series (E90 / E91 / E92 / E93)
02/2012 - 11/2012 3 Series (F30 / F31 / F34 / F80)
11/2008 - 05/2010 5 Series (E60 / E61)
10/2009 - 07/2012 5 Series (F07)
03/2010 - 09/2012 5 Series F10)
09/2010 - 09/2012 5 Series (F11)
11/2008 - 07/2010 6 Series (E63 / E64)
11/2008 - 07/2010 6 Series (F06)
12/2010 - 03/2013 6 Series (F12 / F13)
11/2008 - 07/2013 7 Series (F01 / F02 / F03)
11/2008 - 06/2015 7 Series (F04)
10/2009 - 06/2015 X1 (E84)
10/2010 - 04/2013 X3 (F25)
10/2009 - 06/2013 X5 (E70)
10/2009 - 08/2014 X6 (E71)
01/2009 - Current Z4 (E89)

Specifications

More Information
Manufacturer	Quality Mobile Video
Part Number	VI-BM-CIC
VGA input	No - VGA input
HDMI input	No
Audio Video inputs	2 Video Inputs
Back up camera input	Yes
Front camera input	Yes
Auto on/off	Yes
Smartphone Technology	Apple CarPlay and Android Auto
USB input	Yes
Warranty	1 Year
Return period	30 days
Exchange period	30 days
