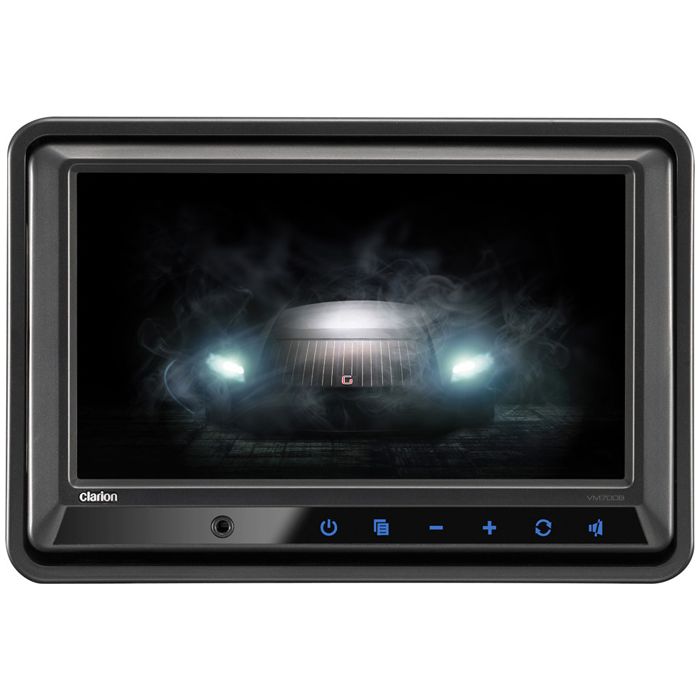

Clarion VM700B 7 Inch Digital TFT LCD Widescreen Headrest Monitor

Clarion VM700B 7 Inch Digital TFT LCD Widescreen Headrest Monitor

Clarion VM700B 7 Inch Digital TFT LCD Widescreen Headrest Monitor

More Views

Ships Free!

Overall Rating 0 (Based on 0 reviews)

Clarion VM700B Product Highlights

Clarion VM700B 7 Inch Digital TFT LCD Widescreen Headrest Monitor
Expert Advice is a phone call away

Expert Knowledge

Talk to a specialist


Unit includes: Monitor, Remote Control and Mounting Hardware

Clarion VM700B 7 Inch Digital TFT LCD Widescreen Headrest Monitor
  • Features
  • Turn Your Back Seat into a First Class Experience. Display the video playback or games from a connected source, with a high-quality 7” screen. Show a movie, and make your next drive more like flying first class for your back seat passengers.
  • 16:9/4:3 Adjustable Screen Format. You can switch between widescreen 16:9 and traditional 4:3 aspect ratios. So, whether you are watching movie DVDs that are usually in the 16:9 widescreen format, or recordings of old TV shows or camcorder footage that may be in 4:3, you are assured of a natural looking image that doesn’t look squeezed or stretched.
  • The infrared remote control receiver output allows integration with selected Clarion DVD players.
  • The monitor automatically switches to either NTSC or PAL video formats. (NTSC is the standard of North American video format.)
  • Two A/V Inputs - With two A/V inputs, you can enjoy programming from a source unit and additional device, like a video game system, DVD player, etc.
  • 3.5mm Mini Jack on Front Panel - A mini-jack connection on the front of the unit allows for your favorite Headphones to be connected.
  • Designed for Superior Usability - Most buttons and switches show icons to allow for quick and intuitive operation. The flat overall design of the unit not only makes the unit look smooth and clean, it also makes the monitor safer and more comfortable to use. Installation is also a snap, and an easy-fit mounting bezel is included.
  • Easy-fit mounting bezel for headrest installation included

  • Specifications
  • Power requirements : 12V DC (10.8V - 15.6V)
  • Operating current : <1A (Typical)
  • Operating temperature : +14°F to +140°F (-10°C to +60°C)
  • Storage temperature : -4°F to +158°F (-20°C to +70°C)
  • Dimensions: 7.5” (W) × 5.12” (H) × 1.38” (D)
  • 190mm x 130mm x 35mm
  • Display type : Color TFT Active Matrix LCD
  • Screen size : 7” (178mm)
  • Pixels (W x H) : 1440 x 234
  • Display mode : 16:9 (Wide), 4:3 (Normal)
  • Video format : NTSC, PAL

  • Box Includes
  • 1 - VM700B LCD Monitor
  • 1 - 3M Signal Cable
  • 1 - IR Remote
  • 1 - Battery CR2025 for IR Remote
  • 4 - Screws M4x8
  • 1 - Metal Plate
  • 1 - Mounting Tray

  • VM700B Instruction Manual

Technical Specifications

Manufacturer Clarion
Part Number VM700B
LCD Screen Size 7 inch - 8 inch
Native Screen Resolution 1440 x 234
Widescreen Display 16:9 Widescreen Display
LCD back light type CCFL
LCD Screen Brightness 350 Nit
Swivel Screen No
Touchscreen No
Built-in DVD Player No
Dual DVD capable No
Last Position Memory N/A
Anti-Shock No
Headphone Transmitter Single channel
Headphone Jack Yes
Built in FM Modulator No
Built in Speakers No
HDMI input No
VGA input No - VGA input
Audio Video inputs 2 Audio Video Inputs
Audio Video Outputs No
Composite video input No
Front mounted auxiliary input No
USB input No
SD Card input No
Phone Mirroring N/A
Housing material Metal
Slide track on back No
Mounting thread for stand mount No
Stand Mount included No
Trigger wire No
Image Flip Function No
Quad Screen N/A
Cigarette Lighter Cord Included No
Operation Voltage No
Ac Adapter included No
Headrest Shroud included No
Headrest Type N/A
Zipper security cover No
Built in Game System Yes
Wireless Remote Control Yes
Monitor Color Black
Color Black
Warranty 1 Year
UPC Code 729218018644
