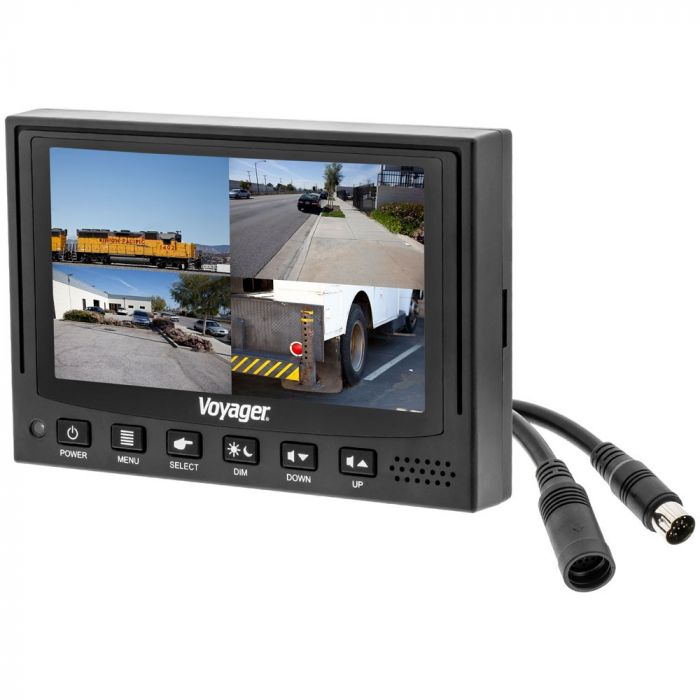

Voyager VOM74WP 7'' Quad Screen LCD Video Monitor - (4) Video inputs
Voyager VOM74WP 7'' Quad Screen LCD Video Monitor - (4) Video inputs
Key Features
Voyager Quad Touchscreen Backup Monitor 7 inch LCD Screen 4 Video Inputs with triggers for each Single image, split-screen, or QuadView view modes Compatible with Voyager Cameras Back-lit buttons for easy adjustments at night
Unit Includes: 7 inch LCD monitor, Wiring harness, Sun visor shroud and Instruction manual
Voyager VOM74WP 7'' Quad Screen LCD Video Monitor - (4) Video inputs
Features:
7" TFT/LCD Active Matrix Video Monitor
Quad screen display for viewing of four cameras simultaneously
Single image, split-screen, or QuadView view modes
16:9 Widescreen letterbox display
Super bright for day-time use with Day / Night brightness modes
Beautiful black housing perfect for mounting on dash of an RV
Monitor has multiple mounting patterns on back for use with Voyager and Panavise mounts 38mm (W) x 30mm (H) pattern - AMPS compatible
White Back-lit buttons for easy adjustments at night
High Resolution: 800 x 480 for excellent picture quality
4 triggered video inputs for auto switching as turn signals or reverse gear is entered
Touchscreen camera selection via front mounted buttons
Removable sun shade for extra bright ambient light situations
Compatible with Audiovox Voyager cameras
Trigger delay setup - specify the length the trigger signal must be present before switching, helps avoid needless camera switching
Camera naming function
Distance marker or parking grid can be enabled and disabled with adjustable lines via the OSD (On Screen Display)
OSD - (On Screen Display) allows for all adjustments
Viewing Angles: 60°(TOP), 70°(BOTTOM), 75°(LEFT, RIGHT) Inputs and Outputs
4 - 4 Pin S-Video type camera input connectors
1 - Channel 1 trigger: Blue wire
1 - Channel 2 trigger: Brown wire
1 - Channel 3 trigger: Green wire
1 - Channel 4 trigger: Orange wire
1 - 10 - 32Vdc positive input: Red wire
1 - Ground input: Black wire
1 - 2-way split screen trigger: Yellow wire
Specifications:
Operating Temperature: -20 degrees C ~ +70 degrees C
Storage Temperature -20 degrees C ~ +70 degrees C
Power Requirement: 10Vdc - 32Vdc
Power Consumption: 600 mA
LED backlit for 20,000 hour lifespan
Brightness: 450 NIT
Contrast Ratio: 500:1
Dimensions:
Monitor Only Dimensions: 7.7 W X 5.2 H X 1.2 D inches
Flange Dimensions: 9.5 W X 6.4 H X 2 D inches
NOTE: Monitor stand is not included. To purchase stand see Audiovox Voyager 72704 LCD monitor mounting stand
More Information
Manufacturer
Voyager
Part Number
VOM74WP
LCD Screen Size
7 inch - 8 inch
Native Screen Resolution
800 x 480
Widescreen Display
16:9 Widescreen Display
LCD back light type
LED
LCD Screen Brightness
450 Nit
Touchscreen
No
Modulation
NTSC and PAL
Headphone Transmitter
No
Headphone Jack
No
Built in Speakers
Yes
VGA input
No - VGA input
Audio Video inputs
4 Video Input
Front mounted auxiliary input
None
USB input
No
SD Card input
No
Built in Phone Mirroring
No
Housing material
Plastic
Slide track on back
No
Mounting thread for stand mount
Yes
Mount included
No
Trigger wire
Yes
Image Flip Function
Image rotate
Quad Screen
Yes
Cigarette Lighter Cord Included
No
Operation Voltage
12-32 Volt DC
Ac Adapter included
No
Headrest Shroud included
No
Built in Game System
No
Wireless Remote Control
No
Monitor Color
Black
Color
Black
Warranty
1 Year
UPC Code
681787022326
Return period
30 days
Exchange period
30 days
